ENGINE OVERHAUL GASKET KIT

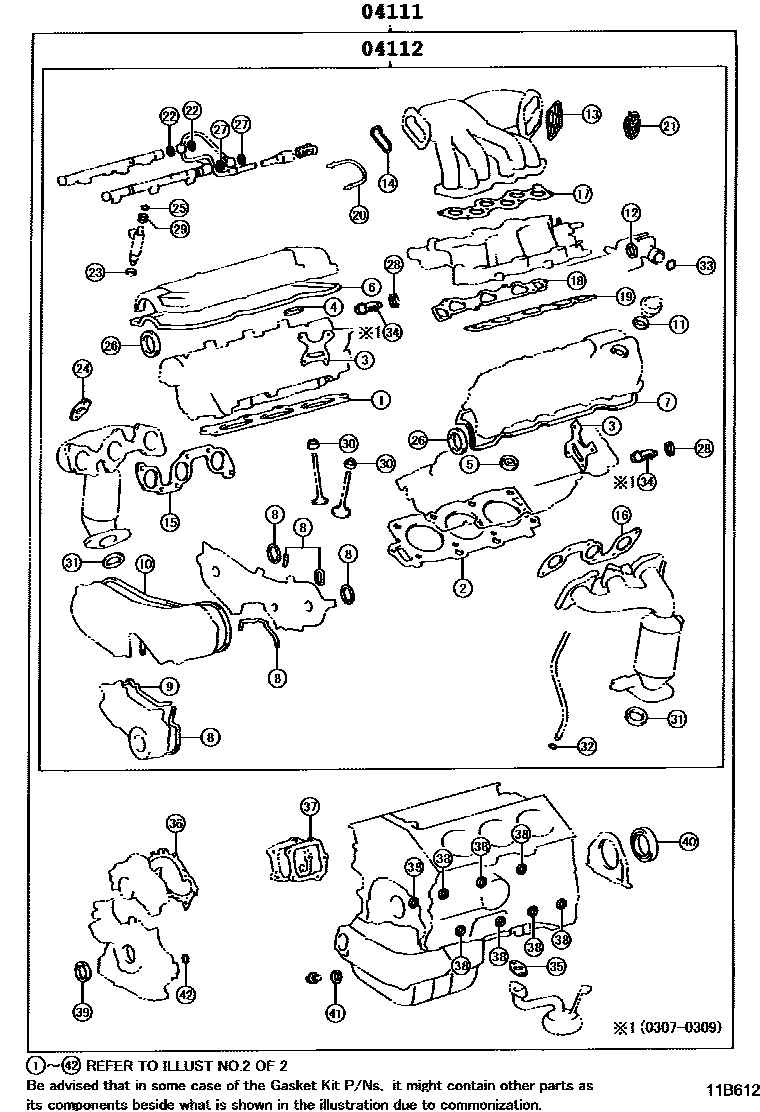

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-20180i200107-200304

main04111-20181i200304-200307

main04111-20210i200307-200309

main04111-20280i200309-200403

main04111-20282i200403-200406

main04111-20301i200406

04112GASKET KIT, ENGINE VALVE GRIND

main04112-20170i200107-200304

main04112-20171i200304-200307

main04112-20200i200307-200309

main04112-20270i200309-200403

main04112-20271i200403-200406

main04112-20291i200406

2 parts on this diagram · 4 diagrams in section
