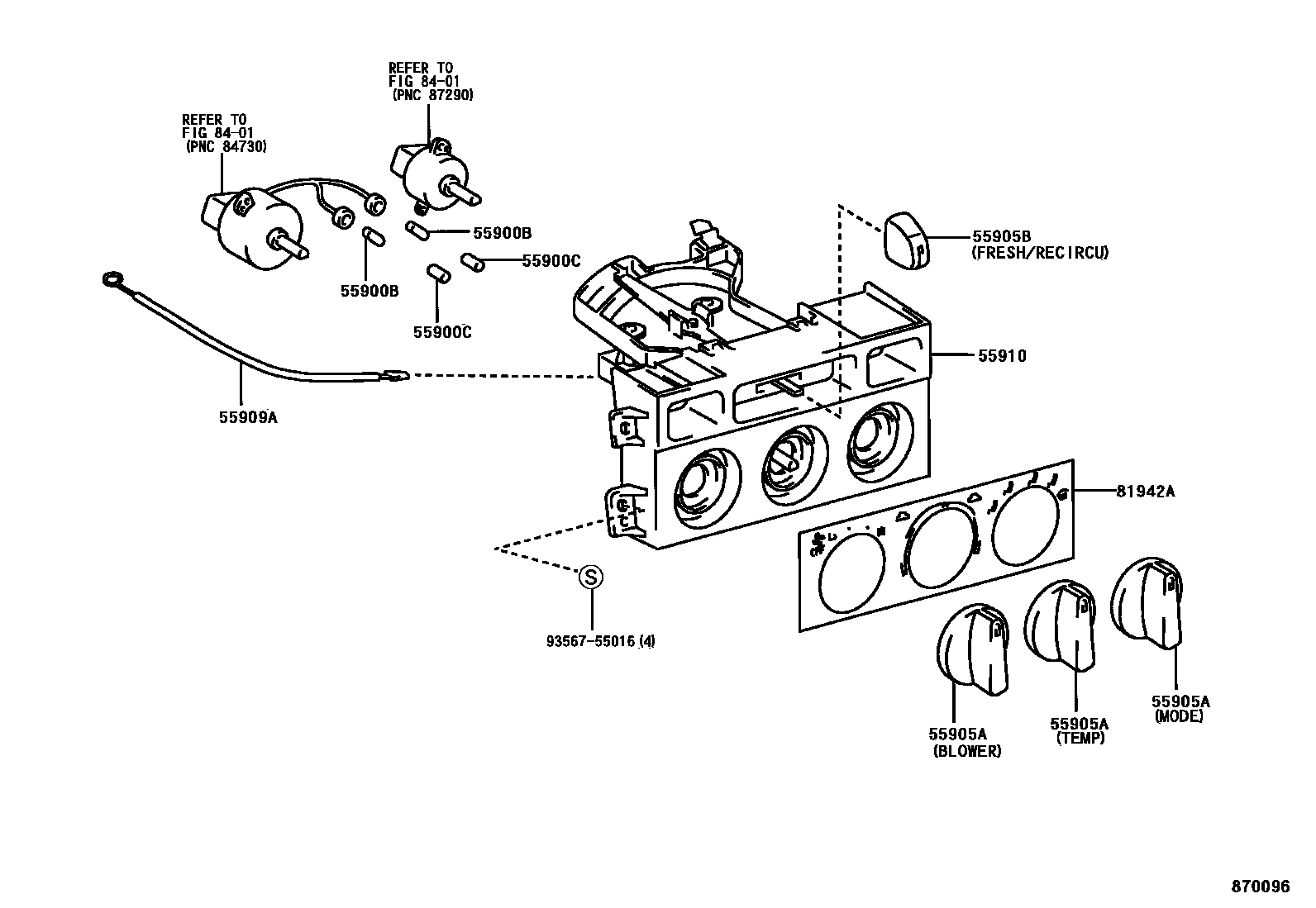

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1CONTROL---MANUAL 0003 1CONTROL---AUTO 0004 1DUCT 0005 1SENSOR

55900BBULB, AIR CONDITIONER CONTROL

main90010-03003×3iSXV20..JPP..XLE;MCV20..JPP..(LE,XLE)200101

14V1.4W,W(GREEN CAP),W(AUTOMATIC AIR CONDITIONER),KNOB

main90010-03030×2iMCV20,SXV20..JPP..XLE199908-200101

W(AUTOMATIC AIR CONDITIONER),LCD

main90069-98004×2iMCV20,SXV20..JPP199608-199908

14V 1.4W

55900CCAP, AIR CONDITIONER CONTROL BULB

main90069-09006×2iMCV20,SXV2#..JPP..(CE,LE)199908

55905AKNOB, HEATER CONTROL

main55905-06130×3iMCV20,SXV20..JPP199608-199908

main55905-30270iMCV20,SXV20..JPP..XLE199908

55905BKNOB, HEATER CONTROL, NO.2

main55905-06140iMCV20,SXV20..JPP199608-199908

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-06020iMCV20,SXV20..JPP199608-199908

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-06020iMCV20,SXV20..JPP199608-199908

main55910-06021iMCV20,SXV2#..JPP..(CE,LE)199908

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-06060iMCV20,SXV20..JPP199608-199810

main81942-06061iMCV20,SXV20..JPP199810-199908

main81942-06062iMCV20,SXV2#..JPP..(CE,LE)199908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356755016

main93567-55016

9 parts on this diagram · 5 diagrams in section
