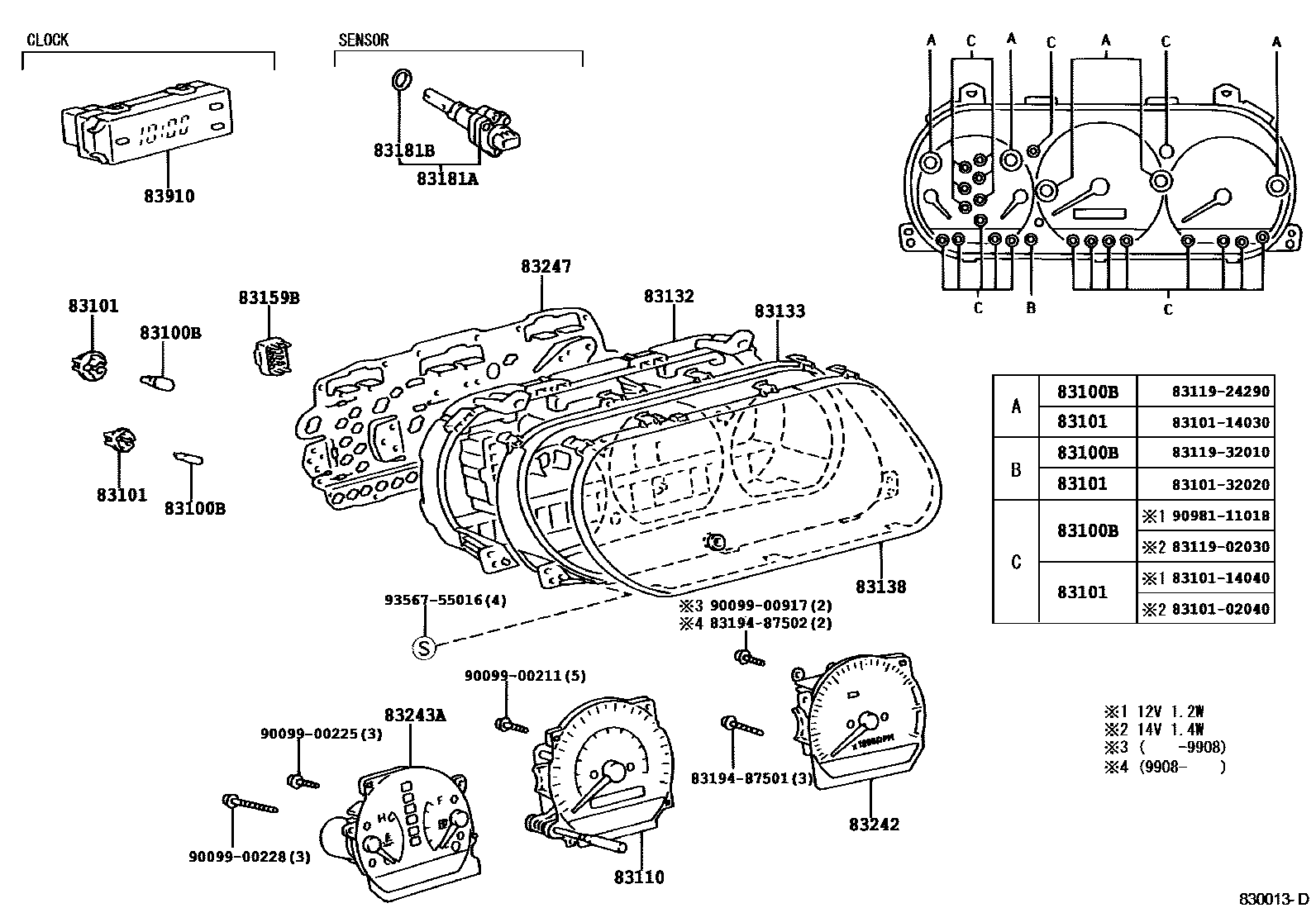

METER

83100BBULB, COMBINATION METER, NO.1

main83109-24020iSXV23..JPP199908-200107

12V3.4W W(GREEN CAP)

main83109-24020iMCV20,SXV20..JPP..CND199708-200107

12V3.4W W(GREEN CAP),TYPE A:REFER TO ILLUSTRATION

main83119-02030iMCV20..JPP..LE;SXV20..JPP..USA199908-200107

14V 1.4W,TYPE C:REFER TO ILLUSTRATION

main83119-24290iMCV20,SXV20..JPP..USA199608-200107

14V 3.78W,TYPE A:REFER TO ILLUSTRATION

main83119-32010iMCV20,SXV2#..JPP199608-200107

14V 3.0W,TYPE B:REFER TO ILLUSTRATION

main90981-11018iMCV20..JPP..(LE,XLE)199608-200107

12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-02040iMCV20..JPP..LE;SXV20..JPP..USA199908-200107

TYPE C:REFER TO ILLUSTRATION,14V 1.4W

main83101-14030iMCV20,SXV20..JPP..CND199608-200107

TYPE A:REFER TO ILLUSTRATION

main83101-14040iSXV2#..JPP..(LE,XLE)199608-200107

TYPE C:REFER TO ILLUSTRATION,12V 1.2W

main83101-32020iMCV20,SXV20..JPP199608-200107

TYPE B:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-06010iMCV20,SXV20..JPP..USA199608-199908

main83220-06011iMCV20,SXV20..JPP..USA199908-200107

main83220-33100iMCV20,SXV20..JPP..CND199708-199908

main83220-33101iMCV20,SXV20..JPP..CND199908-200107

main83220-33181iSXV23..JPP199908-200107

83132CASE, COMBINATION METER

main83841-06050iMCV20,SXV20..JPP..USA199608-200107

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83841-33030iSXV23..JPP;MCV20,SXV20..JPP..(LE,XLE)..CND199708-200107

main83841-33050iMCV20,SXV20..JPP..CE199805-200107

83133PLATE, COMBINATION METER, NO.1

main83811-06010iMCV20,SXV20..JPP..USA199608-200107

main83811-33030iSXV23..JPP;MCV20,SXV20..JPP..CND199708-200107

83138GLASS, SPEEDOMETER

main83852-06010iMCV20,SXV20..JPP..USA199608-200107

main83852-33030iSXV23..JPP;MCV20,SXV20..JPP..CND199708-200107

83159BRELAY ASSY, METER

main83159-22170iMCV20,SXV2#..JPP199608-200107

83181ASENSOR, SPEEDOMETER

main83181-12030iSXV20..JPP..MTM199808

main83181-12040iMCV20,SXV20..JPP..ATM199608-199908

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iMCV20,SXV20..JPP199608-199908

83242TACHOMETER ASSY, ENGINE

main83881-06010iSXV20..JPP..USA199608-200107

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main83881-06020iSXV20..JPP..LE..USA199608-200107

main83881-06030iMCV20..JPP..USA199608-200107

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main83881-06040iMCV20..JPP..LE199608-200107

main83881-33280iMCV20..JPP..CE199908-200107

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83881-33280iMCV20..JPP..XLE..CND199708-200107

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main83881-33290iSXV20..JPP..LE..CND199708-200107

W(THEFT-DETERRENT SYSTEM(ALARM+IMMOBILIZER))

main83881-33300iSXV20..JPP..CND199708-200107

main83881-33310iMCV20..JPP..CND199708-200107

main83881-33370iSXV23..JPP199908-200107

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-06050iMCV20,SXV20..JPP..USA199608-200107

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83882-33280iMCV20,SXV20..JPP..(LE,XLE)..CND199708-200107

main83882-33320iMCV20,SXV20..JPP..CE199805-200107

main83882-33370iSXV23..JPP199908-200107

83247PLATE, METER CIRCUIT

main83861-06010iSXV20..JPP..USA199608-199908

main83861-06050iMCV20..JPP..LE199608-200107

W(THEFT-DETERRENT SYSTEM(SOUTH AFRICA SPEC))

main83861-06050iSXV20..JPP..USA;MCV20..JPP..XLE..USA199608-200107

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83861-33280iSXV23..JPP;MCV20,SXV20..JPP..(LE,XLE)..CND199708-200107

main83861-33320iMCV20,SXV20..JPP..CE199805-200107

83910CLOCK ASSY

main83910-33030iMCV20..JPP..LE200101

W(AUTO AIR CONDITIONER),(J)

main83910-33030iMCV20,SXV20..JPP..XLE199908

(J)

main83910-33030iMCV20,SXV20..JPP199608-199908

JKC

main83910-33050iMCV20,SXV2#..JPP..(CE,LE)199908

main83910-AA010iMCV20,SXV20..JPP199608-199908

BORG

main83910-AA010iMCV20,SXV20..JPP..XLE199908

(L)

main83910-AA010iMCV20..JPP..LE200101

W(AUTO AIR CONDITIONER),(L)

8319487501

main83194-87501

8319487502

main83194-87502

9009900211

main90099-00211

9009900225

main90099-00225

9009900228

main90099-00228

9009900917

main90099-00917

9356755016

main93567-55016

20 parts on this diagram · 1 diagram in section
