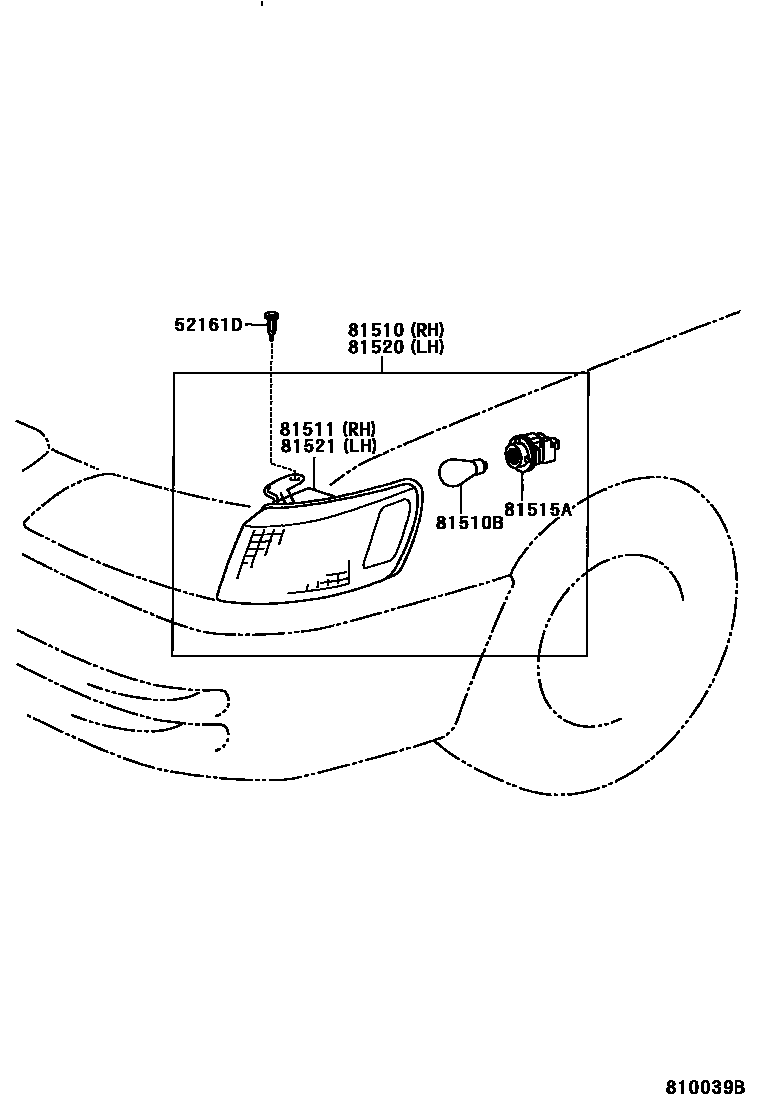

FRONT TURN SIGNAL LAMP

52161DPIECE, FRONT TURN SIGNAL LAMP

main52161-16010×2iMCV20,SXV2#..JPP199608

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-AA010iMCV20,SXV20..JPP199608-199908

main81510-AA020iMCV20,SXV2#..JPP199908

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90084-98027×2iMCV20,SXV2#..JPP199908-200007

12V 27/8W

main90084-98034×2iMCV20,SXV20..JPP199608-199908

12V 27/8W

main90084-98062×2iMCV20,SXV2#..JPP200007

12V 27/8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-AA010iMCV20,SXV20..JPP199608-199908

main81511-AA020iMCV20,SXV2#..JPP199908

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main81515-AA010×2iMCV20,SXV20..JPP199608-199908

main90069-81003×2iMCV20,SXV2#..JPP199908

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-AA010iMCV20,SXV20..JPP199608-199908

main81520-AA020iMCV20,SXV2#..JPP199908

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-AA010iMCV20,SXV20..JPP199608-199908

main81521-AA020iMCV20,SXV2#..JPP199908

7 parts on this diagram · 1 diagram in section
