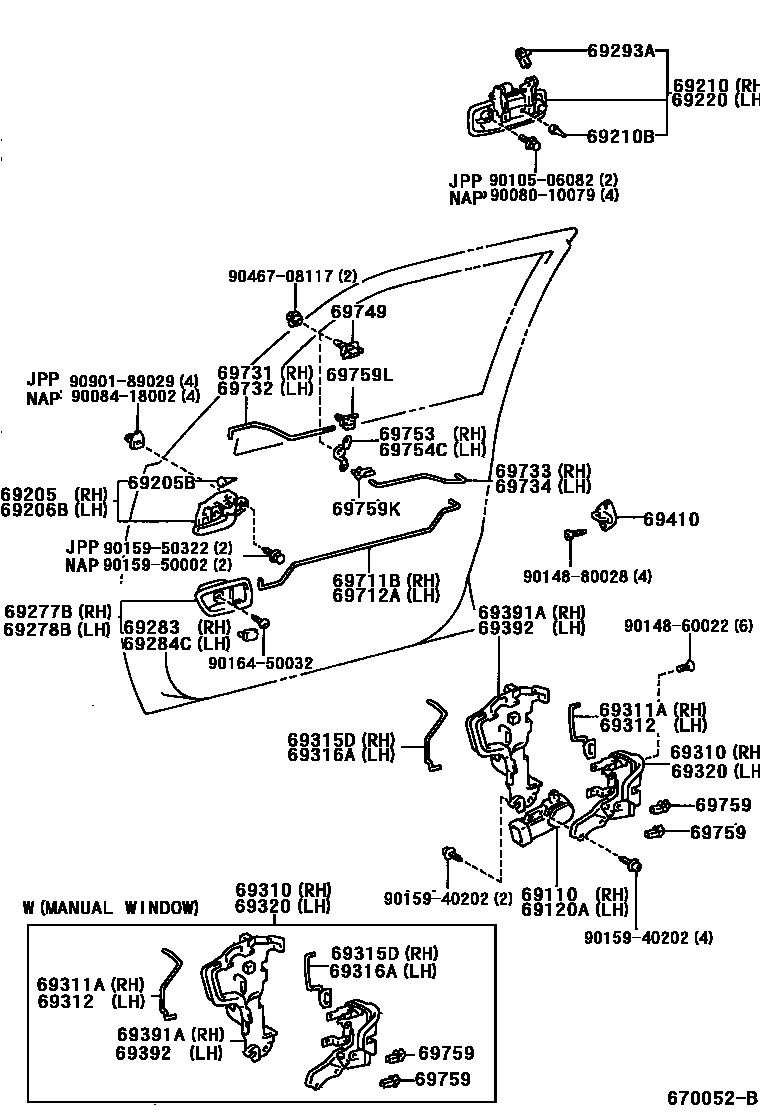

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-33010iMCV20,SXV20..JPP199608-199908

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-33010iMCV20,SXV20..JPP199608-199908

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22080-B1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

main69205-22080-G1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

main69205-30120-B2iMCV20,SXV20..JPP199608-200107

BLUE GRAY,TRIM1#

main69205-30120-E1iMCV20,SXV2#..JPP199608-200107

MD.OAK,TRIM4#

main69205-30120-G0iMCV20,SXV20..JPP199608-200107

SAGE,TRIM6#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iMCV20,SXV20..JPP199608-199908

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22080-B1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

main69206-22080-G1iMCV20,SXV20..JPP..LE..USA200008-200107

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

main69206-30120-B2iMCV20,SXV20..JPP199608-200107

BLUE GRAY,TRIM1#

main69206-30120-E1iMCV20,SXV2#..JPP199608-200107

MD.OAK,TRIM4#

main69206-30120-G0iMCV20,SXV20..JPP199608-200107

SAGE,TRIM6#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-33040-A0iMCV20,SXV2#..JPP199608-200001

SUPER WHITE 2,040

main69210-33040-A1iMCV20..JPP..LE199712-199802

40TH ANNIVERSARY PACKAGE,SU.WHITE PM,28Y

main69210-33040-B0iMCV20,SXV2#..JPP199608-200001

GRAY M.M.,1B2

main69210-33040-B3iMCV20,SXV2#..JPP199908-200001

DK.GRAY M.M.,1C6

main69210-33040-B4iMCV20,SXV2#..JPP199908-200001

SLVER ME.,1C8

main69210-33040-C0iMCV20,SXV2#..JPP199608-200001

BLACK,202

main69210-33040-D0iMCV20,SXV20..JPP199608-199808

RED MM,3K4

main69210-33040-D1iMCV20,SXV20..JPP199608-199808

MAGENTA MC.,3L3

main69210-33040-D2iMCV20,SXV2#..JPP199808-200001

DK.RED MC.,3N6

main69210-33040-E0iMCV20,SXV2#..JPP199608-200001

BEIGE ME.,4M9

main69210-33040-E1iSXV20..JPP..LE..USA199902-199907

ACCENT PACKAGE(USA/HAWAII),FLAXEN MM,2GP ,4M7

main69210-33040-E2iMCV20,SXV20..JPP199808-199908

BEIGE M.M.,4N7

main69210-33040-G0iMCV20,SXV20..JPP199608-199808

DK.GREEN M.M.,6P2

main69210-33040-G2iMCV20,SXV2#..JPP199808-200001

GREEN MC.,6R1

main69210-33040-J0iMCV20,SXV20..JPP199608-199908

DK.BLUE M.M.,8L3

main69210-33040-J1iMCV20,SXV2#..JPP199908-200001

BLUE M.M.,8N4

main69210-33040-J2iMCV20,SXV2#..JPP199908-200001

BLUE M.M.,8N7

main69210-33040-K0iMCV20,SXV20..JPP199608-199908

GRAYISH PURPLE M.M.,930

main69210-33040-K1iMCV20,SXV20..JPP199608-199908

LT.PURPLE ME.OP.,931

main69210-33041-A0iMCV20,SXV2#..JPP200001

SUPER WHITE 2,040

main69210-33041-A1iMCV20,SXV20..JPP..LE..USA200008

SU. WHITE PM.,2GF

main69210-33041-B0iMCV20,SXV20..JPP..LE..USA; SXV23..JPP;SXV20..JPP..CND;SXV20..JPP..XLE;MCV20..JPP..(CE,XLE)200008

GRAY M.M.,1B2; GRAY M.M.,1B2 ,2HG

main69210-33041-B3iMCV20,SXV2#..JPP200001

DK.GRAY M.M.,1C6

main69210-33041-B4iMCV20,SXV2#..JPP200001

SILVER ME.,1C8

main69210-33041-C0iMCV20,SXV2#..JPP200001

BLACK,202

main69210-33041-D2iMCV20,SXV2#..JPP200001

DK. RED MC.,3N6

main69210-33041-E0iMCV20..JPP..LE; SXV2#..JPP;MCV20..JPP..(CE,XLE)200101

BEIGE ME.,2HV ,4M9; BEIGE ME.,4M9

main69210-33041-G2iMCV20,SXV2#..JPP200001

GREEN MC.,6R1

main69210-33041-G3iMCV20,SXV20..JPP..LE..USA200008

GRAYISH GREEN M.M.OP,2HH

main69210-33041-J1iMCV20,SXV2#..JPP200001-200008

BLUE M.M.,8N4

main69210-33041-J2iMCV20,SXV2#..JPP200001

BLUE M.M.,8N7

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iMCV20,SXV20..JPP199608-199908

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-33040-A0iMCV20,SXV2#..JPP199608-200001

SUPER WHITE 2,040

main69220-33040-A1iSXV20..JPP..LE..USA199902-199907

ACCENT PACKAGE(USA/HAWAII),SU.WHITE PM,051 ,28Y

main69220-33040-B0iMCV20,SXV2#..JPP199608-200001

GRAY M.M.,1B2

main69220-33040-B3iMCV20,SXV2#..JPP199908-200001

DK.GRAY M.M.,1C6

main69220-33040-B4iMCV20,SXV2#..JPP199908-200001

SLVER ME.,1C8

main69220-33040-C0iMCV20,SXV2#..JPP199608-200001

BLACK,202

main69220-33040-D0iMCV20,SXV20..JPP199608-199808

RED MM,3K4

main69220-33040-D1iMCV20,SXV20..JPP199608-199808

MAGENTA MC.,3L3

main69220-33040-D2iMCV20,SXV2#..JPP199808-200001

DK.RED MC.,3N6

main69220-33040-E0iMCV20,SXV2#..JPP199608-200001

BEIGE ME.,4M9

main69220-33040-E1iSXV20..JPP..LE..USA199902-199907

ACCENT PACKAGE(USA/HAWAII),FLAXEN MM,2GP ,4M7

main69220-33040-E2iMCV20,SXV20..JPP199808-199908

BEIGE M.M.,4N7

main69220-33040-G0iMCV20,SXV20..JPP199608-199808

DK.GREEN M.M.,6P2

main69220-33040-G2iMCV20,SXV2#..JPP199808-200001

GREEN MC.,6R1

main69220-33040-J0iMCV20,SXV20..JPP199608-199908

DK.BLUE M.M.,8L3

main69220-33040-J1iMCV20,SXV2#..JPP199908-200001

BLUE M.M.,8N4

main69220-33040-J2iMCV20,SXV2#..JPP199908-200001

BLUE M.M.,8N7

main69220-33040-K0iMCV20,SXV20..JPP199608-199908

GRAYISH PURPLE M.M.,930

main69220-33040-K1iMCV20,SXV20..JPP199608-199908

LT.PURPLE ME.OP.,931

main69220-33041-A0iMCV20,SXV2#..JPP200001

SUPER WHITE 2,040

main69220-33041-A1iMCV20,SXV20..JPP..LE..USA200008

SU. WHITE PM.,2GF

main69220-33041-B0iMCV20,SXV20..JPP..LE..USA; SXV23..JPP;SXV20..JPP..CND;SXV20..JPP..XLE;MCV20..JPP..(CE,XLE)200008

GRAY M.M.,1B2; GRAY M.M.,1B2 ,2HG

main69220-33041-B3iMCV20,SXV2#..JPP200001

DK.GRAY M.M.,1C6

main69220-33041-B4iMCV20,SXV2#..JPP200001

SILVER ME.,1C8

main69220-33041-C0iMCV20,SXV2#..JPP200001

BLACK,202

main69220-33041-D2iMCV20,SXV2#..JPP200001

DK. RED MC.,3N6

main69220-33041-E0iMCV20..JPP..LE; SXV2#..JPP;MCV20..JPP..(CE,XLE)200101

BEIGE ME.,2HV ,4M9; BEIGE ME.,4M9

main69220-33041-G2iMCV20,SXV2#..JPP200001

GREEN MC.,6R1

main69220-33041-G3iMCV20,SXV20..JPP..LE..USA200008

GRAYISH GREEN M.M.OP,2HH

main69220-33041-J1iMCV20,SXV2#..JPP200001-200008

BLUE M.M.,8N4

main69220-33041-J2iMCV20,SXV2#..JPP200001

BLUE M.M.,8N7

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-33020-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

main69277-33020-E0iMCV20,SXV2#..JPP199608

MD.OAK,TRIM4#

main69277-33020-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

main69277-33040-B0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

main69277-33040-G0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-33020-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

main69278-33020-E0iMCV20,SXV2#..JPP199608

MD.OAK,TRIM4#

main69278-33020-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

main69278-33040-B0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),BLUE GRAY,TRIM1#

main69278-33040-G0iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B3iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),MD. MOON MIST,TRIM1#

main69283-30040-G1iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

main69283-33010-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

main69283-33010-E0iMCV20,SXV2#..JPP199608

MD. OAK,TRIM4#

main69283-33010-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B3iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),MD.MOON MIST,TRIM1#

main69284-30040-G1iMCV20,SXV20..JPP..LE..USA200008

W(CHROME PLATED INSIDE HANDLE),SAGE,TRIM6#

main69284-33010-B0iMCV20,SXV20..JPP199608

BLUE GRAY,TRIM1#

main69284-33010-E0iMCV20,SXV2#..JPP199608

MD. OAK,TRIM4#

main69284-33010-G0iMCV20,SXV20..JPP199608

SAGE,TRIM6#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iMCV20,SXV20..JPP199608-199908

RH

main69293-12040iMCV20,SXV2#..JPP199908-200001

LH

main69293-33010iMCV20,SXV2#..JPP200001

RH

main69293-33020iMCV20,SXV2#..JPP200001

LH

69310LOCK ASSY, FRONT DOOR, RH

main69303-33020iMCV20,SXV20..JPP..(LE,XLE)199608-199908

W(THEFT-DETERRENT SYSTEM)

main69303-33030iSXV20..JPP..MTM199808

POWER PACKAGE

main69310-33070iMCV20,SXV20..JPP..CE199805

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-33020iMCV20,SXV20..JPP199608-199908

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-33020iMCV20,SXV20..JPP199608-199908

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-33010iMCV20,SXV2#..JPP199908

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-33010iMCV20,SXV20..JPP199608-199908

69320LOCK ASSY, FRONT DOOR, LH

main69304-33020iMCV20,SXV20..JPP..XLE199908

W(THEFT-DETERRENT SYSTEM)

main69304-33030iMCV20,SXV2#..JPP..LE199908

main69320-33060iMCV20,SXV20..JPP..CE199805

69391ACOVER, FRONT DOOR LOCK, OUTER RH

main69391-33010iMCV20,SXV20..JPP..(LE,XLE)199608-199908

main69391-33030iMCV20,SXV20..JPP..CE199805

69392COVER, FRONT DOOR LOCK, OUTER LH

main69392-33010iMCV20,SXV2#..JPP..(LE,XLE)199908

main69392-33030iMCV20,SXV20..JPP..CE199805

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070×2iMCV20,SXV2#..JPP199608

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-33030iMCV20,SXV20..JPP199608-199908

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-33030iMCV20,SXV2#..JPP199908

69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-33020iMCV20,SXV2#..JPP199908

69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-33020iMCV20,SXV20..JPP199608-199908

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-33030iMCV20,SXV20..JPP199608-199908

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-33020iMCV20,SXV20..JPP199608-199908

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32030×2iMCV20,SXV20..JPP199608-199812

main69749-33010×2iMCV20,SXV20..JPP199812-199908

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-33030iMCV20,SXV2#..JPP199908

69754CBELLCRANK, DOOR LOCK CONTROL, LH

main69753-33030iMCV20,SXV20..JPP199608-199908

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050×2iMCV20,SXV20..JPP199608-199908

GREEN

main69759-24060×2iMCV20,SXV20..JPP199608-199908

GRAY

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-24080iMCV20,SXV20..JPP199608-199908

YELLOW

main69759-24090iMCV20,SXV2#..JPP199908

BROWN

69759LSNAP, DOOR LOCK CONTROL LINK

main69759-20410×2iMCV20,SXV2#..JPP199908

9008010079

main90080-10079

9008418002

main90084-18002

9010506082

main90105-06082

9014860022

main90148-60022

9014880028

main90148-80028

9015940202

main90159-40202

9015950002

main90159-50002

9015950322

main90159-50322

9016450032

main90164-50032

9046708117

main90467-08117

9090189029

main90901-89029

45 parts on this diagram · 1 diagram in section
