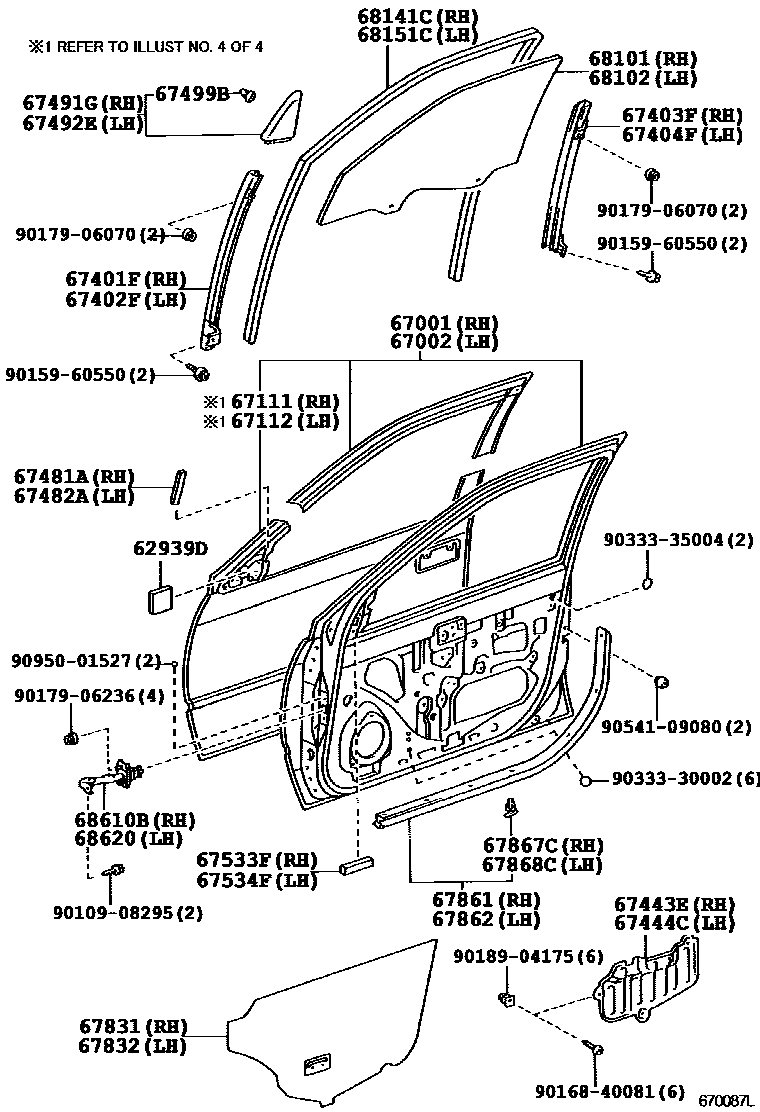

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1TRIM CODE 0004 1

62939DSILENCER, QUARTER VENT

main62939-32030×2iMCV20,SXV2#..JPP199608

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-33050iMCV20,SXV20..JPP199608-199908

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-33050iMCV20,SXV20..JPP199608-199908

67111PANEL, FRONT DOOR, OUTER RH

main67111-33030iMCV20,SXV20..JPP199608-199908

67112PANEL, FRONT DOOR, OUTER LH

main67112-33030iMCV20,SXV20..JPP199608-199908

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-33020iMCV20,SXV20..JPP199608-199908

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-33020iMCV20,SXV20..JPP199608-199908

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-33010iMCV20,SXV20..JPP199608-199908

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-33010iMCV20,SXV20..JPP199608-199908

67443EPLATE, FRONT DOOR INSIDE PANEL, RH

main67443-33020iMCV20,SXV20..JPP199608-199908

67444CPLATE, FRONT DOOR INSIDE PANEL, LH

main67444-33020iMCV20,SXV20..JPP199608-199908

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-33020iMCV20,SXV20..JPP199608-199908

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-33020iMCV20,SXV2#..JPP199908

67491GGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-33040iMCV20,SXV20..JPP..(CE,LE)199708-199908

(J)

main67491-33050iMCV20,SXV20..JPP..(LE,XLE)199608

W(SPEAKER)

main67491-AA020iMCV20,SXV20..JPP..CE199805

(L)

67492EGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-33040iMCV20,SXV2#..JPP..(CE,LE)199908

(J)

main67492-33050iMCV20,SXV20..JPP..(LE,XLE)199608

W(SPEAKER)

main67492-AA020iMCV20,SXV20..JPP..CE199805

(L)

67499BRETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2

main67499-06010×2iMCV20,SXV20..JPP..CE199908

(L)

main67499-12030×2iMCV20,SXV20..JPP199806-199908

main67499-33010×2iMCV20,SXV20..JPP199608-199806

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-33030iMCV20,SXV20..JPP199608-199908

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main67533-33030iMCV20,SXV2#..JPP199908

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-33060iMCV20,SXV20..JPP199608-199908

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-33060iMCV20,SXV20..JPP199608-199908

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-33020iMCV20,SXV20..JPP199608-199908

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-33020iMCV20,SXV20..JPP199608-199908

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×6iMCV20,SXV20..JPP199608-199908

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×6iMCV20,SXV2#..JPP199908

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-33050iMCV20,SXV20..JPP199608-199704

*UVCTT,T=4.0,GREEN

main68111-33070iMCV20,SXV20..JPP199704-199908

*UVCTT,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-33050iMCV20,SXV20..JPP199608-199704

*UVCTT,T=4.0,GREEN

main68112-33070iMCV20,SXV20..JPP199704-199908

*UVCTT,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-33030iMCV20,SXV20..JPP199608-199704

main68141-33060iMCV20,SXV20..JPP199704-199908

68151CRUN, FRONT DOOR GLASS, LH

main68151-33030iMCV20,SXV20..JPP199608-199704

main68151-33050iMCV20,SXV20..JPP199704-199908

68610BCHECK ASSY, FRONT DOOR, RH

main68610-33030iMCV20,SXV20..JPP199608-199811

main68610-33031iMCV20,SXV20..JPP199811-199908

68620CHECK ASSY, FRONT DOOR, LH

main68620-33030iMCV20,SXV20..JPP199608-199811

main68620-33031iMCV20,SXV20..JPP199811-199908

9010908295

main90109-08295

9015960550

main90159-60550

9016840081

main90168-40081

9017906070

main90179-06070

9017906236

main90179-06236

9018904175

main90189-04175

9033330002

main90333-30002

9033335004

main90333-35004

9054109080

main90541-09080

9095001527

main90950-01527

40 parts on this diagram · 4 diagrams in section
