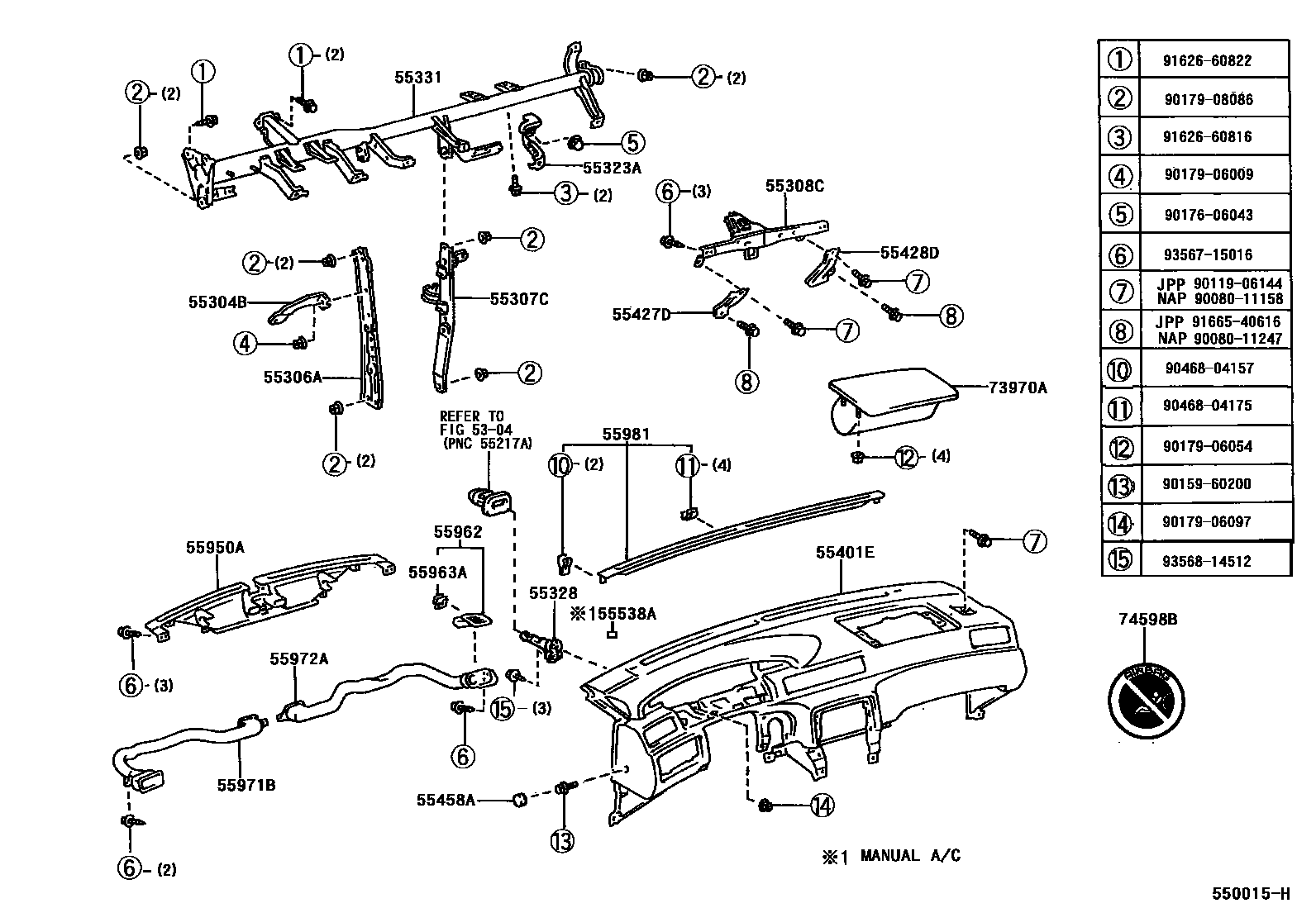

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

55304BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING

main55381-33050iMCV20,SXV20..JPP199608-199908

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55351-33050iMCV20,SXV2#..JPP199908

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-33070iMCV20,SXV20..JPP199608-199908

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-33050iMCV20,SXV2#..JPP199908

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-33040iMCV20,SXV20..JPP199608-199908

55328PIN, INSTRUMENT PANEL, NO.1

main55328-24010×3iMCV20,SXV20..JPP199608-199908

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-33130iMCV20,SXV20..JPP199608-199908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-33050-B0iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main55401-33050-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main55401-33050-G0iMCV20,SXV20..JPP199608

DK.SAGE,TRIM6#

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55427-33030iMCV20,SXV20..JPP199608-199908

55428DRETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2

main55428-33030iMCV20,SXV20..JPP199608-199908

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-32020-B1iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main55458-32020-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main55458-32020-G0iMCV20,SXV20..JPP199608

DK.SAGE,TRIM6#

55538ACOVER, COOLER SWITCH HOLE

main55538-06010iMCV20,SXV20..JPP..CE199805

55950ANOZZLE ASSY, DEFROSTER

main55950-AA010iMCV20,SXV20..JPP199608-199908

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-33040-B0iMCV20,SXV20..JPP199608

BLUISH GRAY,TRIM1#

main55962-33040-E0iMCV20,SXV2#..JPP199608

OAK,TRIM4#

main55962-33040-G0iMCV20,SXV20..JPP199608

DK.SAGE,TRIM6#

55963ARETAINER, SIDE DEFROSTER

main55963-33020iMCV20,SXV20..JPP199608-199908

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-AA010iMCV20,SXV2#..JPP199908

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55970-AA010iMCV20,SXV20..JPP199608-199908

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-33030iMCV20,SXV2#..JPP..LE..USA199908

main55981-33070iMCV20,SXV20..JPP199805-199809

W(AUTOMATIC LIGHT CONTROL)

main55981-33071iMCV20,SXV20..JPP199809-199908

W(AUTOMATIC LIGHT CONTROL)

main55981-33080iMCV20,SXV20..JPP..XLE199908

W(AUTOMATIC LIGHT CONTROL)

main55981-33090iMCV20,SXV20..JPP..XLE..USA199908

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-06040-B0iMCV20,SXV20..JPP199608-199708

BLUISH GRAY,TRIM1#

main73970-06040-E0iMCV20,SXV20..JPP199608-199708

OAK,TRIM4#

main73970-06040-G0iMCV20,SXV20..JPP199608-199708

DK.SAGE,TRIM6#

main73970-06042-B0iMCV20,SXV20..JPP199708-199908

BLUISH GRAY,TRIM1#

main73970-06042-E0iMCV20,SXV20..JPP199708-199908

OAK,TRIM4#

main73970-06042-G0iMCV20,SXV20..JPP199708-199908

DK.SAGE,TRIM6#

main73970-06060-B0iMCV20,SXV20..JPP199908

BLUISH GRAY,TRIM1#

main73970-06060-E0iMCV20,SXV2#..JPP199908

OAK,TRIM4#

main73970-06060-G0iMCV20,SXV20..JPP199908

DK.SAGE,TRIM6#

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iMCV20,SXV20..JPP199608-199702

9008011158

main90080-11158

9008011247

main90080-11247

9011906144

main90119-06144

9015960200

main90159-60200

9017606043

main90176-06043

9017906009

main90179-06009

9017906054

main90179-06054

9017906097

main90179-06097

9017908086

main90179-08086

9046804157

main90468-04157

9046804175

main90468-04175

9162660816

main91626-60816

9162660822

main91626-60822

9166540616

main91665-40616

9356715016

main93567-15016

9356814512

main93568-14512

37 parts on this diagram · 2 diagrams in section
