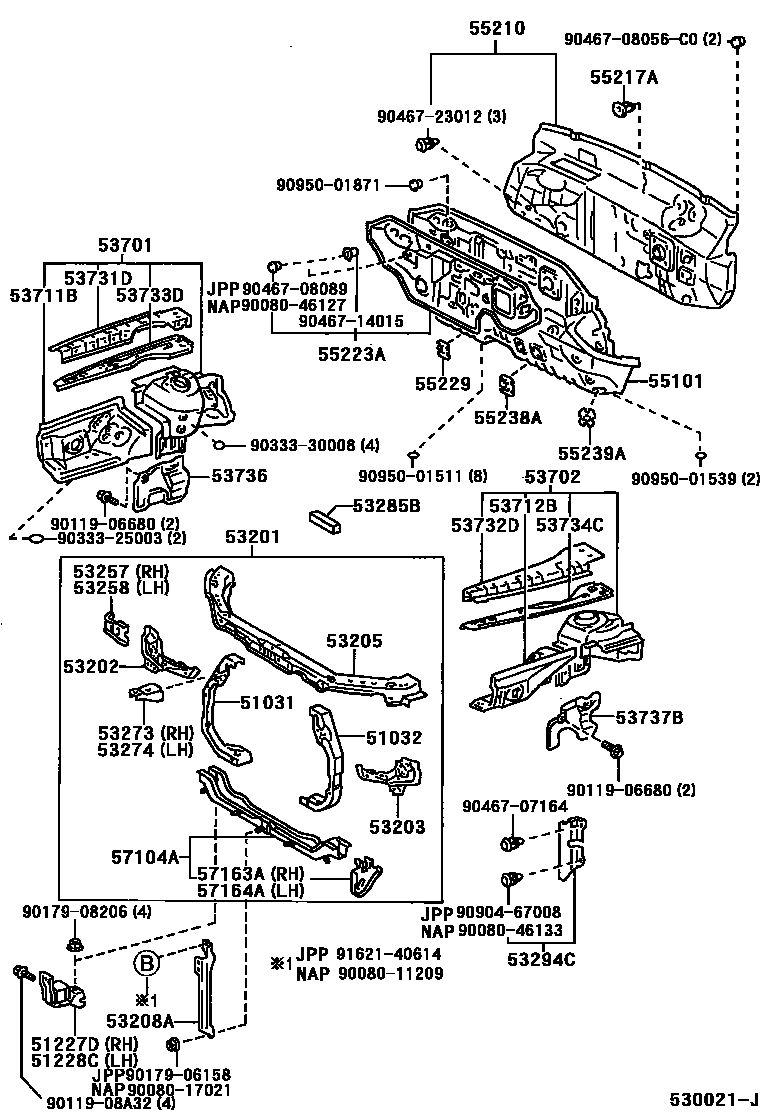

FRONT FENDER APRON & DASH PANEL
51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH
51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH
51227DWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH
51228CPLATE, FRONT SUSPENSION MEMBER
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53257BRACKET, FRONT END PANEL MOUNTING, RH
53258BRACKET, FRONT END PANEL MOUNTING, LH
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53294CDEFLECTOR, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55238APLATE, DASH PANEL INSULATOR, NO.2
55239APLATE, DASH PANEL INSULATOR, NO.3
57104AMEMBER SUB-ASSY, FRONT CROSS
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH
9008011209
main90080-11209
9008017021
main90080-17021
9008046127
main90080-46127
9008046133
main90080-46133
9011906680
main90119-06680
9011908A32
main90119-08A32
9017906158
main90179-06158
9017908206
main90179-08206
9033325003
main90333-25003
9033330008
main90333-30008
9046707164
main90467-07164
9046708056C0
main90467-08056C0
9046708089
main90467-08089
9046714015
main90467-14015
9046723012
main90467-23012
9090467008
main90904-67008
9095001511
main90950-01511
9095001539
main90950-01539
9095001871
main90950-01871
9162140614
main91621-40614
55 parts on this diagram · 1 diagram in section
