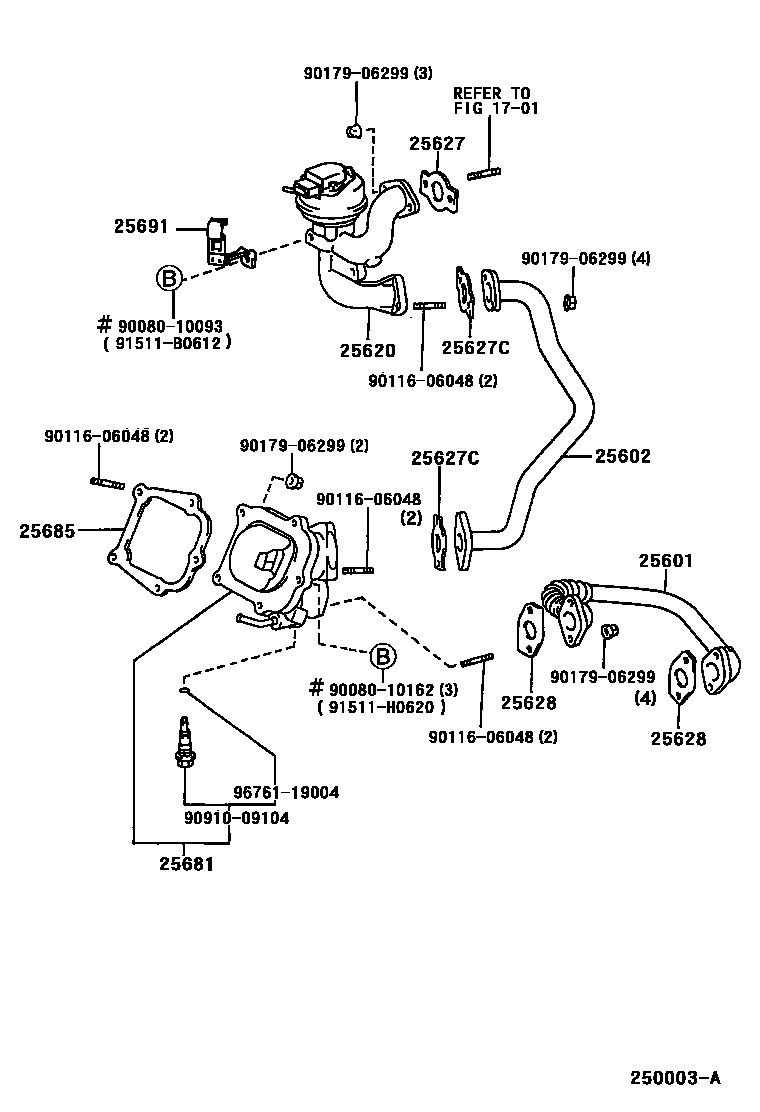

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25611-20010i1MZFE..MCV20..JPP199608-200008

main25611-20020i1MZFE..MCV20..JPP200008

(J)

main25611-74060i5SF#..SXV2#..JPP199908

25602PIPE SUB-ASSY, EGR, NO.2

main25612-20010i1MZFE..MCV20..JPP199608-200008

25620VALVE ASSY, EGR

main25620-20020i1MZFE..MCV20..JPP199608

main25620-74320i5SFE..SXV20..JPP..MTM199808

main25620-74330i5SFE..SXV20..JPP..ATM199608-199908

25627GASKET, EGR VALVE

main25627-0A010i1MZFE..MCV20..JPP200008

(L)

main25627-20010i1MZFE..MCV20..JPP199608

(J)

main25627-74011i5SF#..SXV2#..JPP199908

25627CGASKET(FOR EGR PIPE NO.2)

main25627-20010×2i1MZFE..MCV20..JPP199608-200008

25628GASKET, EGR INLET

main25628-20010×2i1MZFE..MCV20..JPP200008

(J)

main25628-74010i5SFE..SXV20..JPP199608-199908

25681COOLER, EGR, NO.1

main25681-20010i1MZFE..MCV20..JPP199608

25685GASKET, EGR COOLER, NO.1

main25685-20010i1MZFE..MCV20..JPP199608-200008

25691BRACKET, EGR VACUUM MODULATOR

main25691-20030i1MZFE..MCV20..JPP199608

main25691-74090i5SFE..SXV20..JPP199608-199908

9008010093

main90080-10093

9008010162

main90080-10162

9011606048

main90116-06048

9017906299

main90179-06299

9091009104

main90910-09104

91511B0612

main91511-B0612

91511H0620

main91511-H0620

9676119004

main96761-19004

18 parts on this diagram · 2 diagrams in section
