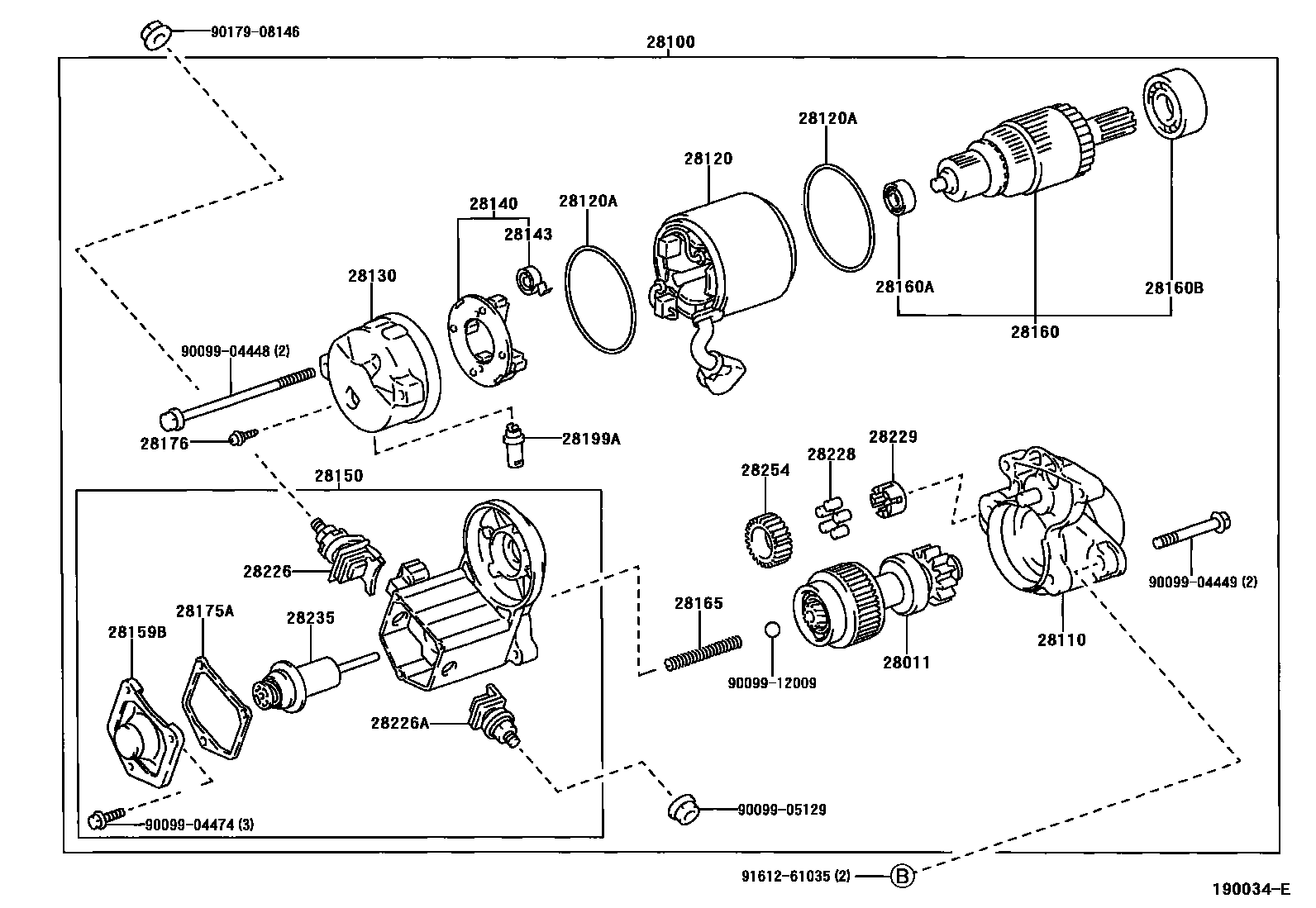

STARTER

0001 112V 1.4KW,(J) 0002 112V 1.4KW,(L)

28011CLUTCH SUB-ASSY, STARTER

main28011-74070i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

28100STARTER ASSY

main28100-03090i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

12V 1.4KW,(L)

main28100-03100i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

12V 1.4KW,(L)

main28100-74240i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

12V 1.4KW,(J)

main28100-74260i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

12V 1.4KW,(J)

28110HOUSING ASSY, STARTER DRIVE

main28110-03010i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(L)

main28110-03100i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

(L)

main28110-74100i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(J)

main28110-74270i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

(J)

28120YOKE ASSY, STARTER

main28120-01030i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(L)

main28120-66040i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(J)

28120ARING, O(FOR STARTER YOKE)

main90068-14001×2i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(L)

main90099-14064×2i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(J)

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-03010i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(L)

main28130-03100i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

(L)

main28130-74100i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(J)

main28130-74260i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

(J)

28140HOLDER ASSY, STARTER BRUSH

main28140-03010i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(L)

main28140-74070i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(J)

28143SPRING, STARTER BRUSH

main90099-17112×4i1MZFE,5SF#..MCV20,SXV2#..JPP199908

28150SWITCH ASSY, MAGNET STARTER

main28150-03080i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(L)

main28150-03100i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(L)

main28150-74230i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(J)

main28150-74270i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

(J)

28159BCOVER, MAGNET SWITCH

main28159-07010i1MZFE,5SF#..MCV20,SXV2#..JPP199608

(L)

main28159-55050i1MZFE,5SF#..MCV20,SXV2#..JPP199608

(J)

28160ARMATURE ASSY, STARTER

main28160-01020i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(L)

main28160-74070i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(J)

28160ABEARING, STARTER ARMATURE

main90068-10003i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(L)

main90099-10196i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(J)

28160BBEARING, STARTER ARMATURE, NO.2

main90068-10004i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(L)

main90099-10197i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(J)

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74070i1MZFE,5SF#..MCV20,SXV2#..JPP199908

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

28176SCREW, STARTER

main28176-15090×2i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(L)

main90068-00007×2i1MZFE,5SFE..MCV20,SXV20..JPP199702-199908

(L)

main90099-00270×2i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(J)

28199APROTECTOR, DUST STARTER

main28199-74110i1MZFE,5SF#..MCV20,SXV2#..JPP199608

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

28229RETAINER, STARTER IDLE GEAR

main28229-01020i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(L)

main28229-03010i1MZFE,5SFE..MCV20,SXV20..JPP199608-199702

(L)

main28229-74070i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(J)

28235PLUNGER, MAGNET SWITCH

main28235-03080i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(L)

main28235-74130i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(J)

28254PINION, STARTER IDLE GEAR

main28254-03010i1MZFE,5SFE..MCV20,SXV20..JPP199608-199908

(L)

main28254-74070i1MZFE,5SF#..MCV20,SXV2#..JPP199908

(J)

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161261035

main91612-61035

30 parts on this diagram · 2 diagrams in section
