CAUTION PLATE & NAME PLATE (ENGINE)

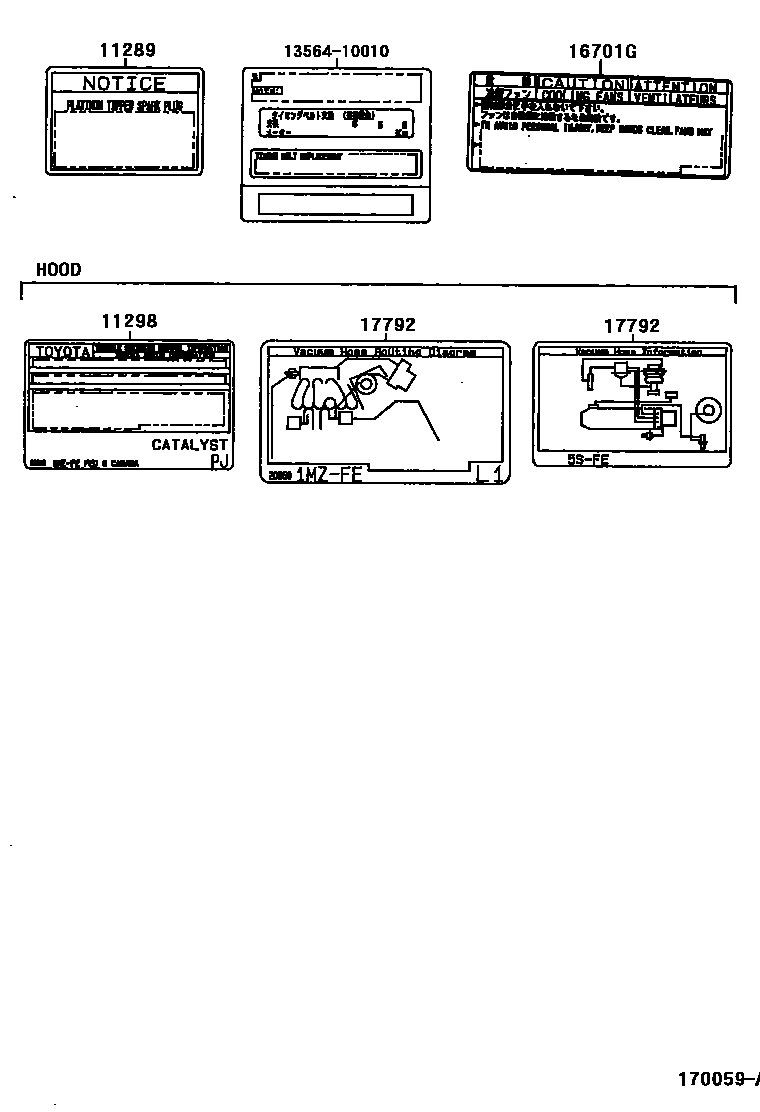

Parts diagram

11289PLATE, SPARK PLUG CAUTION

main11289-20010i199608-199908

11298PLATE, EMISSION CONTROL INFORMATION

main11298-20100i199608-199708

main11298-20110i199608-199708

CALIFORNIA SPEC

main11298-20150i199708-199808

main11298-20160i199708-199808

CALIFORNIA SPEC

main11298-20170i199808-199908

main11298-20181i199808-199908

CALIFORNIA SPEC

main11298-20300i199908-200008

main11298-20310i199908-200008

CALIFORNIA SPEC

main11298-20390i200008

main11298-7A340i199608-199708

main11298-7A350i199608-199708

CALIFORNIA SPEC

main11298-7A420i199708-199808

main11298-7A430i199708-199808

CALIFORNIA SPEC

main11298-7A491i199808-199908

main11298-7A521i199808-199908

CALIFORNIA SPEC

main11298-7A580i199908-200008

main11298-7A590i199908-200008

CALIFORNIA SPEC

main11298-7A640i199908-200008

main11298-7A650i200008

main11298-7A670i200008

16701GLABEL, CAUTION

main88723-20080i199608-199704

main88723-20081i199704-199908

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-20060i199608-199708

main17792-20100i199708-199808

main17792-20110i199808-199908

main17792-20170i199908

main17792-74541i199608-199708

main17792-74550i199708-199807

main17792-74551i199807-199808

main17792-74560i199808-199908

main17792-74630i199908

main17792-74640i199908

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

5 parts on this diagram · 1 diagram in section
