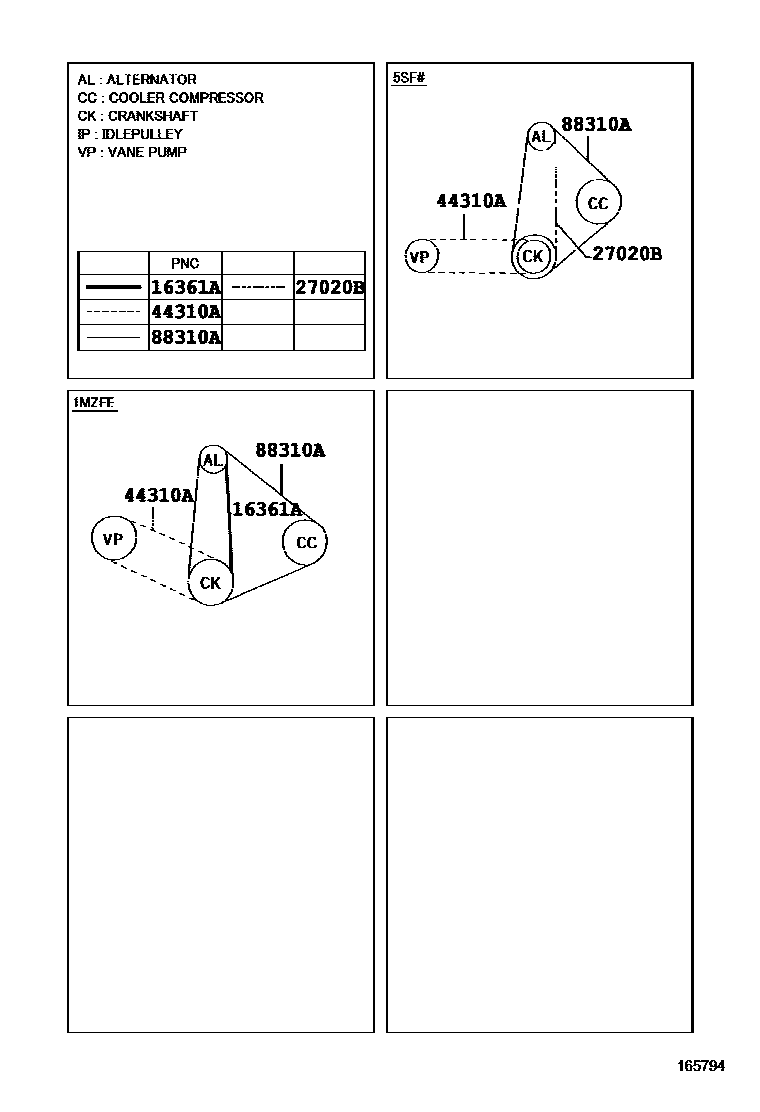

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main99366-90940i1MZFE..MCV20..JPP..CE199908

main99366-90950i1MZFE..MCV20..JPP..CE199805-199908

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i5SFE..SXV20..JPP..CE199805

44310ABELT, V(FOR VANE PUMP)

main90080-91088iMCV20..JPP199608

L=878

main99363-20750iSXV20..JPP199608-199801

L=750,MITSUBOSHI

main99363-30750iSXV20..JPP199801-199908

L=750,MITSUBOSHI

main99363-80750iSXV20..JPP199608-199801

L=750,BANDO

main99363-90750iSXV20..JPP199801-199908

L=750,BANDO

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91087iMCV20..JPP199608

L=1035,(L)

main90916-02401iMCV20..JPP199608

L=1035,(J)

main99365-21100iSXV20..JPP199608-199908

L=1100

4 parts on this diagram · 1 diagram in section
