ABS & VSC

85999MBRACKET, RELAY

main85999-33020iSXV10,VCV10..JPP199106-199308

main85999-33110iMCV10,SXV10..JPP199308-199608

88263ARELAY, SKID CONTROL

main88263-12070iSXV10,VCV10..JPP199106-199308

main88263-12080iMCV10,SXV10..JPP199308-199406

main88263-32060iMCV10,SXV10..JPP199406-199608

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-33010iMCV10,SXV10,VCV10..JPP199106-199608

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-33010iMCV10,SXV10,VCV10..JPP199106-199608

89411SENSOR, SPEED

main89542-33010iMCV10,SXV10,VCV10..JPP199106-199408

FRONT RH

main89543-33010iMCV10,SXV10,VCV10..JPP199106-199408

FRONT LH

main89545-32030iMCV10,SXV10,VCV10..JPP199106-199408

REAR RH

main89546-32030iMCV10,SXV10..JPP199408-199608

REAR,LH

89540COMPUTER ASSY, SKID CONTROL

main89541-33010iMCV10,SXV10,VCV10..JPP199106-199608

9011906423

main90119-06423

9011906512

main90119-06512

9017906070

main90179-06070

9038916020

main90389-16020

91611B0610

main91611-B0610

91612B0610

main91612-B0610

9165140612

main91651-40612

91651B0614

main91651-B0614

91656B0616

main91656-B0616

9325954010

main93259-54010

9326954010

main93269-54010

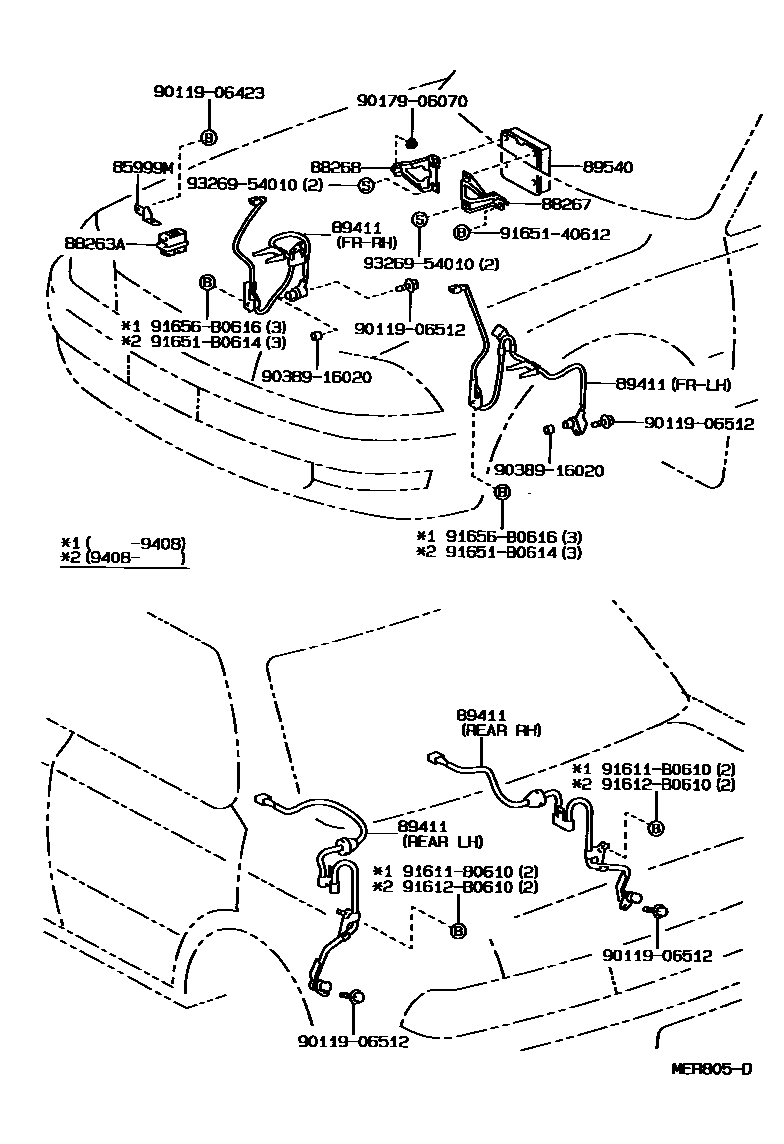

17 parts on this diagram · 1 diagram in section
