SHORT BLOCK ASSEMBLY

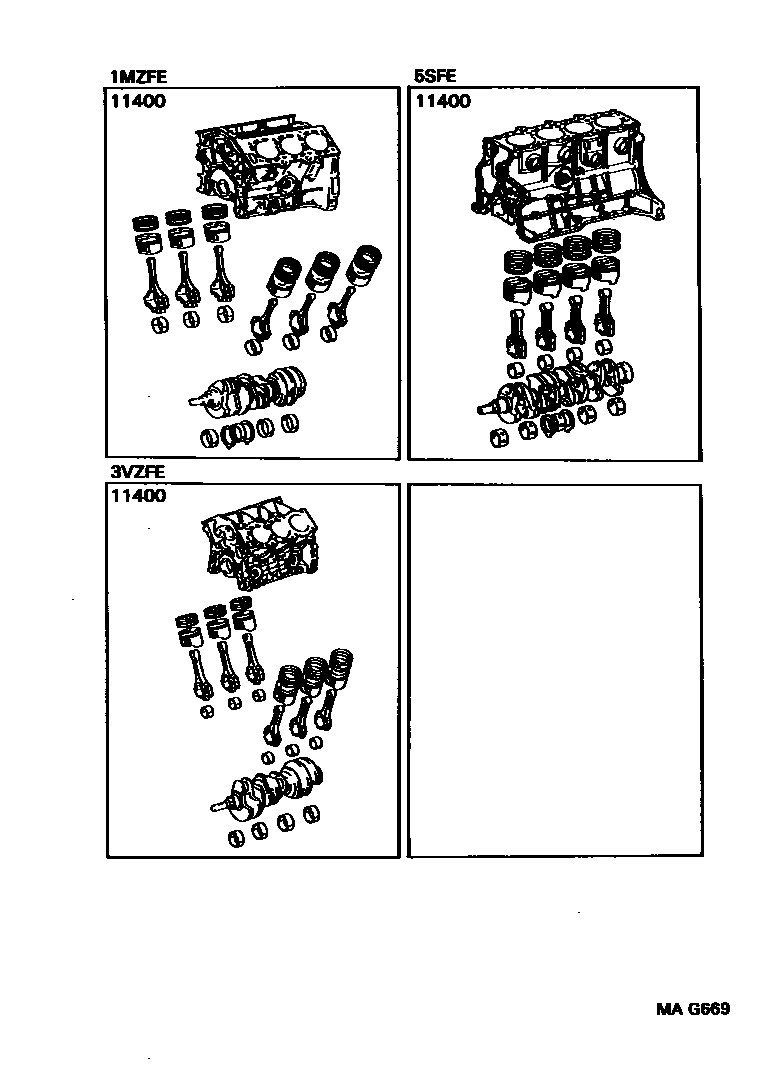

Parts diagram

11400BLOCK ASSY, SHORT

main11400-20010i199308-199608

main11400-62050i199106-199308

main11400-74180i199106-199405

main11400-74181i199405-199508

main11400-74182i199508-199608

1 parts on this diagram · 1 diagram in section
