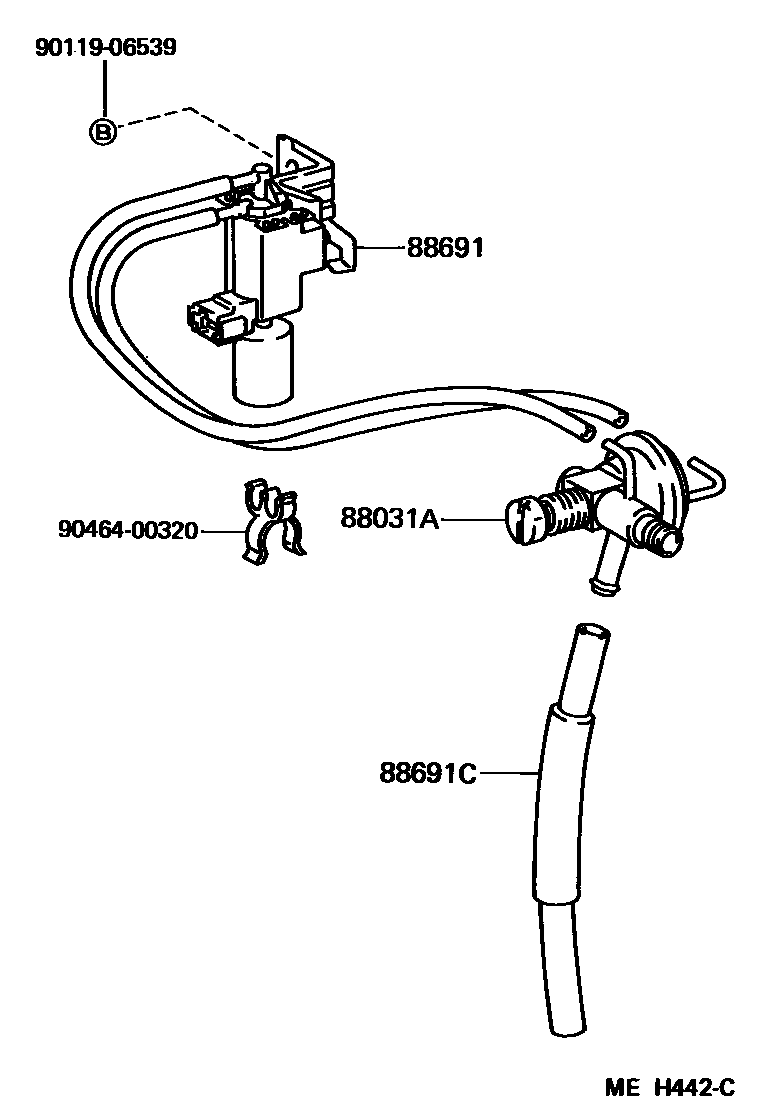

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-32010iSV2#198808-199106

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-32280iSV2#198808-199106

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-32050iSV2#198808-199106

9011906539

main90119-06539

9046400320

main90464-00320

5 parts on this diagram · 1 diagram in section
