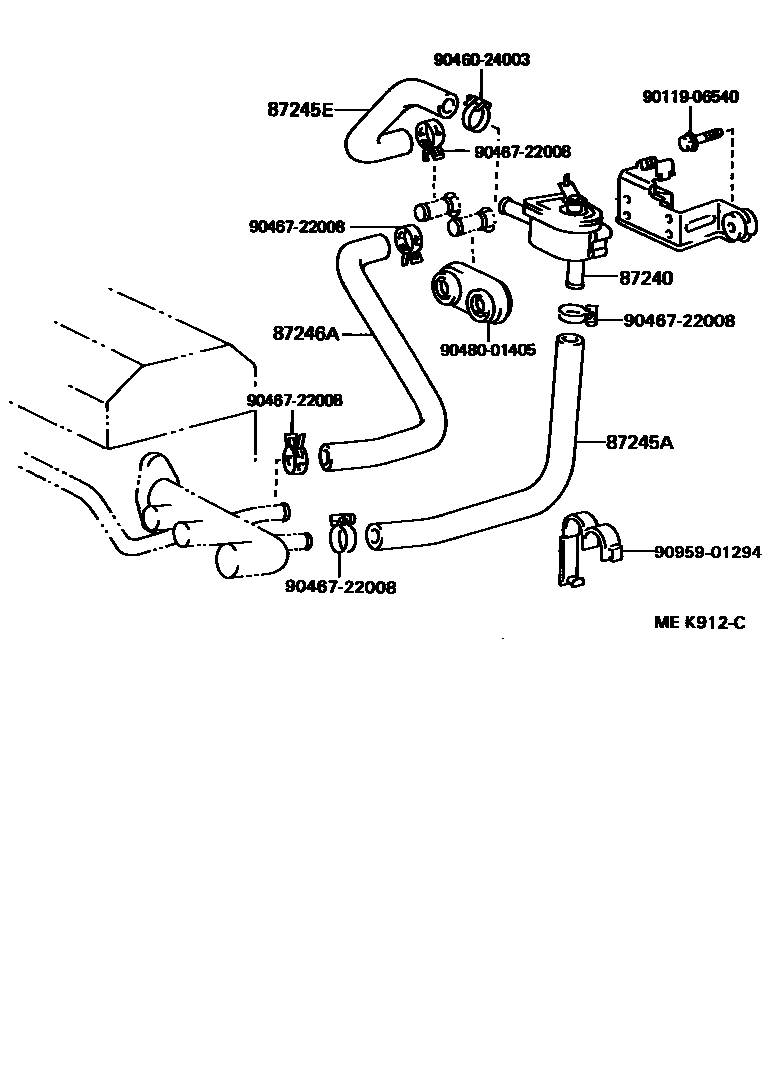

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-32030iSV2#,VZV21198808-199106

87245AHOSE, HEATER WATER, INLET A

main87245-32160iSV2#198808-199106

main87245-32170iVZV21198808-199106

87245EHOSE, HEATER WATER, INLET E

main87245-32080iSV2#,VZV21198808-199106

87246AHOSE, HEATER WATER, OUTLET A

main87245-32100iSV2#198808-199106

main87245-32190iVZV21198808-199106

9011906540

main90119-06540

9046024003

main90460-24003

9046722008

main90467-22008

9048001405

main90480-01405

9095901294

main90959-01294

9 parts on this diagram · 2 diagrams in section
