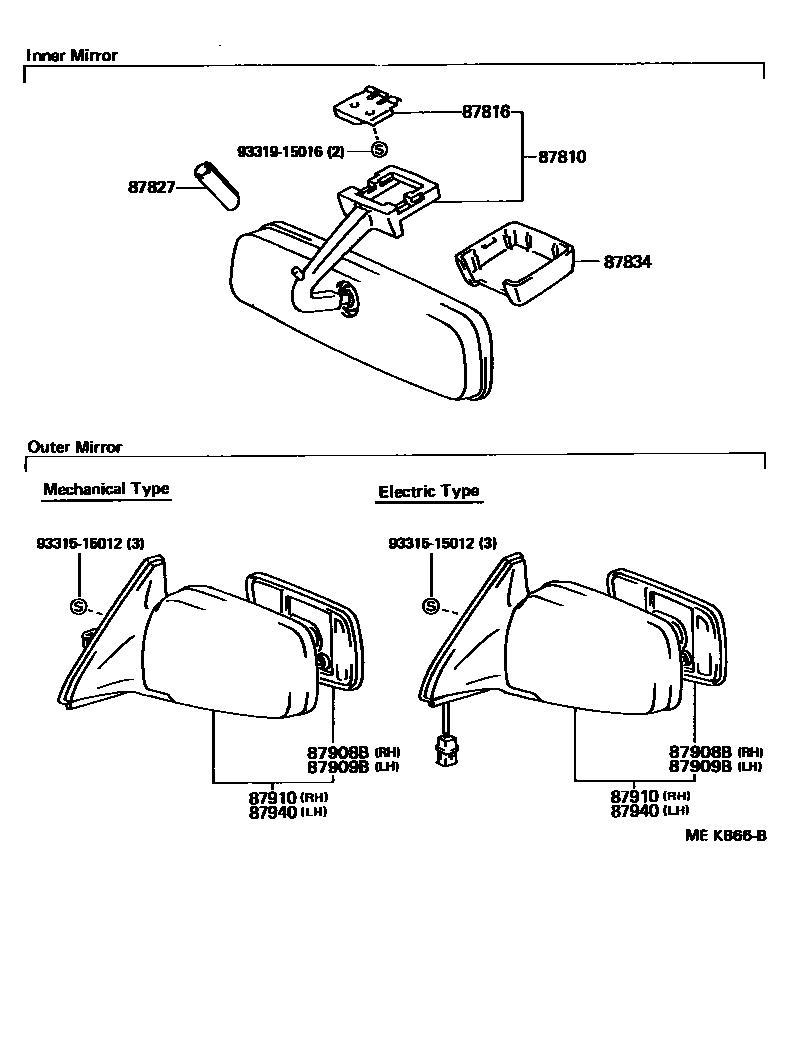

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=44
L=49
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
MAROON,TRIM3#
GRAY,TRIM1#,8#
GRAY,TRIM1#
DEEP BLUE,TRIM8#
LIGHT BROWN,TRIM4#
87908BMIRROR SUB-ASSY, RH
87909BMIRROR SUB-ASSY, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
BLACK,202
DARK RED MICA,3H3
GRAY METALLIC,167
GRAY METALLIC,167 ,29H
LIGHT BLUE METALLIC,8D8
LIGHT BROWN METALLIC,4J6
WHITE,040
RED MICA,3H4
SILVER METALLIC,173
BLUE MICA,8E3
DARK BROWN MICA,4J7
DARK RED MICA,3J5
SUPER SILVER M 3,176
LIGHT BLUE MICA M,8G2
ORANGISH GOLD M,4J8
RED MICA M,3J9
DARK BLUEISH GRAY M,185
DARK BLUEISH GRAY M,185 ,20S
DARK BLUE MICA M,8G5
BEIGE MICA M,4J1
BLEU M,8J3
87940MIRROR ASSY, OUTER REAR VIEW, LH
BLACK,202
DARK RED MICA,3H3
GRAY METALLIC,167 ,29H
GRAY METALLIC,167
LIGHT BLUE METALLIC,8D8
LIGHT BROWN METALLIC,4J6
SUPER WHITE,040
RED MICA,3H4
SILVER METALLIC,173
BLUE MICA,8E3
DARK BROWN MICA,4J7
DARK RED MICA,3J5
SUPER SILVER M 3,176
LIGHT BLUE MICA M,8G2
ORANGISH GOLD M,4J8
RED MICA M,3J9
DARK BLUEISH GRAY,185 ,20S
DARK BLUEISH GRAY,185
DARK BLUE MICA M,8G5
BEIGE MICA METALLIC,4J1
BLUE M,8J3
9331515012
main93315-15012
9331915016
main93319-15016
10 parts on this diagram · 1 diagram in section
