SEAT MOTOR & SEAT HEATER

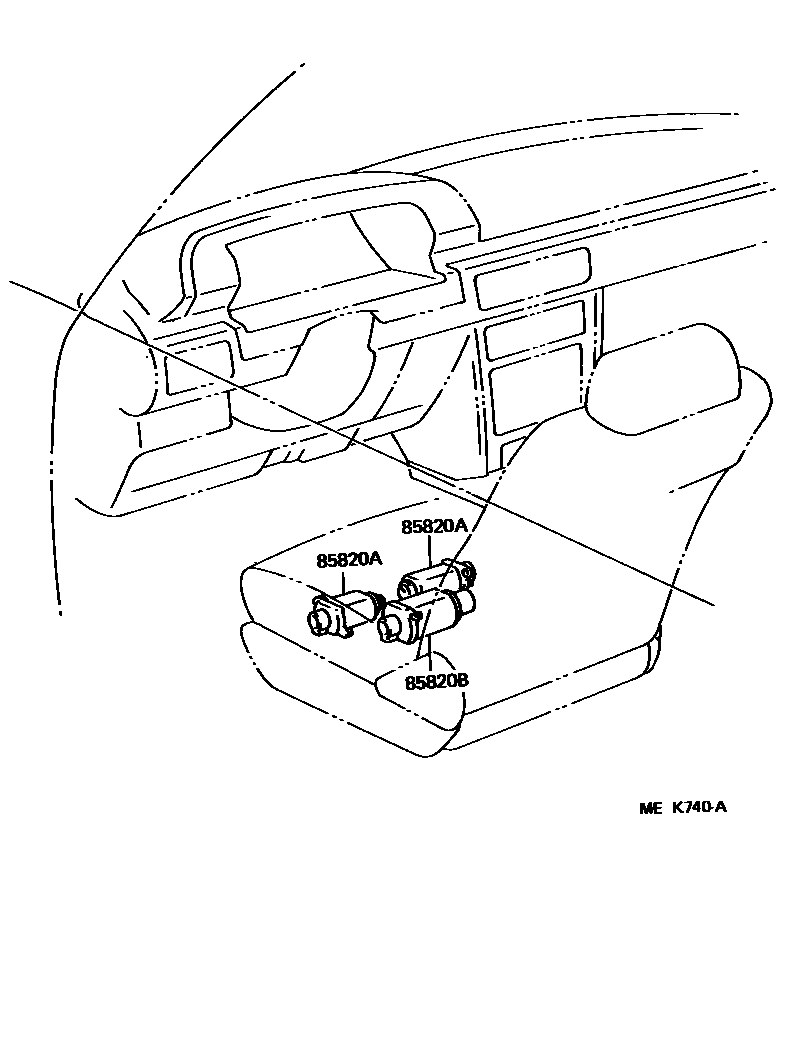

Parts diagram

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-14020i198808-199106

FRONT VERTICAL

main85820-22030i198808-199106

REAR VERTICAL

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-14010i198808-199106

2 parts on this diagram · 1 diagram in section
