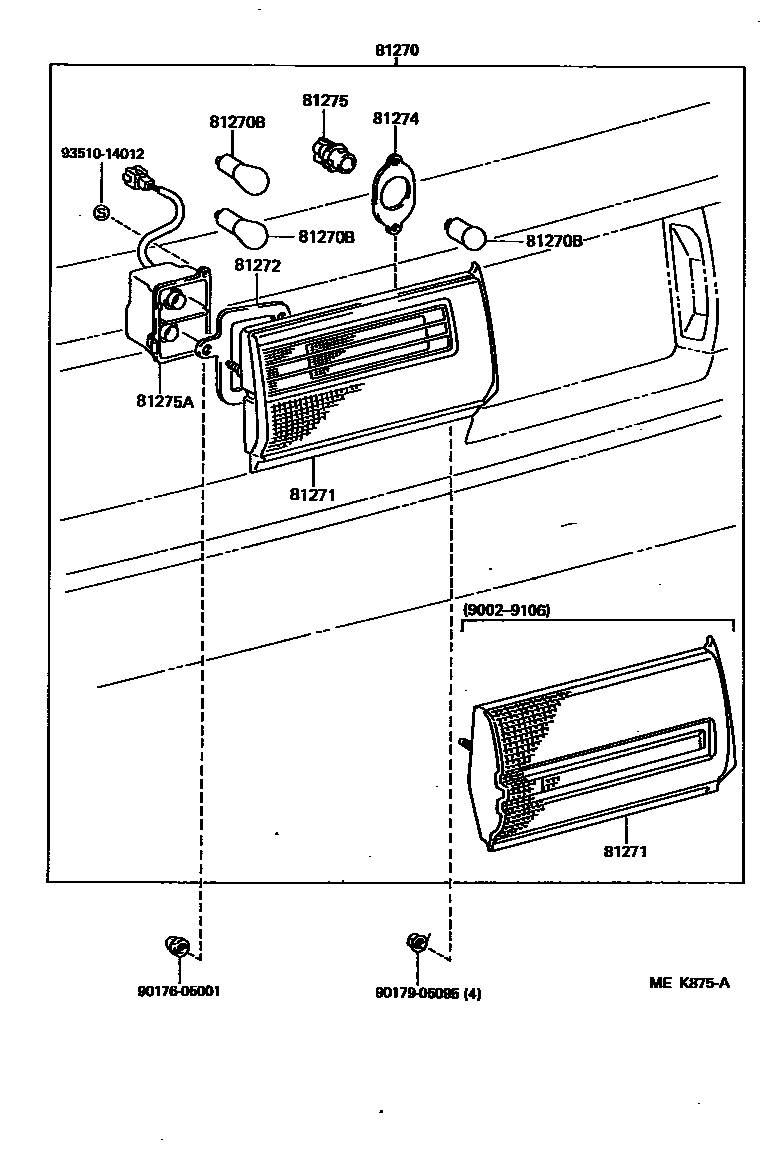

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-32091iSV2#,VZV21..SED198808-199002

RH

main81270-32130×2iSV21,VZV21..WG198808-199106

main81270-32220iSV2#,VZV21..SED199002-199106

RH

main81690-32071iSV2#,VZV21..SED198808-199002

LH

main81690-32140iSV2#,VZV21..SED199002-199106

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iSV2#,VZV21198808-199106

12V 7.5W

main90981-12018×2iSV2#,VZV21..SED198808-199106

12V 27/8W

main99132-11270×2iSV2#,VZV21..SED198808-199106

12V 27W

81271LENS, LICENSE PLATE LAMP

main81271-10141×2iSV21,VZV21..WG198808-199106

main81271-32091iSV2#,VZV21..SED198808-199002

RH

main81271-32220iSV2#,VZV21..SED199002-199106

RH

main81691-32071iSV2#,VZV21..SED198808-199002

LH

main81691-32140iSV2#,VZV21..SED199002-199106

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-32060×2iSV2#,VZV21..SED198808-199106

81274GASKET, LICENSE PLATE LAMP BODY

main81274-32060×2iSV2#,VZV21..SED198808-199002

main81274-32130×2iSV21,VZV21..WG198808-199106

main81274-32220×2iSV2#,VZV21..SED199002-199106

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12260×2iSV2#,VZV21..SED198808-199106

81275ACORD, LICENSE PLATE LAMP

main81275-32090iSV2#,VZV21..SED198808-199002

RH

main81275-32220iSV2#,VZV21..SED199002-199106

RH

main81695-32070iSV2#,VZV21..SED198808-199002

LH

main81695-32140iSV2#,VZV21..SED199002-199106

LH

9017605001

main90176-05001

9017905095

main90179-05095

9351014012

main93510-14012

10 parts on this diagram · 2 diagrams in section
