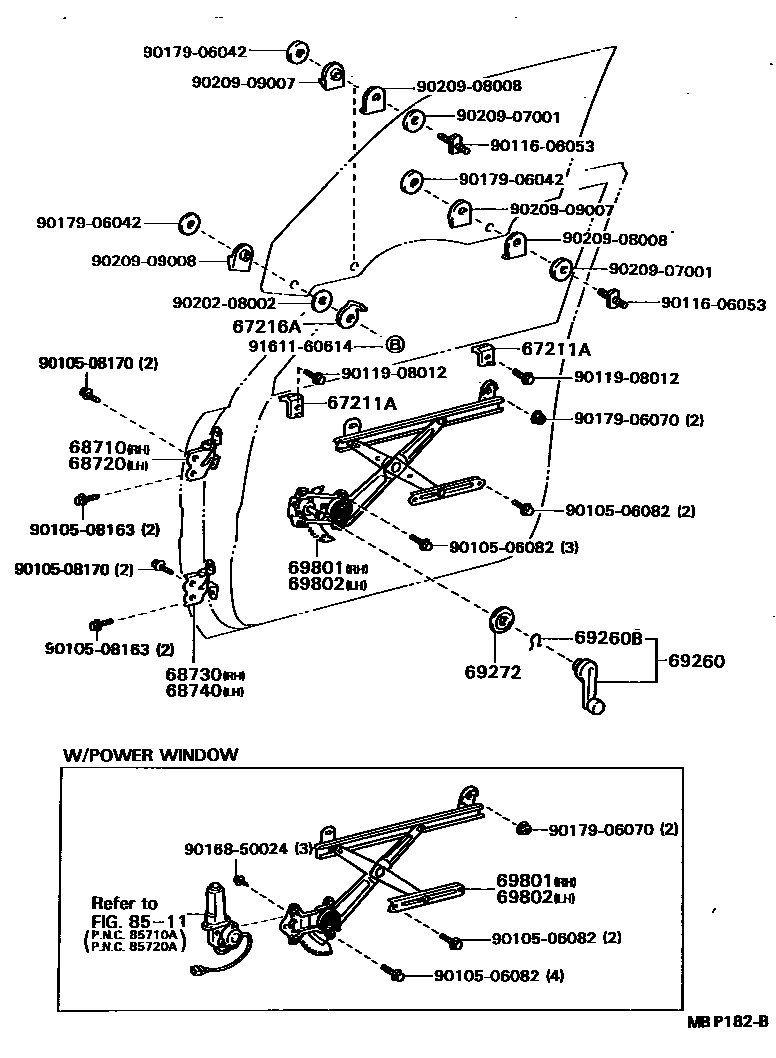

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-32010iSV2#,VZV21198808-199106

67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-32010iSV2#,VZV21198808-199106

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32030iSV2#,VZV21198808-199106

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32030iSV2#,VZV21198808-199106

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16020iSV2#,VZV21198808-199106

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16020iSV2#,VZV21198808-199106

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-14iSV2#,VZV21198808-199106

DARK BLUE,TRIM8#

main69260-22030-22iSV2#,VZV21..USA198808-199106

MAROON,TRIM3#

main69260-22030-23iSV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main69260-22030-26iSV2#,VZV21198808-199106

BROWN,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iSV2#,VZV21198808-199106

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iSV2#,VZV21..USA198808-199106

NATURAL WHITE,TRIM1#,3#,4#,8#

main69285-22010-08iSV2#,VZV21..USA198808-199106

NATURAL WHITE,TRIM1#,4#,8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-32030iSV2#,VZV21..DX,LE198808-199106

W(POWER WINDOW)

main69810-32050iSV2#,VZV21198808-199106

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-32030iSV2#,VZV21..DX,LE198808-199106

W(POWER WINDOW)

main69820-32050iSV2#,VZV21198808-199106

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9010508163

main90105-08163

9010508170

main90105-08170

9011606053

main90116-06053

9011908012

main90119-08012

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020208002

main90202-08002

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9020909008

main90209-09008

9161160614

main91611-60614

26 parts on this diagram · 1 diagram in section
