ROOF HEADLINING & SILENCER PAD

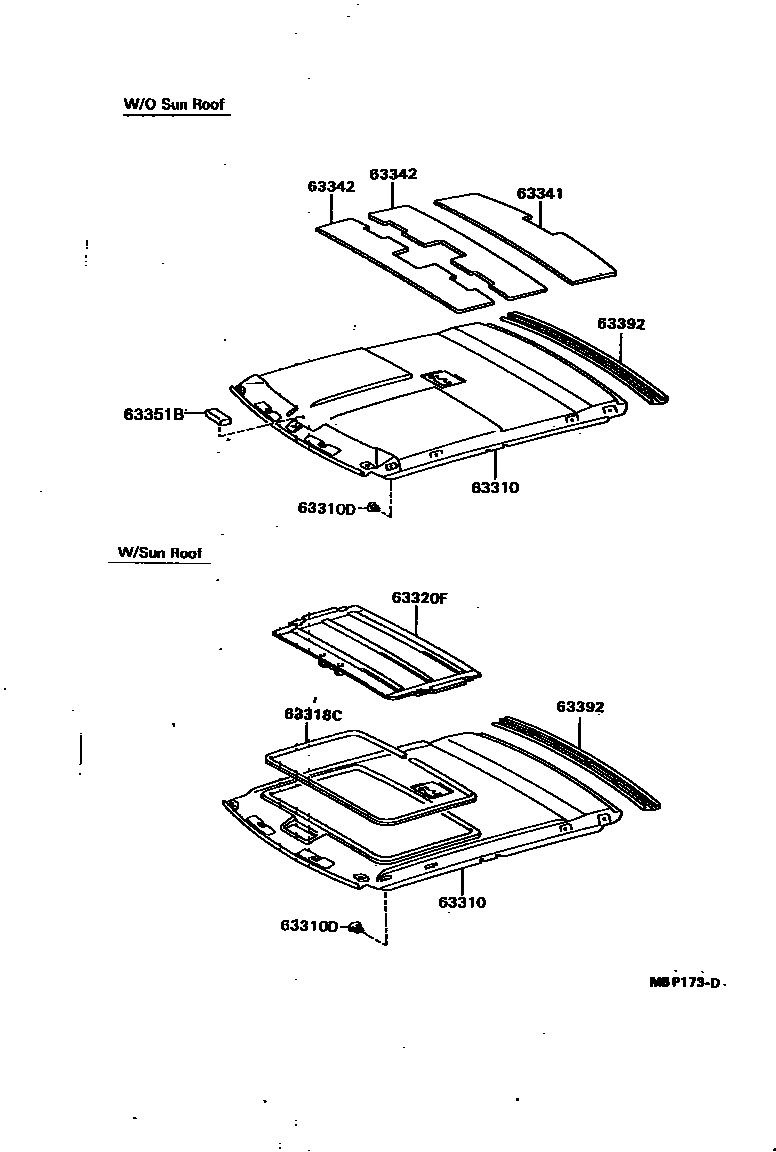

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-32150-02i198808-199106
MAROON,TRIM3#
main63310-32150-03i198808-199106
LIGHT GRAY,TRIM1#
main63310-32150-04i198808-199106
LIGHT BLUE,TRIM8#
main63310-32150-06i198808-199106
LIGHT BROWN,TRIM4#
main63310-32160-02i198808-199106
W(MOON ROOF),MAROON,TRIM3#
main63310-32160-02i198808-199008
MAROON,TRIM3#
main63310-32160-03i198808-199106
W(MOON ROOF),LIGHT GRAY,TRIM1#
main63310-32160-03i198808-198812
LIGHT GRAY,TRIM1#
main63310-32160-04i198808-199106
W(MOON ROOF),LIGHT BLUE,TRIM8#
main63310-32160-06i198808-198812
LIGHT BROWN,TRIM4#
main63310-32160-06i198808-199106
W(MOON ROOF),LIGHT BROWN,TRIM4#
main63310-32180-03i198808-199106
LIGHT GRAY,TRIM1#,8#
main63310-32180-06i198808-199106
LIGHT BROWN,TRIM4#
main63310-32190-03i198808-199106
W(MOON ROOF),LIGHT GRAY,TRIM1#,8#
main63310-32190-03i198906-198908
LIGHT GRAY,TRIM1#,8#
main63310-32190-06i198808-199106
W(MOON ROOF),LIGHT BROWN,TRIM4#
main63310-32190-06i199008-199106
LIGHT BROWN,TRIM4#
main63310-32220-03i198808-199106
W(MOON ROOF),LIGHT GRAY,TRIM1#,8#
main63310-32220-06i198808-199106
W(MOON ROOF),LIGHT BROWN,TRIM4#
main63310-32230-04i198808-198812
LIGHT BLUE,TRIM8#
sub63310-32230
main63310-32230-B0i198812-199106
LIGHT GRAY,TRIM1#
sub63310-32230
main63310-32230-D0i198812-199106
MAROON,TRIM3#
sub63310-32230
main63310-32230-E0i198812-199106
LIGHT BROWN,TRIM4#
sub63310-32230
main63310-32230-J0i198812-199106
LIGHT BLUE,TRIM8#
sub63310-32230
main63310-32251-02i198808-199106
MAROON,TRIM3#
main63310-32251-04i198808-199106
LIGHT BLUE,TRIM8#
main63310-32251-06i198808-199106
LIGHT BROWN,TRIM4#
main63310-32251-13i198808-199106
LIGHT GRAY,TRIM1#
main63310-32261-02i198808-199106
W(MOON ROOF),MAROON,TRIM3#
main63310-32261-03i198808-199106
W(MOON ROOF),LIGHT GRAY,TRIM1#
main63310-32261-04i198808-199106
W(MOON ROOF),LIGHT BLUE,TRIM8#
main63310-32261-06i198808-199106
W(MOON ROOF),LIGHT BROWN,TRIM4#
main63310-32270-02i198808-199106
MAROON,TRIM3#
main63310-32270-03i198808-199106
LIGHT GRAY,TRIM1#
main63310-32270-04i198808-199106
LIGHT BLUE,TRIM8#
main63310-32270-06i198808-199106
LIGHT BROWN,TRIM4#
main63310-32280-03i198808-199106
LIGHT GRAY,TRIM1#,8#
main63310-32280-06i198808-199008
LIGHT BROWN,TRIM4#
main63310-32320-03i198808-199106
LIGHT GRAY,TRIM1#,8#
main63310-32320-06i198808-199106
LIGHT BROWN,TRIM4#
main63310-32340-03i198808-199106
LIGHT GRAY,TRIM1#,8#
main63310-32340-06i198808-199106
LIGHT BROWN,TRIM4#
63310DCLIP, ROOF HEADLINING
main90467-06048-16i198808-199106
LIGHT BROWN,TRIM4#
sub90467-06048
main90467-06048-23i198808-199106
LIGHT GRAY,TRIM1#,8#
sub90467-06048
main90467-06072-B0i198808-199106
LIGHT GRAY,TRIM1#
sub90467-06072
main90467-06072-D0i198808-199106
MAROON,TRIM3#
sub90467-06072
main90467-06072-E0i198808-199106
W(MOON ROOF),LIGHT BROWN,TRIM4#
sub90467-06072
main90467-06072-E0i198808-199106
LIGHT BROWN,TRIM4#
sub90467-06072
main90467-06072-J0i198808-199106
LIGHT BLUE,TRIM8#
sub90467-06072
main90467-09032-02i198808-199106
MAROON,TRIM3#
sub90467-09032
main90467-09032-03i198808-199106
GRAY,TRIM1#,8#
sub90467-09032
main90467-09032-16i198808-199106
LIGHT BROWN,TRIM4#
sub90467-09032
63318CMOULDING, SUN ROOF OPENING TRIM
main63318-32010-B1i198808-198812
LIGHT GRAY,TRIM1#
sub63318-32010
sub63318-32030
main63318-32010-B1i198808-198812
LIGHT GRAY,TRIM1#,8#
sub63318-32010
sub63318-32030
main63318-32010-D1i198808-198812
MAROON,TRIM3#
sub63318-32010
sub63318-32030
main63318-32010-E0i198808-198812
LIGHT BROWN,TRIM4#
sub63318-32010
sub63318-32030
main63318-32010-J1i198808-198812
LIGHT BLUE,TRIM8#
sub63318-32010
sub63318-32030
main63318-32030-B0i198812-199106
LIGHT GRAY,TRIM1#,8#
main63318-32030-B0i198812-199106
LIGHT GRAY,TRIM1#
main63318-32030-D0i198812-199106
MAROON,TRIM3#
main63318-32030-E0i198812-199106
LIGHT BROWN,TRIM4#
main63318-32030-J0i198812-199106
LIGHT BLUE,TRIM8#
63320FHEADLINING ASSY, SUN ROOF
main63320-32011-02i198808-198912
MAROON,TRIM3#
sub63320-32011
main63320-32011-03i198808-198912
LIGHT GRAY,TRIM1#,8#
sub63320-32011
main63320-32011-03i198808-198912
LIGHT GRAY,TRIM1#
sub63320-32011
main63320-32011-04i198809-198912
LIGHT BLUE,TRIM8#
sub63320-32011
main63320-32011-06i198808-198912
BROWN,TRIM4#
sub63320-32011
main63320-32012-02i198912-199106
MAROON,TRIM3#
sub63320-32012
main63320-32012-03i198912-199106
LIGHT GRAY,TRIM1#
sub63320-32012
main63320-32012-04i198912-199106
LIGHT BLUE,TRIM8#
sub63320-32012
main63320-32012-06i198912-199106
BROWN,TRIM4#
sub63320-32012
63341PAD, ROOF SILENCER, NO.1
main63341-32020i198808-199006
sub63341-22H92
main63341-32040i199006-199106
sub63341-22H92
63342PAD, ROOF SILENCER, NO.2
main63342-32010i198808-199006
sub63341-22H92
main63342-32040i199006-199106
sub63341-22H92
63351BPAD, ROOF HEADLINING
main63351-32010i198808-199106
63392TRIM, ROOF HEADLINING, REAR
main63305-32050-B0i198908-199106
MEDIUM GRAY,TRIM1#
sub63305-32050
main63305-32050-D0i198808-199106
MAROON,TRIM3#
sub63305-32050
main63305-32050-E0i198808-199106
BROWN,TRIM4#
sub63305-32050
main63305-32050-J0i198808-199106
LIGHT BLUE,TRIM8#
sub63305-32050
main63305-32070-02i198808-199106
MAROON,TRIM3#
main63305-32070-03i198808-199106
MEDIUM GRAY,TRIM1#
main63305-32070-04i198808-199106
DARK BLUE,TRIM8#
main63305-32070-06i198808-199106
BROWN,TRIM4#

8 parts on this diagram · 2 diagrams in section
