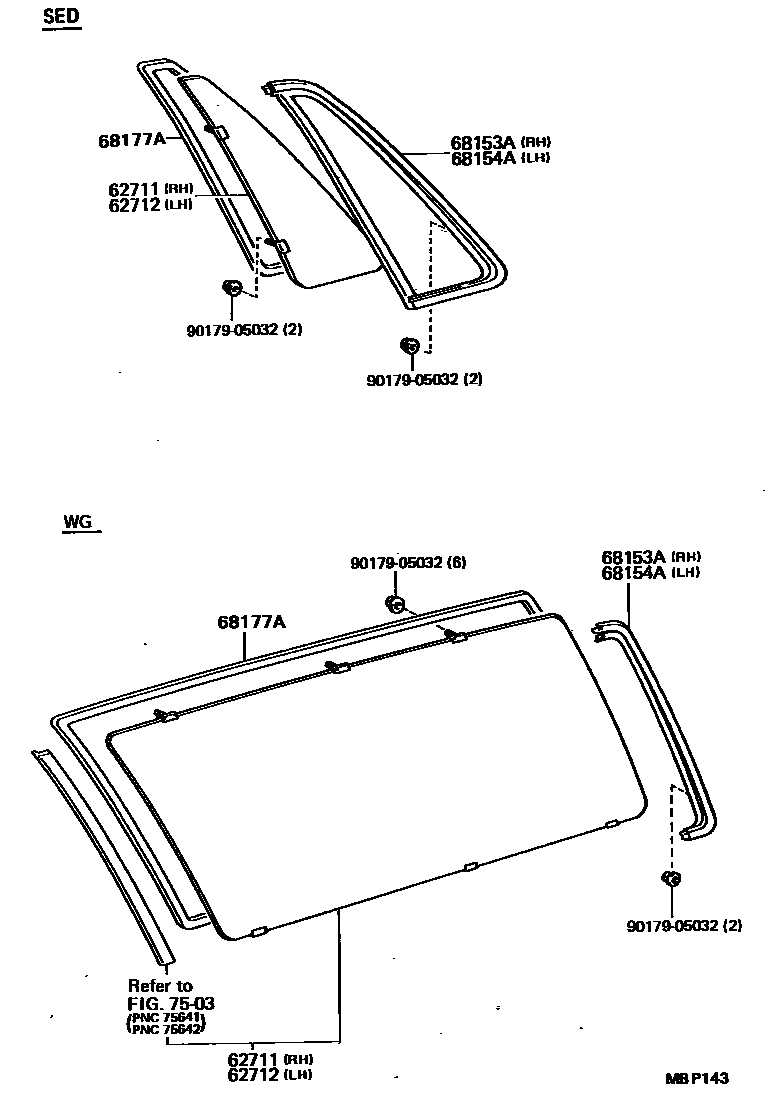

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62710-32010198808-199106

main62710-32020198808-199106

main62710-32040198808-199106

main62710-32050198808-199106

main62711-32180198808-199106

main62711-32210198808-199106

62712GLASS, QUARTER WINDOW, LH

main62712-32190198808-199106

main62712-32240198808-199106

main62720-32010198808-199106

main62720-32020198808-199106

68153AMOULDING, QUARTER WINDOW NO.2 GLASS, RH

main68153-32040198808-199106

main68153-32050198808-199106

68154AMOULDING, QUARTER WINDOW NO.2 GLASS, LH

main68154-32040198808-199106

main68154-32050198808-199106

68177ASEAL, QUARTER WINDOW NO.2 GLASS, NO.1

main68177-32030198808-199106

7503SIDE MOULDING

→ Go to FIG 75-03

9017905032

main90179-05032

7 parts on this diagram · 1 diagram in section
