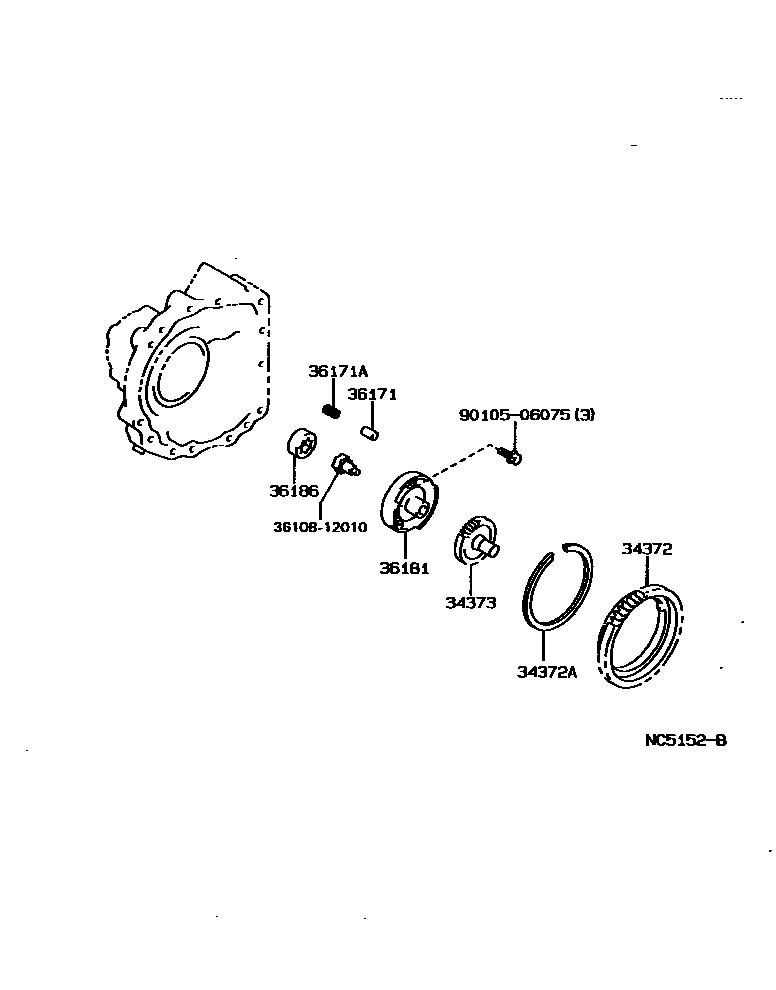

TRANSFER OIL PUMP

34372GEAR, TRANSFER OIL PUMP DRIVE

main34372-12010iSV25..4FC198808-199106

sub34372-74010

34372ARING, SHAFT SNAP (FOR TRANSFER OIL PUMP DRIVE GEAR)

main90520-99005iSV25..4FC198808-199106

34373GEAR, TRANSFER OIL PUMP DRIVEN

main34373-12010iSV25..4FC198808-199106

36171VALVE, TRANSFER OIL COOLER RELIEF

main36171-12010iSV25..4FC198808-199106

36171ASPRING, COMPRESSION(FOR TRANSFER OIL COOLER RELIEF VALVE)

main90501-06049iSV25..4FC198808-199106

36181BODY, TRANSFER OIL PUMP

main36181-32010iSV25..4FC198808-199106

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-12010iSV25..4FC198808-199106

3610812010ROTOR SUB-ASSY, TRANSFER OIL PUMP DRIVE

main36108-12010

9010506075

main90105-06075

9 parts on this diagram · 1 diagram in section
