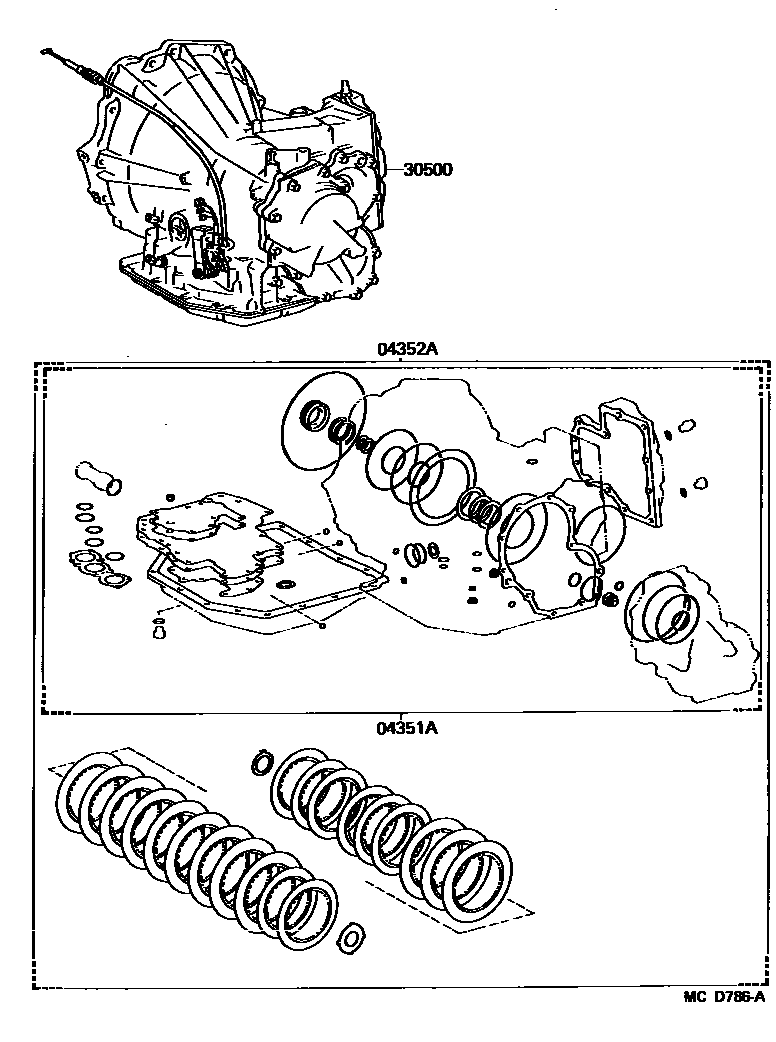

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20080iSV21..4FC..STD198808-199106

main04351-20090iSV21..4FC..(DX,LE)198808-199106

main04351-32050iVZV21..4FC198808-199006

main04351-32051iVZV21..4FC199006-199106

main04351-32060iSV25..4FC198808-199106

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-20020iSV21..4FC..STD198808-199106

main04352-20030iSV21..4FC..(DX,LE)198808-199106

main04352-32050iVZV21..4FC198808-199006

main04352-32051iVZV21..4FC199006-199106

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32320iSV21..4FC..DX; SV21..4FC..LE..CND; SV21..SED..LE..USA198808-199106

main30500-32330iSV21..4FC..STD..USA198808-199106

main30500-32460iVZV21..4FC198808-199105

main30500-32461iVZV21..4FC199105-199106

main30500-32480iSV25..4FC198808-199105

main30500-32481iSV25199105-199106

3 parts on this diagram · 2 diagrams in section
