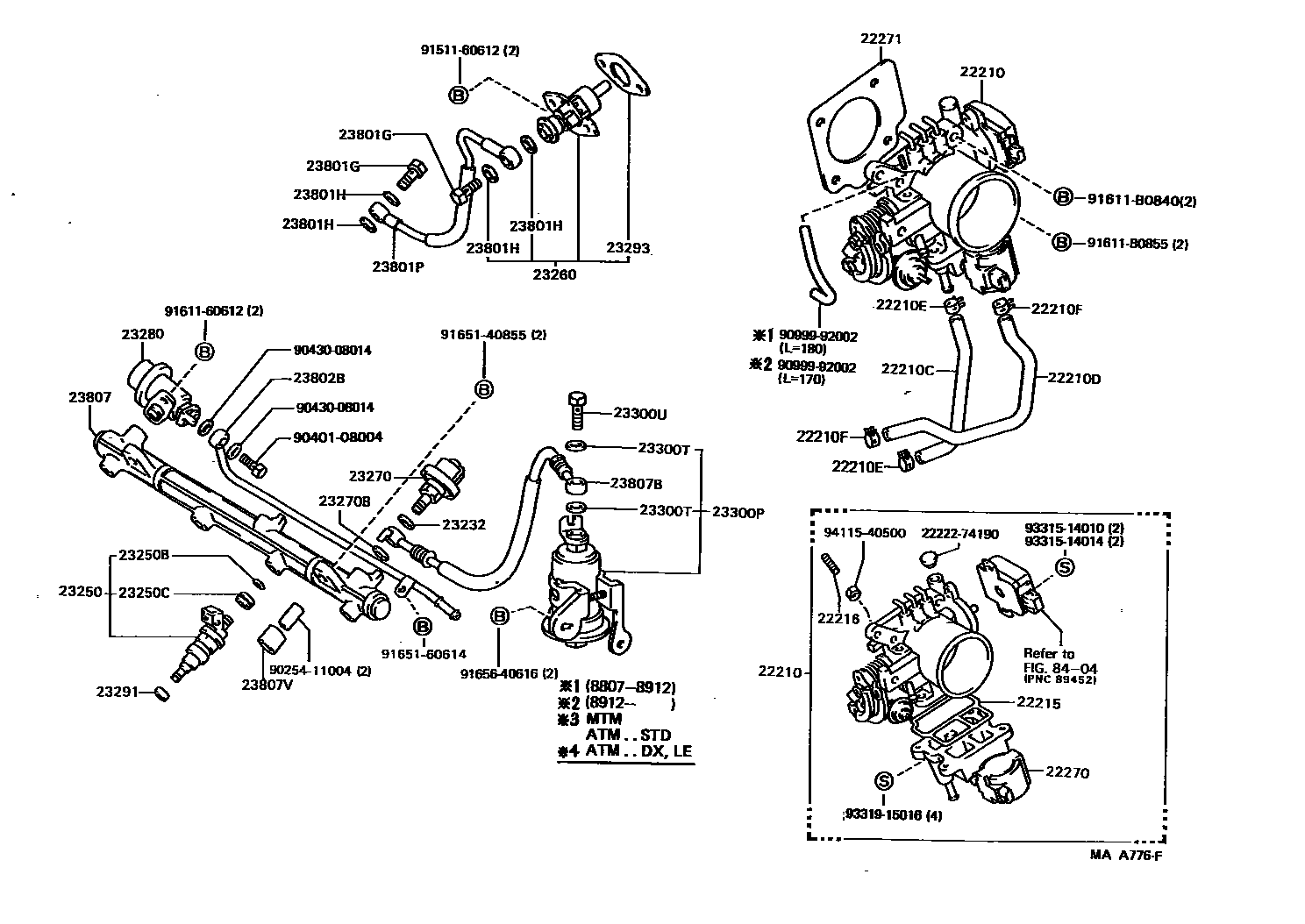

FUEL INJECTION SYSTEM
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22215GASKET, THROTTLE BODY COVER
22216SCREW, DASH POT ADJUSTING
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
2222274190GASKET, INTAKE AIR CONTROL VALVE, NO.2
main22222-74190
9025411004
main90254-11004
9040108004
main90401-08004
9043008014
main90430-08014
9099992002
main90999-92002
9151160612
main91511-60612
9161160612
main91611-60612
91611B0840
main91611-B0840
91611B0855
main91611-B0855
9165140855
main91651-40855
9165160614
main91651-60614
9165640616
main91656-40616
9331514010
main93315-14010
9331514014
main93315-14014
9331915016
main93319-15016
9411540500
main94115-40500
46 parts on this diagram · 3 diagrams in section
