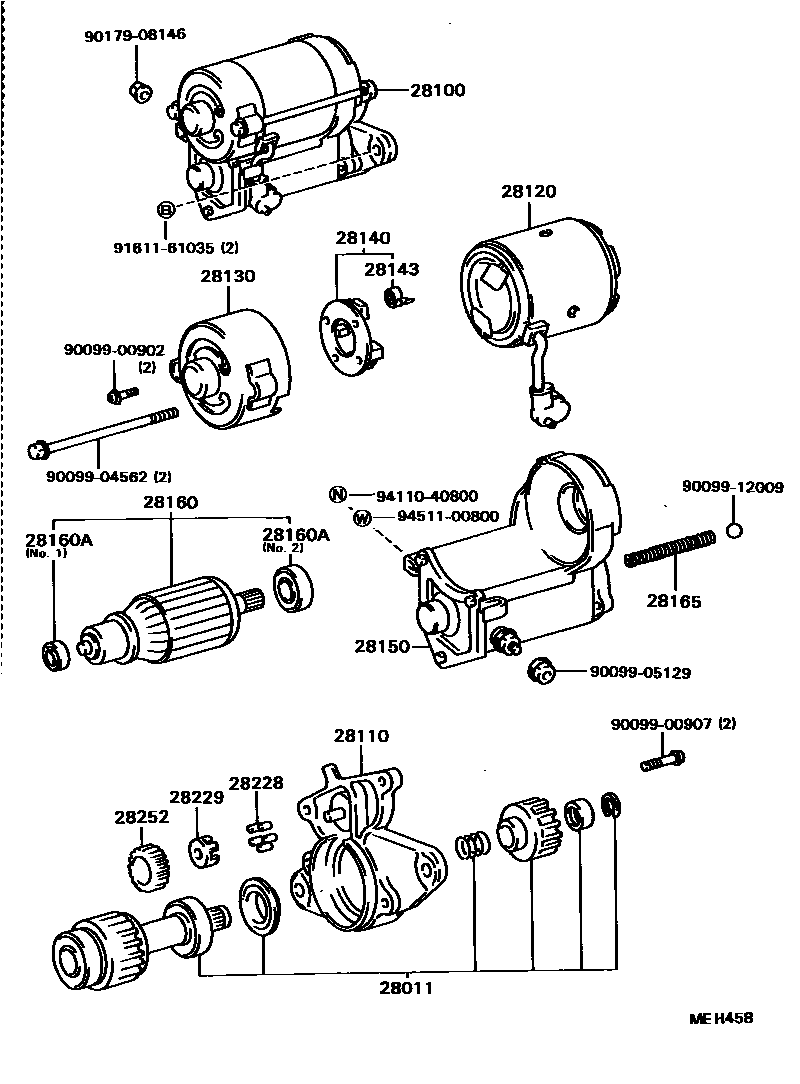

STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74011i3SFE,2VZFE..SV2#,VZV21198808-198912

sub28011-74060

main28011-74011i2VZFE..VZV21;3SFE..SV21..STD198912-199001

W/O(COLD SPEC)

sub28011-74060

main28011-74060i3SFE..SV2#..(DX,LE)..USA199001-199106

W/O(COLD SPEC)

main28011-74070i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28100STARTER ASSY

main28100-62011i2VZFE..VZV21..USA198808-199106

12V 1.0KW,W/O(COLD SPEC)

sub28100-74070

main28100-62021i2VZFE..VZV21198808-199106

12V 1.4KW

sub28100-74050

main28100-74011i3SFE..SV2#..(DX,LE)..USA198808-199106

12V 1.0KW

main28100-74011i3SFE..SV21..STD..USA198808-199106

12V 1.0KW,W/O(COLD SPEC)

main28100-74021i3SFE..SV21..STD..USA198808-198912

12V 1.4KW,12V 1.4KW,(COLD SPEC)

sub28100-74090

main28100-74021i3SFE..SV2#..DX,LE;3SFE..SV21..STD..CND198808-198912

12V 1.4KW

sub28100-74090

main28100-74070i2VZFE..VZV21198912-199002

12V 1.4KW

main28100-74090i3SFE..SV21..STD198912-199106

12V 1.4KW,COLD SPEC

main28100-74090i3SFE..SV2#..DX,LE198912-199106

12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-62010i2VZFE..VZV21..USA198808-199106

W/O(COLD SPEC)

main28110-62020i2VZFE..VZV21198808-199106

main28110-74010i3SFE..SV2#..(DX,LE)..USA198808-199106

W/O(COLD SPEC)

main28110-74020i3SFE..SV2#..DX,LE;3SFE..SV21..STD..CND198808-198912

COLD SPEC

main28110-74090i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28120YOKE ASSY, STARTER

main28120-15090i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198808-198912

COLD SPEC

main28120-15090i2VZFE..VZV21198912-199106

main28120-26071i3SFE,2VZFE..SV2#,VZV21..(DX,LE)..USA198808-199106

W/O(COLD SPEC)

main28120-74070i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-62020i2VZFE..VZV21198808-199106

main28130-74010i3SFE..SV21..STD..USA198808-199106

W/O(COLD SPEC)

main28130-74020i3SFE..SV2#..DX,LE;3SFE..SV21..STD..CND198808-198912

COLD SPEC

main28130-74090i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-74010i3SFE..SV21..STD..USA198808-199106

W/O(COLD SPEC)

main28140-74020i3SFE..SV21..STD..USA198808-198912

COLD SPEC

main28140-74020i2VZFE..VZV21198912-199106

main28140-74070i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28143SPRING, STARTER BRUSH

main90099-17112i3SFE,2VZFE..SV2#,VZV21198808-199106

28150SWITCH ASSY, MAGNET STARTER

main28150-74010i3SFE..SV21..STD..USA198808-199106

W/O(COLD SPEC)

main28150-74020i3SFE..SV21..STD..USA198808-198912

COLD SPEC

main28150-74070i2VZFE..VZV21198912-199106

COLD SPEC

28160ARMATURE ASSY, STARTER

main28160-15090i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198808-198908

COLD SPEC

sub28160-15091

main28160-15091i3SFE,2VZFE..SV2#,VZV21..DX,LE198908-198912

COLD SPEC

main28160-15091i2VZFE..VZV21198912-199106

main28160-26070i3SFE..SV21..STD..USA198808-198908

W/O(COLD SPEC)

sub28160-26071

main28160-26071i3SFE,2VZFE..SV2#,VZV21..(DX,LE)..USA198908-199106

W/O(COLD SPEC)

main28160-74070i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28160ABEARING, STARTER ARMATURE

main28253-45020i3SFE..SV21..STD..USA198808-199106

W/O(COLD SPEC),NO.1

main28253-45020i3SFE..SV21..STD..USA198808-199106

NO.1

main90099-10113i3SFE..SV21..STD..USA198808-199106

W/O(COLD SPEC),NO.2

main90099-10113i3SFE,2VZFE..SV2#,VZV21..(DX,LE)..USA198808-199106

NO.2

main90099-10143i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198808-199106

NO.2

main90099-10143i3SFE..SV21..STD..USA198808-198912

COLD SPEC,NO.2

main90099-10144i3SFE..SV21..STD..USA198808-198912

COLD SPEC,NO.1

main90099-10144i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198808-199106

NO.1

main90099-10196i3SFE..SV2#..DX,LE198912-199106

NO.1

main90099-10196i3SFE..SV2#..DX,LE198912-199106

COLD SPEC,NO.1

main90099-10197i3SFE..SV2#..DX,LE198912-199106

NO.2

main90099-10197i3SFE..SV2#..DX,LE198912-199106

COLD SPEC,NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74010i3SFE,2VZFE..SV2#,VZV21198808-198912

main28165-74010i2VZFE..VZV21;3SFE..SV21..STD198912-199106

W/O(COLD SPEC)

main28165-74070i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i3SFE,2VZFE..SV2#,VZV21198808-199106

28229RETAINER, STARTER IDLE GEAR

main28229-26040i3SFE,2VZFE..SV2#,VZV21198808-198912

main28229-26040i2VZFE..VZV21;3SFE..SV21..STD198912-199106

W/O(COLD SPEC)

main28229-74070i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

28252GEAR, STARTER IDLE

main28254-45020i3SFE..SV21..STD..USA198808-199106

W/O(COLD SPEC)

main28254-54070i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198808-198912

COLD SPEC

main28254-54070i2VZFE..VZV21198912-199106

main28254-74070i3SFE..SV2#..DX,LE198912-199106

COLD SPEC

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161035

main91611-61035

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 3 diagrams in section
