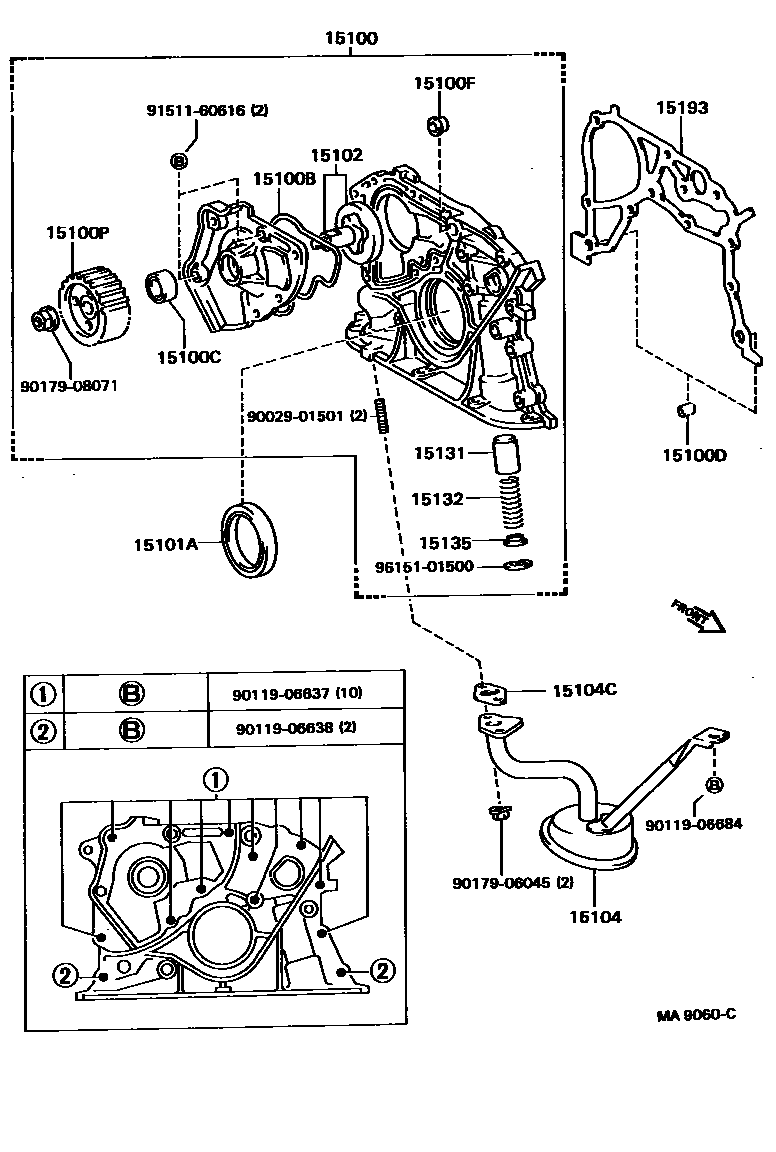

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-62020i2VZFE..VZV21198808-199106

main15100-74010i3SFE..SV2#198808-199106

15100BRING, O(FOR OIL PUMP)

main15188-63010×2i3SFE..SV2#198808-199106

15100CSEAL(FOR OIL PUMP)

main15165-70010×2i3SFE..SV2#198808-199106

main90311-40006i2VZFE..VZV21198808-198911

main90311-40013i2VZFE..VZV21198911-199106

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i3SFE..SV2#198808-199106

15100FBUSH (FOR OIL PUMP)

main90029-38300i3SFE..SV2#198808-198911

main90029-38302i3SFE..SV2#198911-199106

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-74020i3SFE..SV2#198808-199106

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i3SFE..SV2#198808-198909

main90311-42026i3SFE..SV2#198909-199106

15102ROTOR SET, OIL PUMP

main15102-63010i3SFE..SV2#198808-199106

15104STRAINER SUB-ASSY, OIL

main15104-62010i2VZFE..VZV21198808-199106

main15104-88360i3SFE..SV2#198808-198912

main15104-88380i3SFE..SV2#198912-199106

15104CGASKET(FOR OIL STRAINER)

main15147-62020i2VZFE..VZV21198808-199106

main15149-74020i3SFE..SV2#198907-199106

main15149-88360i3SFE..SV2#198808-198907

15131VALVE, OIL PUMP RELIEF

main15131-24010i2VZFE..VZV21; 3SFE..SV2#198808-199106

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3SFE..SV2#198808-199106

main15132-62010i2VZFE..VZV21198808-199106

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i2VZFE..VZV21; 3SFE..SV2#198808-199106

15193GASKET, OIL PUMP

main15197-63020i3SFE..SV2#198808-198907

main15197-63021i3SFE..SV2#198907-199106

9002901501

main90029-01501

9011906637

main90119-06637

9011906638

main90119-06638

9011906684

main90119-06684

9017906045

main90179-06045

9017908071

main90179-08071

9151160616

main91511-60616

9615101500

main96151-01500

22 parts on this diagram · 2 diagrams in section
