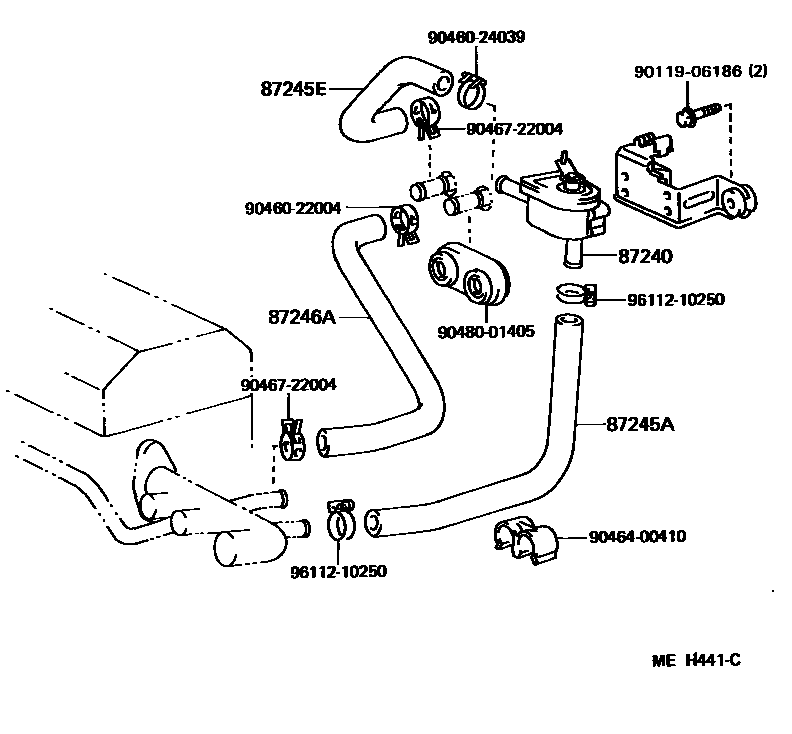

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-32030iSV21198608-198710

87245AHOSE, HEATER WATER, INLET A

main87245-32160iSV21198608-198710

main87245-32170iVZV21198802-198808

87245EHOSE, HEATER WATER, INLET E

main87245-32080iSV21198608-198710

87246AHOSE, HEATER WATER, OUTLET A

main87245-32100iSV21198608-198710

main87245-32190iVZV21198802-198808

9011906186

main90119-06186

9046022004

main90460-22004

9046024039

main90460-24039

9046400410

main90464-00410

9046722004

main90467-22004

9048001405

main90480-01405

9611210250

main96112-10250

11 parts on this diagram · 2 diagrams in section
