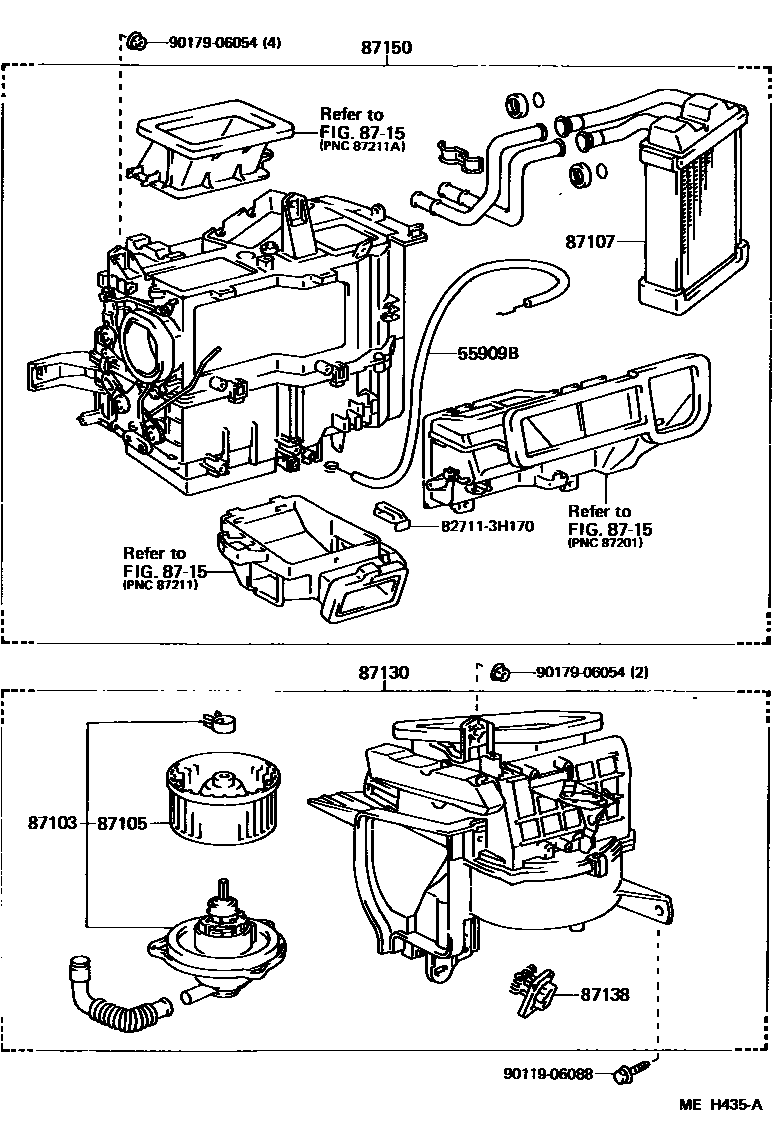

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1LEVER HEATER 0002 1PUSH HEATER

55909BCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-32120iSV21198608-198708

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-32030iSV21198608-198710

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32020iSV21198608-198710

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-32070iSV21198608-198710

main87107-32071iSV2#,VZV21198712-198808

87130BLOWER ASSY, HEATER, FRONT

main87130-32100iSV21198608-198708

main87130-32110iSV21..LE198608-198710

W/*PHC

87138RESISTOR, HEATER BLOWER

main87138-32030iSV2#,VZV21..LE198710-198808

main87138-32040iSV21..DX,STD198708-198710

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-32120iSV21198608-198708

main87150-32130iSV21..LE198608-198710

W/*PHC

827113H170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H170

9011906088

main90119-06088

9017906054

main90179-06054

11 parts on this diagram · 2 diagrams in section
