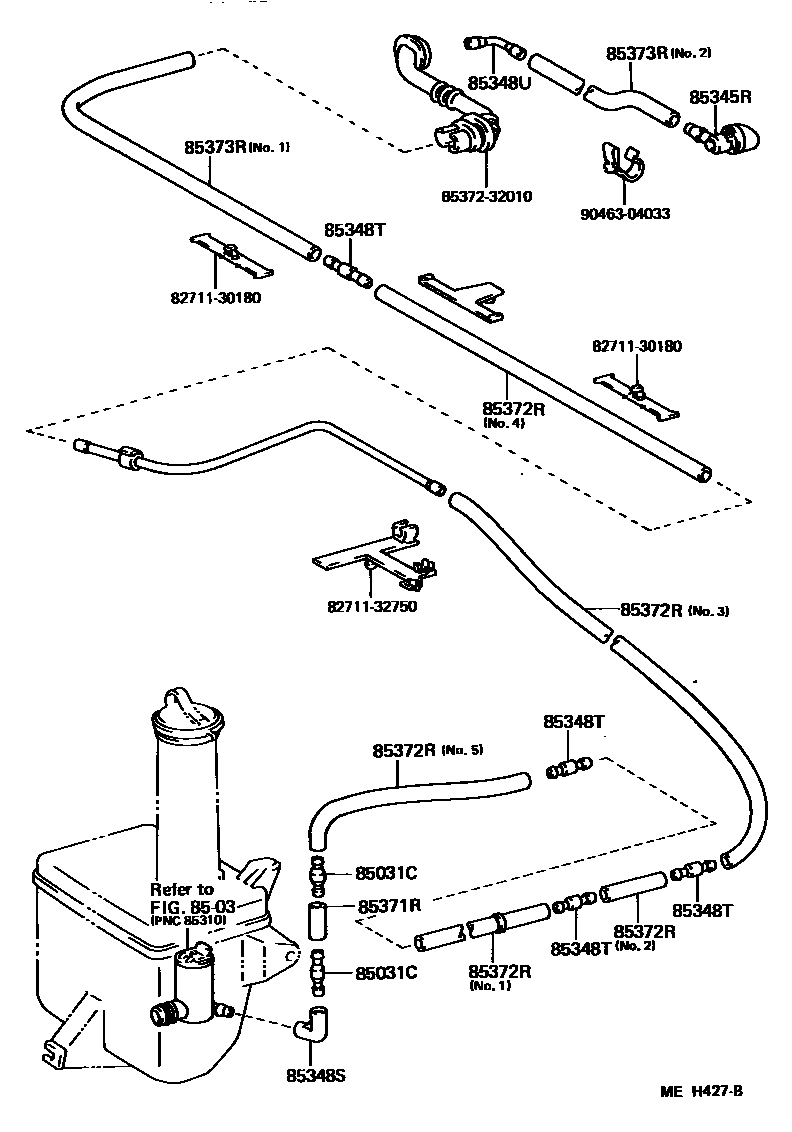

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85031-30010×2iSV21,VZV21..WG198710-198808

85345RNOZZLE, REAR WASHER

main85345-32010iSV21..WG198608-198710

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iSV21,VZV21..WG198710-198808

main85355-20070iSV21..WG198608-198705

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122×3iSV21..WG198608-198710

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-32020iSV21..WG198608-198710

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iSV21,VZV21..WG198710-198808

L=1000

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iSV21..WG198608-198710

L=1000(*H,L=60),NO.5,NO.2

main90099-33366iSV21,VZV21..WG198710-198808

L=1000(*H,L=60),NO.2

main90446-06013iSV21..WG198608-198710

L=1000(*H,L=300),NO.2

main90446-07001iSV21,VZV21..WG198710-198808

L=1800,NO.3,NO.4

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33221iSV21..WG198608-198710

L=2000(*H,L=1100),NO.1

main90099-33299iSV21,VZV21..WG198710-198808

L=1000

main90446-06013iSV21..WG198608-198710

L=1000(*H,L=300),NO.2

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8271132750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32750

8537232010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-32010

9046304033

main90463-04033

13 parts on this diagram · 1 diagram in section
