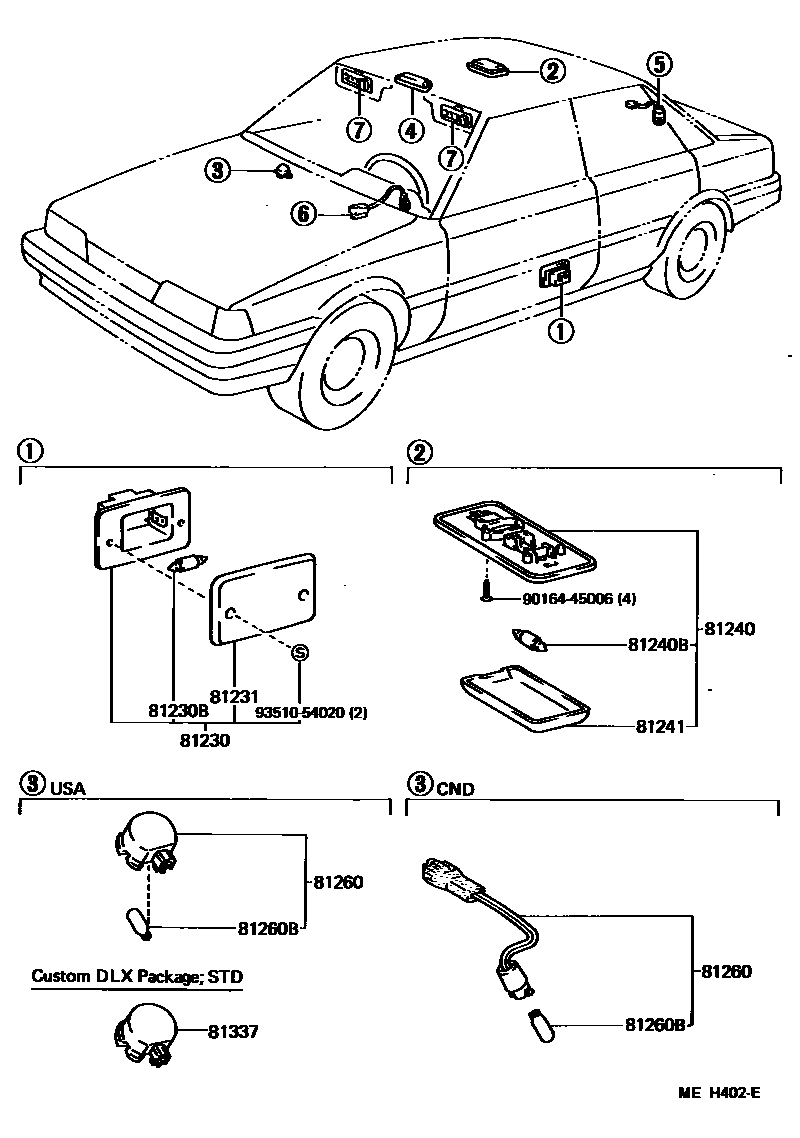

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-14040198608-198808

81230BBULB(FOR COURTESY LAMP)

main99132-13050198608-198808

81231LENS, COURTESY LAMP

main81231-30100198608-198808

81240LAMP ASSY, ROOM, NO.1

main81240-22081-04198608-198808

main81240-22081-12198608-198808

main81240-22081-23198608-198808

main81240-22081-35198608-198808

81240BBULB, ROOM LAMP, NO.1

main99132-12100198608-198808

81241LENS, ROOM LAMP, NO.1

main81241-20060198608-198808

81260LAMP ASSY, GLOVE BOX

main81260-32060198608-198808

main81260-32071198608-198808

81260BBULB(FOR GLOVE BOX)

main90981-11018198608-198808

81337BODY, GLOVE BOX LAMP

main81337-32010198612-198808

9016445006

main90164-45006

9351054020

main93510-54020

11 parts on this diagram · 2 diagrams in section
