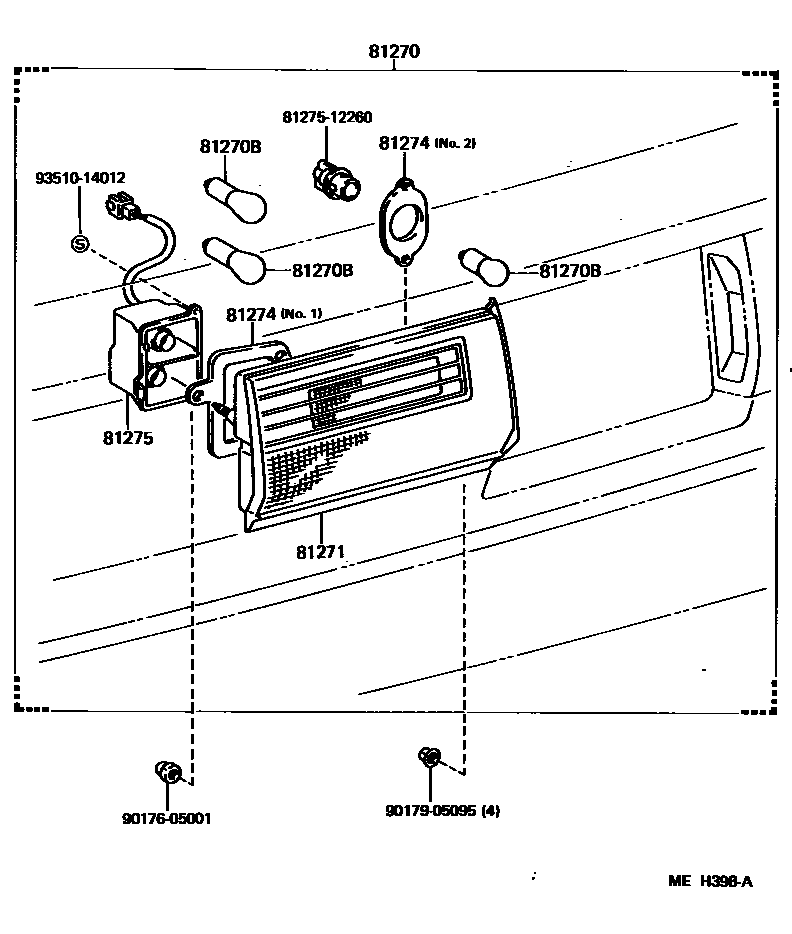

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-32090iSV21..SED198608-198710

RH

main81270-32130×2iSV21..WG198608-198710

main81690-32070iSV21..SED198608-198710

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iSV21198608-198710

12V 7.5W,12V 7.5W(LICENSE)

main90981-12018×2iSV2#,VZV21..SED198710-198808

12V 27/8W

main99132-11270×2iSV21..SED198608-198710

12V 27W,12V 27W(BACK)

81271LENS, LICENSE PLATE LAMP

main81271-10141×2iSV21,VZV21..WG198710-198808

main81271-32090iSV21..SED198608-198710

RH

main81691-32070iSV21..SED198608-198710

LH

81274GASKET, LICENSE PLATE LAMP BODY

main81272-32060×2iSV21..SED198608-198710

NO.1

main81274-32060×2iSV2#,VZV21..SED198710-198808

NO.2

main81274-32130×2iSV21,VZV21..WG198710-198808

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-32090iSV21..SED198608-198710

RH

main81695-32070iSV21..SED198608-198710

LH

8127512260SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12260

9017605001

main90176-05001

9017905095

main90179-05095

9351014012

main93510-14012

9 parts on this diagram · 2 diagrams in section
