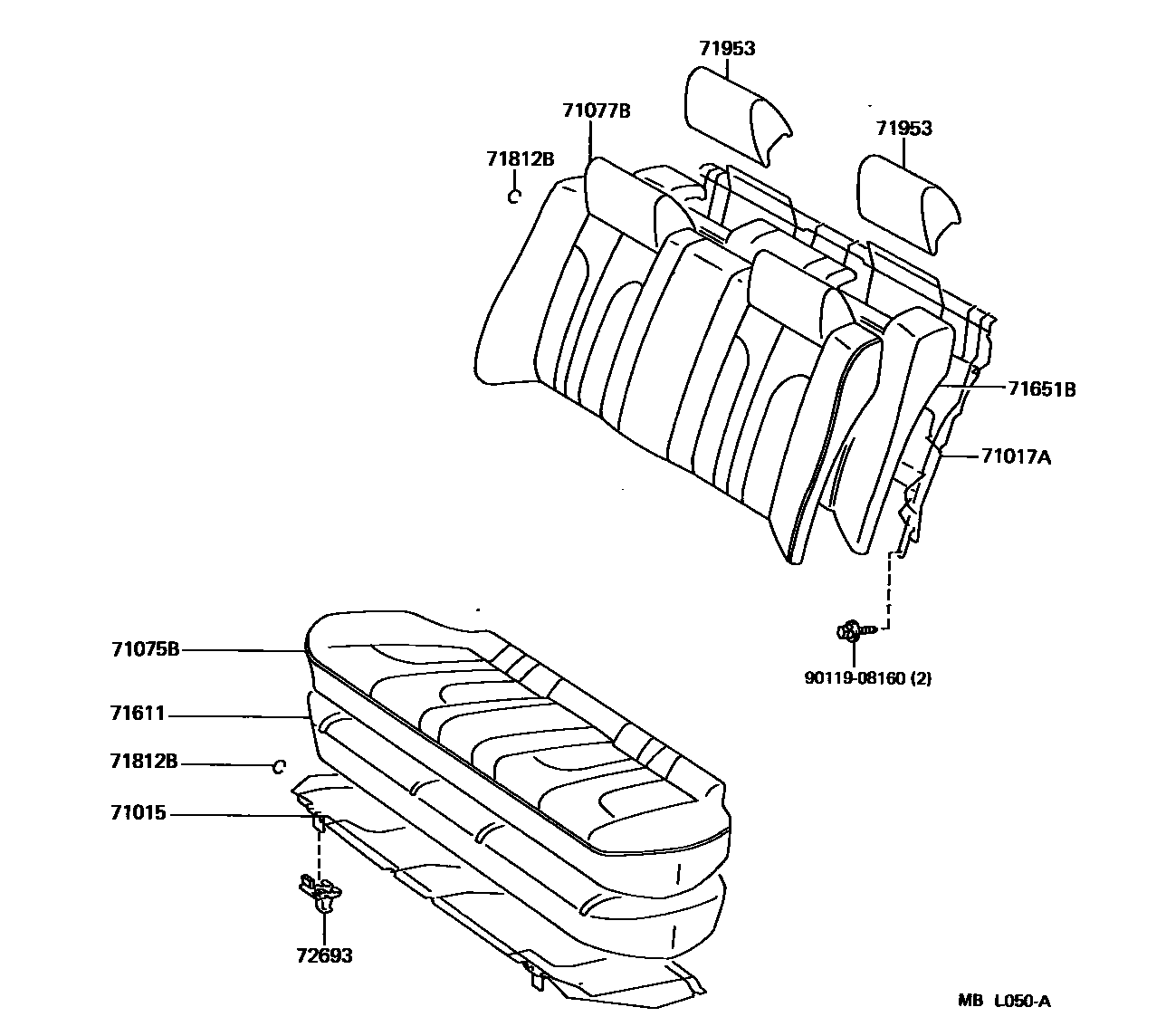

REAR SEAT & SEAT TRACK
71015FRAME SUB-ASSY, REAR SEAT CUSHION
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71017AFRAME SUB-ASSY, REAR SEATBACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
FB,MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
FB,BLUE,DARK BLUE,TRIM8#
FB,BEIGE,DARK BEIGE,TRIM4#
FB,MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
FB,BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
FB,MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
FB,BLUE,DARK BLUE,TRIM8#
FB,BEIGE,DARK BEIGE,TRIM4#
LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#
LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
BASE GRADE,FB,MAROON,MAROON,TRIM3#
BASE GRADE,FB,GRAY,MEDIUM GRAY,TRIM1#
BASE GRADE,FB,BLUE,DARK BLUE,TRIM8#
BASE GRADE,FB,BEIGE,DARK BEIGE,TRIM4#
MAROON,TRIM3#
FB,GRAY,MEDIUM GRAY,TRIM1#
FB,BLUE,DARK BLUE,TRIM8#
FB,BEIGE,DARK BEIGE,TRIM4#
FB,MAROON,MAROON,TRIM3#
FB,GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
FB,BEIGE,DARK BEIGE,TRIM4#
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71812BCLIP(FOR REAR SEAT CUSHION COVER)
71953PAD, REAR SEAT HEADREST
RH
LH
72693HOOK, REAR SEAT CUSHION LOCK
9011908160
main90119-08160
11 parts on this diagram · 3 diagrams in section
