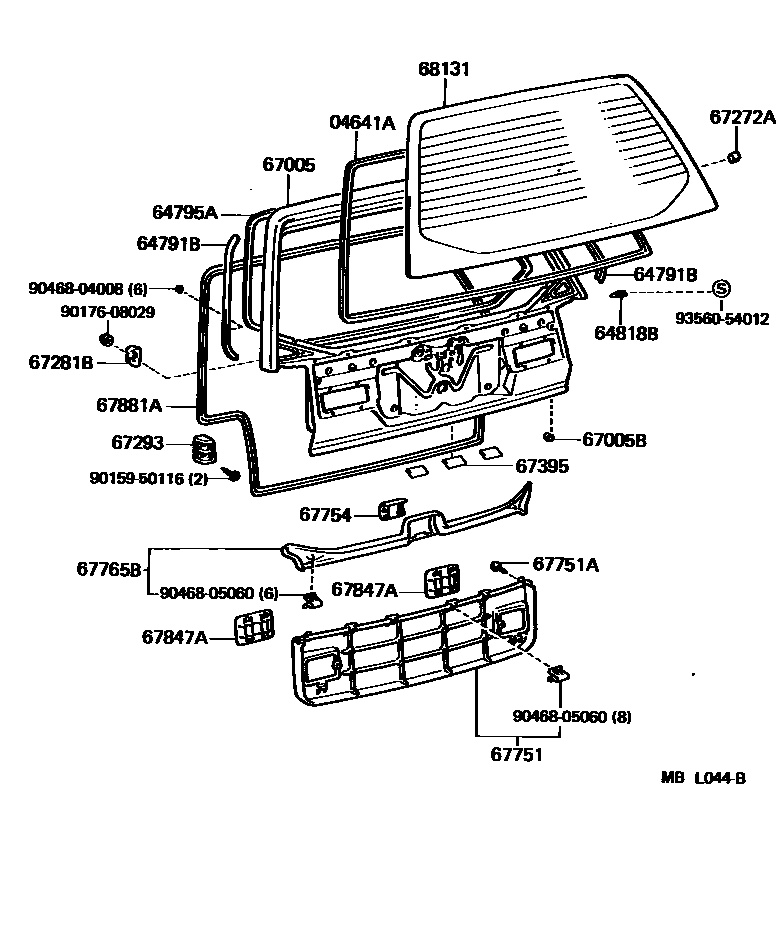

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-30040iSV21,VZV21..WG198710-198808

64791BCOVER, BACK DOOR TRIM

main64791-32010-02iSV21..WG..USA198608-198710

RH,MAROON,MAROON,TRIM3#

main64791-32010-03iSV21..WG198608-198710

RH,GRAY,MEDIUM GRAY,TRIM1#

main64791-32010-04iSV21,VZV21..WG198710-198808

DARK BLUE,TRIM8#,RH

main64791-32010-05iSV21..WG198608-198710

RH,BEIGE,DARK BEIGE,TRIM4#

main64792-32010-02iSV21..WG..USA198608-198710

LH,MAROON,MAROON,TRIM3#

main64792-32010-03iSV21,VZV21..WG198710-198808

MEDIUM GRAY,TRIM1#,LH

main64792-32010-04iSV21..WG198608-198710

LH,BLUE,DARK BLUE,TRIM8#

main64792-32010-05iSV21..WG198608-198710

LH,BEIGE,DARK BEIGE,TRIM4#

64795ATRIM, BACK WINDOW OPENING

main64795-32010-02iSV21,VZV21..WG..USA198710-198808

MAROON,TRIM3#

main64795-32010-03iSV21..WG198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main64795-32010-04iSV21,VZV21..WG198710-198808

DARK BLUE,TRIM8#

main64795-32010-05iSV21,VZV21..WG198710-198808

DARK BEIGE,TRIM4#

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-32010×2iSV21..WG198608-198710

67005PANEL SUB-ASSY, BACK DOOR

main67005-32160iSV21..WG198608-198710

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-11003×2iSV21..WG198608-198710

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-32010×5iSV21..WG198608-198710

67281BSTOPPER, BACK DOOR, LOWER

main67281-32020×2iSV21..WG198608-198710

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-32020iSV21,VZV21..WG198710-198808

RH

main67294-32020iSV21,VZV21..WG198710-198808

LH

67395PROTECTOR, BACK DOOR, LOWER

main67395-32010×3iSV21,VZV21..WG198710-198808

67751BOARD, BACK DOOR TRIM

main67750-32010-02iSV21..WG..LE..USA198608-198710

MAROON,MAROON,TRIM3#

main67750-32010-03iSV21..WG..LE198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main67750-32010-04iSV21..WG..LE198608-198710

BLUE,DARK BLUE,TRIM8#

main67750-32010-05iSV21..WG..LE198608-198710

BEIGE,DARK BEIGE,TRIM4#

main67750-32010-13iSV21,VZV21..WG..LE198710-198808

MEDIUM GRAY,TRIM1#

main67750-32010-14iSV21,VZV21..WG..LE198710-198808

DARK BLUE,TRIM8#

main67750-32010-15iSV21,VZV21..WG..LE198710-198808

DARK BEIGE,TRIM4#

main67751-32010-02iSV21,VZV21..WG..DX..USA198710-198808

MAROON,TRIM3#

sub67750-32020

main67751-32010-03iSV21..WG..DX198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub67750-32020

main67751-32010-04iSV21,VZV21..WG..DX198710-198808

DARK BLUE,TRIM8#

sub67750-32020

main67751-32010-05iSV21..WG..DX198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub67750-32020

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-06017-22×6iSV21..WG..USA198608-198710

MAROON,MAROON,TRIM3#

main90467-06017-49×6iSV21..WG198608-198710

BEIGE,DARK BEIGE,TRIM4#

main90467-06017-54×6iSV21,VZV21..WG198710-198808

DARK BLUE,TRIM8#

main90467-06017-59×6iSV21,VZV21..WG198710-198808

MEDIUM GRAY,TRIM1#

67754MOULDING, BACK DOOR TRIM

main67754-32010-02iSV21,VZV21..WG..USA198710-198808

MAROON,TRIM3#

main67754-32010-03iSV21,VZV21..WG198710-198808

MEDIUM GRAY,TRIM1#

main67754-32010-04iSV21,VZV21..WG198710-198808

DARK BLUE,TRIM8#

main67754-32010-05iSV21,VZV21..WG198710-198808

DARK BEIGE,TRIM4#

67765BCOVER, BACK DOOR TRIM, UPPER

main67765-32020-02iSV21,VZV21..WG..USA198710-198808

MAROON,TRIM3#

main67765-32020-03iSV21..WG198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main67765-32020-04iSV21,VZV21..WG198710-198808

DARK BLUE,TRIM8#

main67765-32020-05iSV21..WG198608-198710

BEIGE,DARK BEIGE,TRIM4#

67847ACOVER, BACK DOOR SERVICE HOLE

main67805-32010-02iSV21,VZV21..WG..LE..USA198710-198808

MAROON,TRIM3#,RH

main67805-32010-03iSV21..WG..LE198608-198710

RH,GRAY,MEDIUM GRAY,TRIM1#

main67805-32010-04iSV21..WG..LE198608-198710

RH,BLUE,DARK BLUE,TRIM8#

main67805-32010-05iSV21..WG..LE198608-198710

RH,BEIGE,DARK BEIGE,TRIM4#

main67805-32010-13iSV21,VZV21..WG..LE198710-198808

MEDIUM GRAY,TRIM1#,RH

main67805-32010-14iSV21,VZV21..WG..LE198710-198808

DARK BLUE,TRIM8#,RH

main67805-32010-15iSV21,VZV21..WG..LE198710-198808

DARK BEIGE,TRIM4#,RH

main67806-32010-02iSV21,VZV21..WG..LE..USA198710-198808

MAROON,TRIM3#,LH

main67806-32010-03iSV21..WG..LE198608-198710

LH,GRAY,MEDIUM GRAY,TRIM1#

main67806-32010-04iSV21..WG..LE198608-198710

LH,BLUE,DARK BLUE,TRIM8#

main67806-32010-05iSV21..WG..LE198608-198710

LH,BEIGE,DARK BEIGE,TRIM4#

main67806-32010-13iSV21,VZV21..WG..LE198710-198808

MEDIUM GRAY,TRIM1#,LH

main67806-32010-14iSV21,VZV21..WG..LE198710-198808

DARK BLUE,TRIM8#,LH

main67806-32010-15iSV21,VZV21..WG..LE198710-198808

DARK BEIGE,TRIM4#,LH

main67847-32020-02iSV21,VZV21..WG..DX..USA198710-198803

MAROON,TRIM3#,RH

main67847-32020-03iSV21,VZV21..WG..DX198710-198803

MEDIUM GRAY,TRIM1#,RH

main67847-32020-04iSV21,VZV21..WG..DX198710-198803

DARK BLUE,TRIM8#,RH

main67847-32020-05iSV21..WG..DX198608-198710

RH,BEIGE,DARK BEIGE,TRIM4#

main67847-32030-02iSV21,VZV21..WG..DX..USA198803-198808

MAROON,TRIM1#,RH

main67847-32030-03iSV21,VZV21..WG..DX198803-198808

MEDIUM GRAY,TRIM1#,RH

main67847-32030-04iSV21,VZV21..WG..DX198803-198808

DARK BLUE,TRIM8#,RH

main67847-32030-05iSV21,VZV21..WG..DX198803-198808

DARK BEIGE,TRIM4#,RH

main67848-32020-02iSV21,VZV21..WG..DX..USA198710-198803

MAROON,TRIM3#,LH

main67848-32020-03iSV21,VZV21..WG..DX198710-198803

MEDIUM GRAY,TRIM1#,LH

main67848-32020-04iSV21,VZV21..WG..DX198710-198803

DARK BLUE,TRIM8#,LH

main67848-32020-05iSV21,VZV21..WG..DX198710-198803

DARK BEIGE,TRIM4#,LH

main67848-32030-02iSV21,VZV21..WG..DX..USA198803-198808

MAROON,TRIM3#,LH

main67848-32030-03iSV21,VZV21..WG..DX198803-198808

MEDIUM GRAY,TRIM1#,LH

main67848-32030-04iSV21,VZV21..WG..DX198803-198808

DARK BLUE,TRIM8#,LH

main67848-32030-05iSV21,VZV21..WG..DX198803-198808

DARK BEIGE,TRIM4#,LH

67881AWEATHERSTRIP, BACK DOOR

main67881-32030iSV21..WG198608-198710

68131GLASS, BACK DOOR

main68131-32090iSV21..WG198608-198710

*EHTT,T=3.5,*EHTT,T=3.5

main68131-32110iSV21..WG..LE198608-198710

*EHTT,T=3.5,BRONZE,BRONZE,*EHT,T=3.5

9015950116

main90159-50116

9017608029

main90176-08029

9046804008

main90468-04008

9046805060

main90468-05060

9356054012

main93560-54012

22 parts on this diagram · 1 diagram in section
