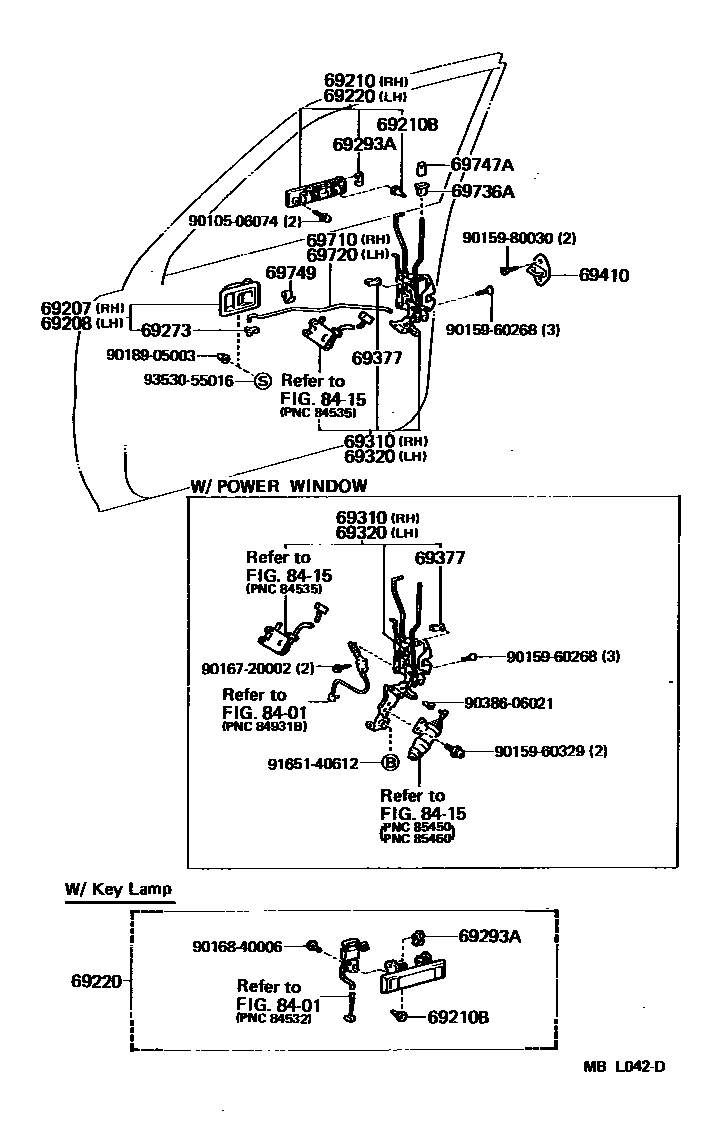

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32020-02iSV2#,VZV21..(DX,STD)..USA198710-198808

MAROON,TRIM3#

main69205-32020-03iSV21..DX,STD198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main69205-32020-04iSV21..DX,STD198608-198710

BLUE,DARK BLUE,TRIM8#

main69205-32020-05iSV21..DX,STD198608-198710

BEIGE,DARK BEIGE,TRIM4#

main69205-32030-02iSV2#,VZV21..LE..USA198710-198808

MAROON,TRIM3#

main69205-32030-03iSV2#,VZV21..LE198710-198808

MEDIUM GRAY,TRIM1#

main69205-32030-04iSV21..LE198608-198710

BLUE,DARK BLUE,TRIM8#

main69205-32030-05iSV21..LE198608-198710

BEIGE,DARK BEIGE,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32020-02iSV2#,VZV21..(DX,STD)..USA198710-198808

MAROON,TRIM3#

main69206-32020-03iSV21..DX,STD198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main69206-32020-04iSV21..DX,STD198608-198710

BLUE,DARK BLUE,TRIM8#

main69206-32020-05iSV21..DX,STD198608-198710

BEIGE,DARK BEIGE,TRIM4#

main69206-32030-02iSV2#,VZV21..LE..USA198710-198808

MAROON,TRIM3#

main69206-32030-03iSV21..LE198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main69206-32030-04iSV21..LE198608-198710

BLUE,DARK BLUE,TRIM8#

main69206-32030-05iSV21..LE198608-198710

BEIGE,DARK BEIGE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32030iSV21198608-198710

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×4iSV21198608-198710

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32030iSV21..DX,STD198608-198710

main69220-32040iSV21..LE198608-198710

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iSV21..DX,STD198608-198710

RH

main69759-24010iSV2#,VZV21..LE198710-198808

RH

main69759-24020iSV2#,VZV21..LE198710-198808

LH

main69759-24070iSV21..DX,STD198608-198710

LH

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iSV21198608-198710

RH

main69293-12060iSV21198608-198710

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-32140iSV21..USA198608-198708

W/O *PW

main69310-32141iSV21..USA198708-198710

W/O *PW

main69310-32170iSV21..LE..USA198608-198708

W/*PW

main69310-32171iSV2#,VZV21..(DX,LE)..USA198710-198808

W(POWER WINDOW)

main69310-32180iSV21..CND198608-198708

W/O *PW

main69310-32181iSV21..CND198708-198710

W/O *PW

main69310-32230iSV21..LE..CND198608-198708

W/*PW

main69310-32231iSV21..(DX,LE)..CND198708-198710

W/*PW

69320LOCK ASSY, FRONT DOOR, LH

main69320-32120iSV21..USA198608-198708

W/O *PW

main69320-32121iSV2#,VZV21..USA198710-198808

main69320-32160iSV21..LE..USA198608-198708

W/*PW

main69320-32161iSV2#,VZV21..(DX,LE)..USA198710-198808

W(POWER WINDOW)

main69320-32170iSV21..CND198608-198708

W/O *PW

main69320-32171iSV21..CND198708-198710

W/O *PW

main69320-32220iSV21..LE..CND198608-198708

W/*PW

main69320-32240iSV2#,VZV21..(DX,LE)..CND198710-198808

W(POWER WINDOW)

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24050iSV21198608-198710

LH

main69759-24060iSV21198608-198710

RH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iSV2#,VZV21198710-198808

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-32030iSV21198608-198710

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-32020iSV21198608-198710

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030×2iSV2#,VZV21198710-198808

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-32020-02×2iSV21..USA198608-198710

MAROON,MAROON,TRIM3#

main69741-32020-03×2iSV2#,VZV21198710-198808

MEDIUM GRAY,TRIM1#

main69741-32020-04×2iSV21198608-198710

BLUE,DARK BLUE,TRIM8#

main69741-32020-05×2iSV21198608-198710

BEIGE,DARK BEIGE,TRIM4#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30020×2iSV21198608-198710

8401

8415

9010506074

main90105-06074

9015960268

main90159-60268

9015960329

main90159-60329

9015980030

main90159-80030

9016720002

main90167-20002

9016840006

main90168-40006

9018905003

main90189-05003

9038606021

main90386-06021

9165140612

main91651-40612

9353055016

main93530-55016

28 parts on this diagram · 2 diagrams in section
