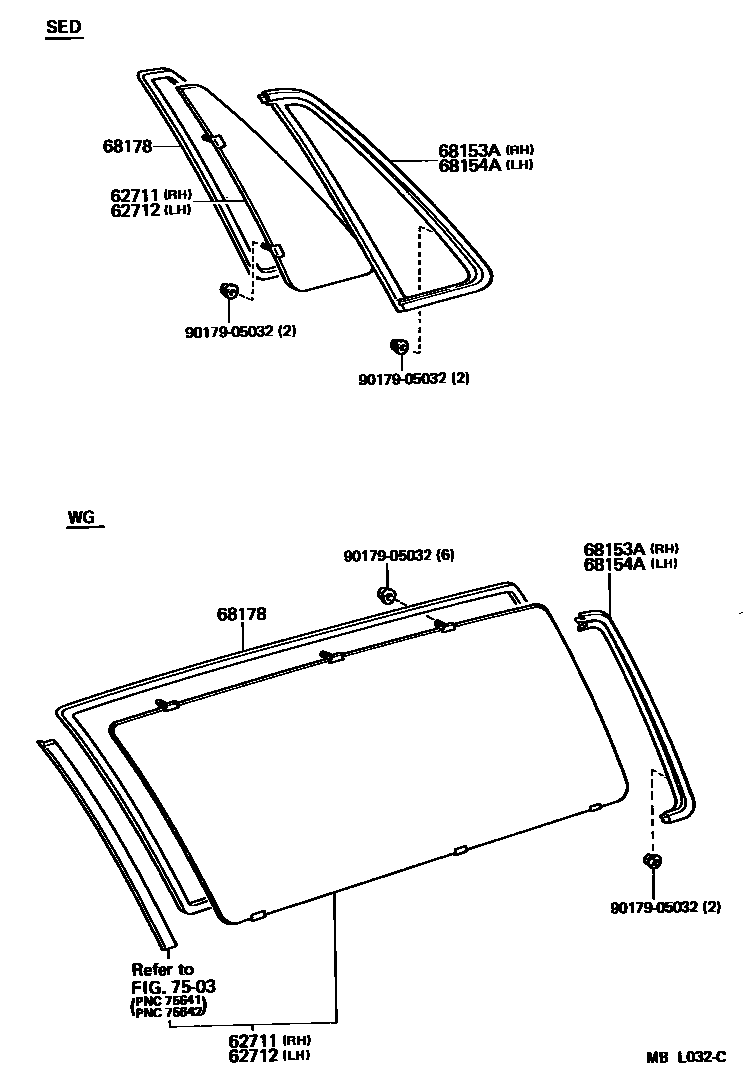

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62710-32010iSV21,VZV21..WG198710-198808

*TT,T=3.5

main62710-32020iSV21..WG..LE198608-198710

*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5,W/O ANTENNA

main62710-32040iSV21..WG..LE198608-198710

*TT,T=3.5,*TT,T=3.5,W/ANTENNA

main62710-32050iSV21..WG..LE198608-198710

*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5,W/ANTENNA

main62711-32180iSV21..SED198608-198710

*TT.T=3.5,*TT,T=3.5

main62711-32210iSV21..SED..LE198608-198710

*TT.T=3.5,BRONZE,BRONZE,*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-32190iSV21..SED..LE198608-198710

*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5

main62712-32240iSV2#,VZV21..SED198710-198808

*TT,T=3.5

main62720-32010iSV21..WG198608-198710

*TT,T=3.5,*TT,T=3.5

main62720-32020iSV21..WG..LE198608-198710

*TT,T=3.5,BRONZE,BRONZE,*TT,T=3.5

68153AMOULDING, QUARTER WINDOW NO.2 GLASS, RH

main68153-32040iSV2#,VZV21..SED198710-198808

main68153-32050iSV21..WG198608-198710

68154AMOULDING, QUARTER WINDOW NO.2 GLASS, LH

main68154-32040iSV2#,VZV21..SED198710-198808

main68154-32050iSV21..WG198608-198710

68178SEAL, QUARTER WINDOW NO.2 GLASS

main68177-32030×2iSV21198608-198710

7503SIDE MOULDING

→ Go to FIG 75-03

9017905032

main90179-05032

7 parts on this diagram · 1 diagram in section
