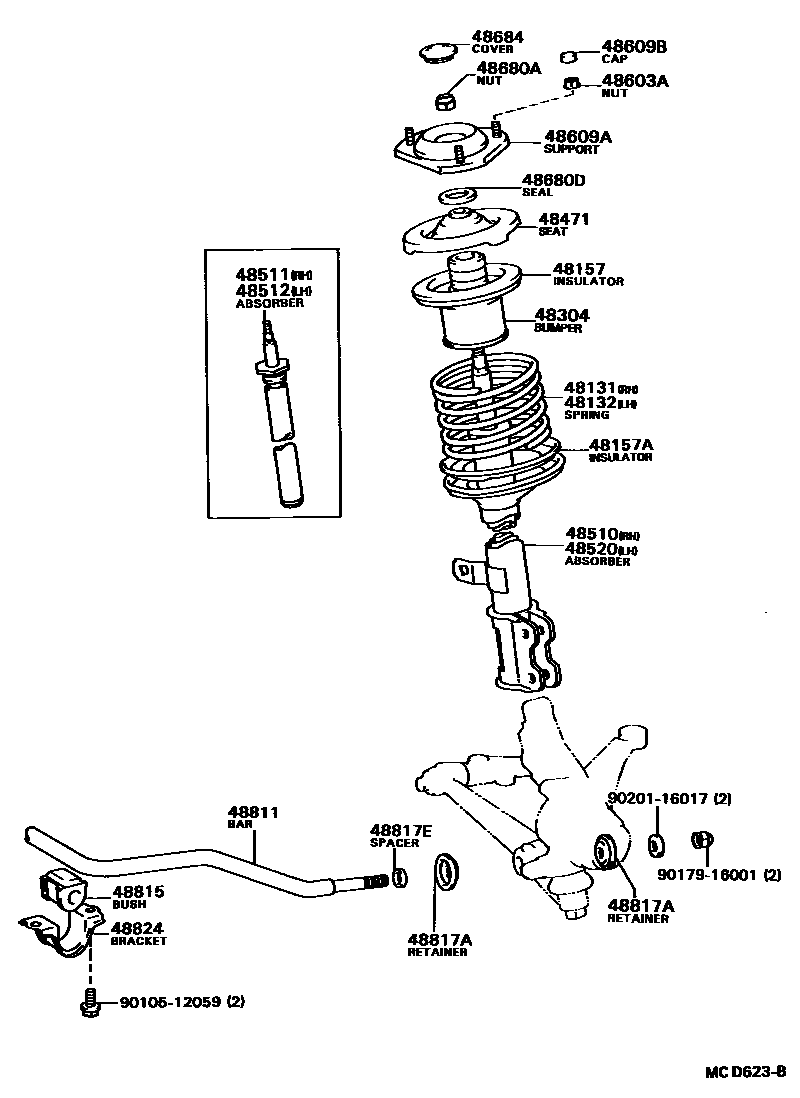

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-32530iSV21..5F198608-198802

main48131-32550iSV21..4FC..STD198708-198802

main48131-32560iSV21..4FC..(DX,LE)198608-198802

main48131-32750iSV25198710-198808

sub48131-32510

main48131-32780iVZV21..5F198802-198808

main48131-32800iVZV21..4FC198802-198808

main48131-32820iSV21..4FC..(DX,LE)198802-198808

48132SPRING, FRONT COIL, LH

main48131-32530iSV21..5F198608-198802

main48131-32550iSV21..4FC..STD198708-198802

main48131-32560iSV21..4FC..STD198802-198808

main48131-32750iSV25198710-198808

sub48131-32510

main48131-32780iVZV21..5F198802-198808

main48131-32800iVZV21..4FC198802-198808

main48131-32820iSV21..4FC..(DX,LE)198802-198808

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-32020×2iSV21198608-198710

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-32020×2iSV21198608-198710

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-32030×2iSV21198608-198710

48471SEAT, FRONT SPRING, UPPER

main48044-32020×2iSV2#,VZV21198710-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-32080iSV21198608-198801

sub90561-17002

main48510-32081iSV21198801-198808

sub48510-32082

main48510-32130iSV25198710-198801

sub90561-17002

main48510-32131iSV25198801-198808

sub48510-32132

main48510-32140iVZV21198802-198808

sub48510-32141

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-32030iSV21198807-198808

main48511-32060iSV25198807-198808

main48511-32070iVZV21198807-198808

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-32030iSV21198807-198808

main48511-32060iSV25198807-198808

main48511-32070iVZV21198807-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-32080iSV21198608-198801

sub90561-17002

main48520-32081iSV21198801-198808

sub48520-32082

main48520-32130iSV25198710-198801

sub90561-17002

main48520-32131iSV25198801-198808

sub48520-32132

main48520-32140iVZV21198802-198808

sub48520-32141

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095×6iSV21198608-198710

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-32030×2iSV21198608-198710

48609BCAP(FOR FRONT SUSPENSION SUPPORT)

main90339-15002×4iSV21198608-198710

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400×2iSV21198608-198710

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049×2iSV21198608-198710

48684COVER, BEARING DUST

main48684-32010×2iSV21198608-198710

48811BAR, STABILIZER, FRONT

main48811-32090iSV21198608-198808

sub48811-32200

main48811-32120iSV25,VZV21198710-198808

sub48811-32220

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-32040×2iSV21198608-198808

sub48815-32110

main48815-32060×2iSV25,VZV21198710-198808

sub48815-32120

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02102×2iSV21198608-198710

LH,SILVER

sub90948-02117

main90948-02106×2iSV21198608-198710

RH,SILVER

sub90948-02118

48817ESPACER(FOR STABILIZER BAR)

main90560-16005×2iSV21198608-198710

48824BRACKET, STABILIZER, FRONT

main48824-32030×2iSV21198608-198710

sub48824-32040

9010512059

main90105-12059

9017916001

main90179-16001

9020116017

main90201-16017

24 parts on this diagram · 1 diagram in section
