Toyota 281420 — SPEEDOMETER DRIVEN GEAR (ATM)

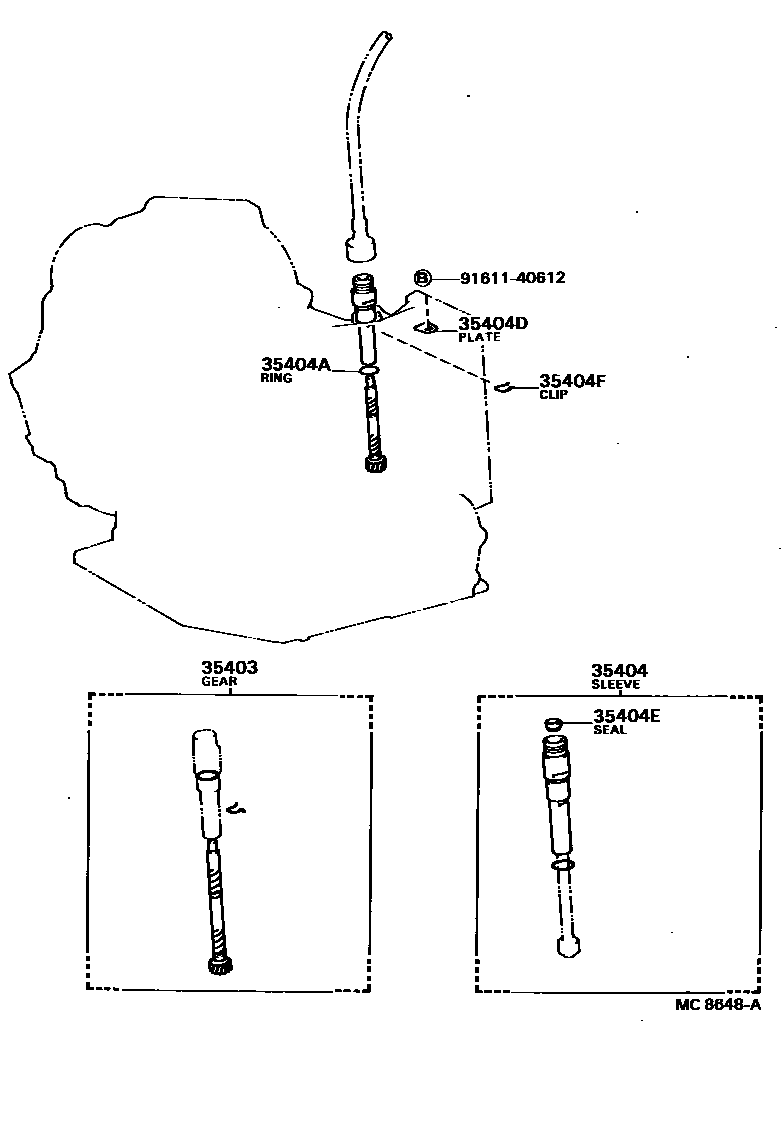

Parts diagram

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

9161140612

7 parts on this diagram · 2 diagrams in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota 281420

This section contains 12 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota 281420. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM), CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE), PLATE, SPEEDOMETER SLEEVE LOCK (ATM).
