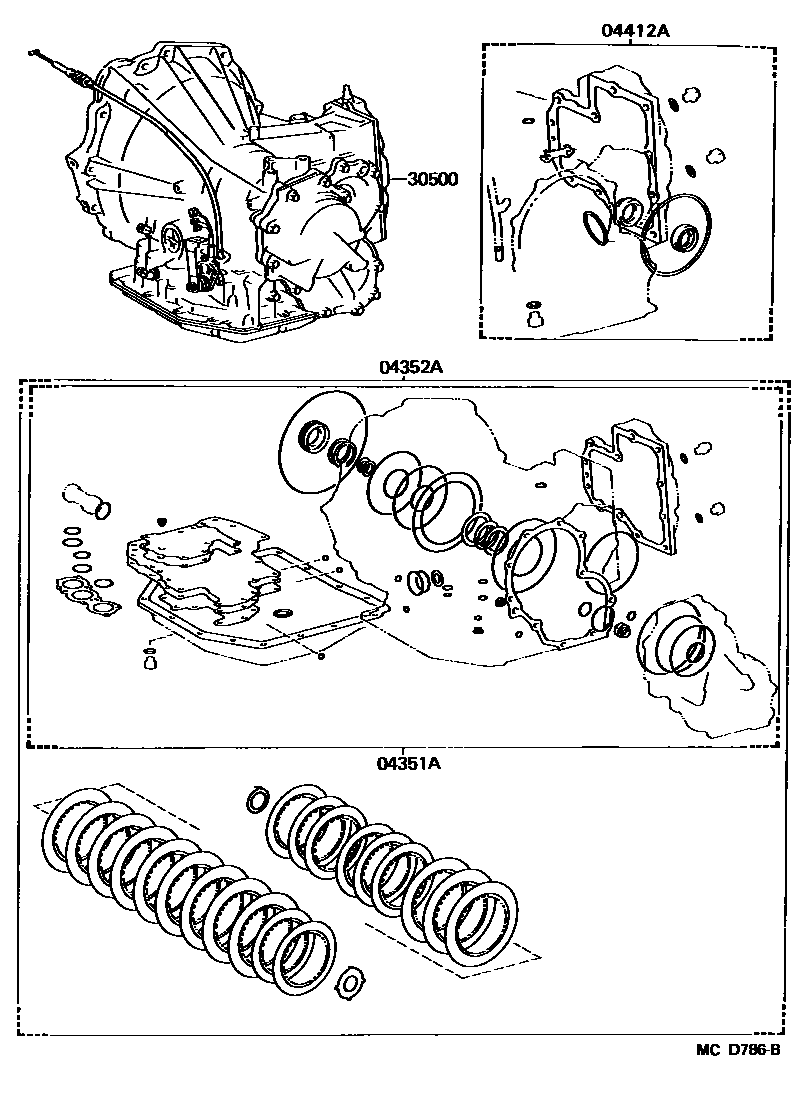

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20080iSV21..4FC..STD198710-198808

main04351-20090iSV21..4FC198608-198710

main04351-32050iVZV21..4FC198802-198808

sub04351-32051

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-20020iSV21..4FC..STD198710-198808

main04352-32030iSV21..4FC..(DX,LE)198710-198808

main04352-32050iVZV21..4FC198802-198808

sub04352-32051

04412AGASKET KIT, DIFFERENTIAL CARRIER(ATM)

main04412-16020iSV21..4FC..(DX,LE)198710-198808

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32220iSV21..4FC198608-198704

main30500-32320iSV21..4FC..(DX,LE)198704-198808

sub30500-32321

sub90105-10203

sub91642-H0822

main30500-32330iSV21..4FC..STD198708-198808

sub30500-32331

sub90105-10203

sub91642-H0822

main30500-32460iVZV21..4FC198802-198808

sub30500-32461

sub12321-62090

sub35103-32042

sub90119-12250

sub91619-61265

4 parts on this diagram · 2 diagrams in section
