V-BELT

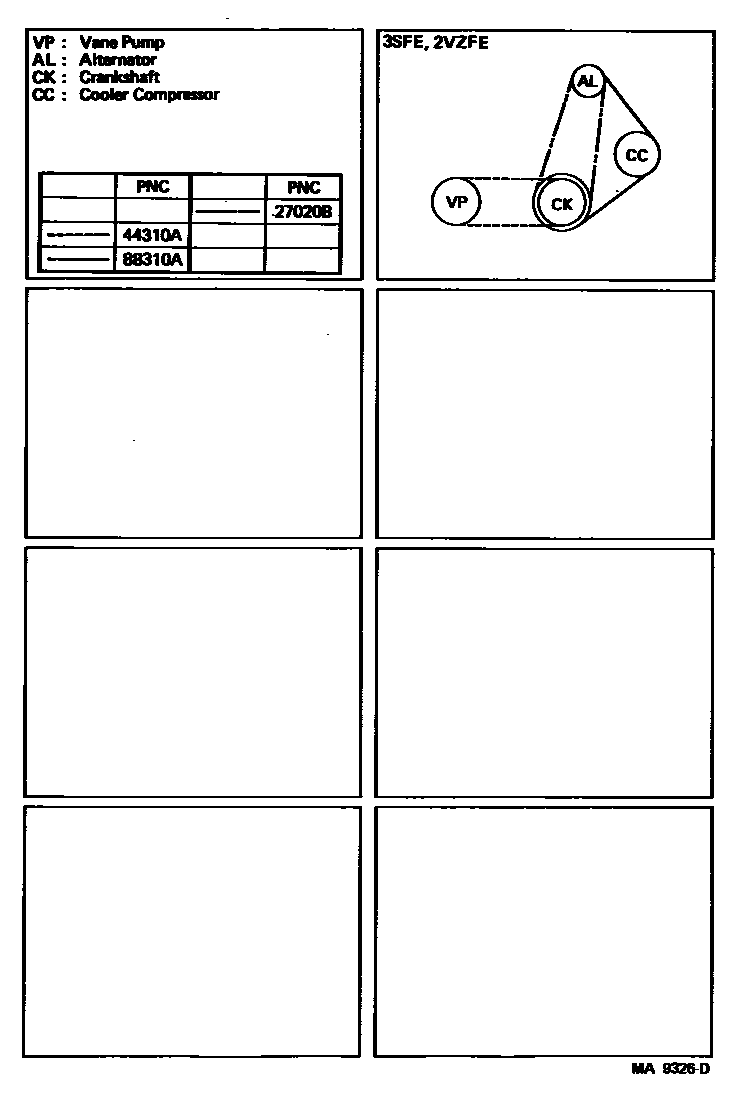

Parts diagram
27020BBELT, V(FOR ALTERNATOR)
main90916-02219i198803-198808
sub90916-02295
main99365-01000i198608-198710
sub99365-81000
main99366-50940i198802-198808
sub99366-80940
44310ABELT, V(FOR VANE PUMP)
main90916-02177i198802-198808
main99363-50760i198710-198808
sub99363-80760
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main99365-51110i198608-198710
sub99365-81110
main99366-01050i198802-198808
W(A/C-MANUAL A/C)
sub90916-02373

3 parts on this diagram · 1 diagram in section
