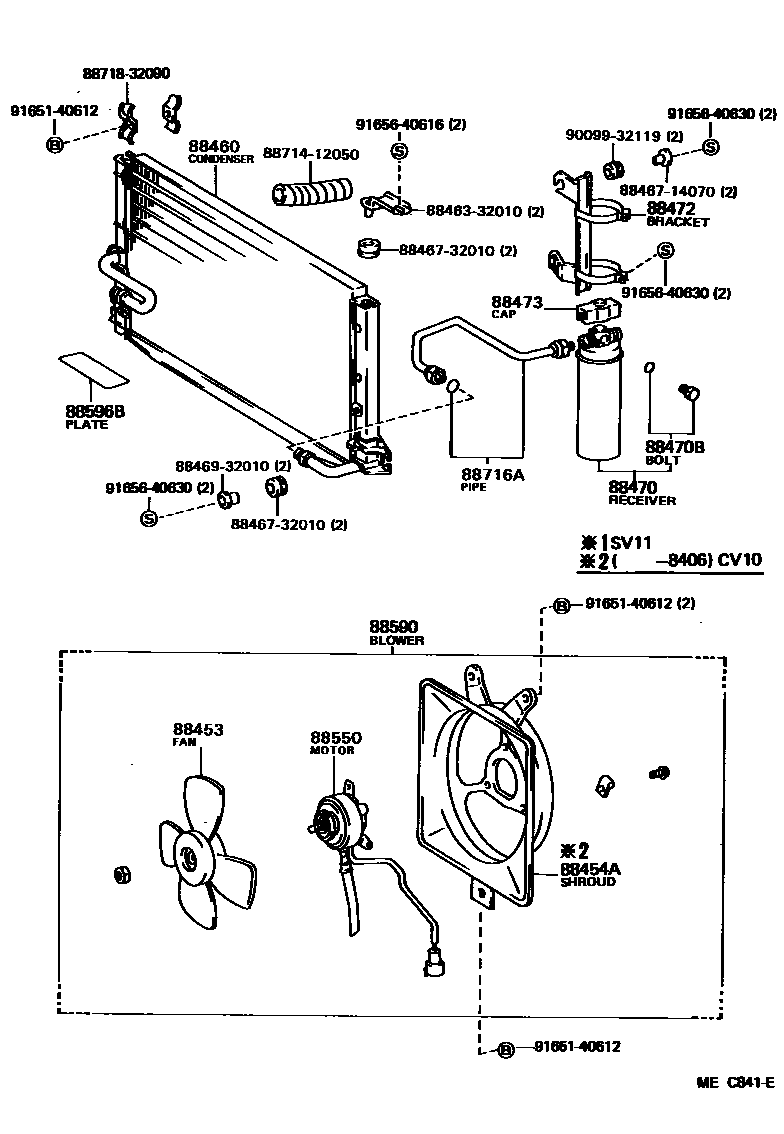

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88453FAN, COOLING (FOR CONDENSER)

main88453-32010iCV10,SV11198301-198408

main88453-32020iSV11198408-198607

88454ASHROUD, FAN

main16712-64040iCV10198308-198408

main88454-32030iSV11198408-198607

88460CONDENSER ASSY, COOLER

main88460-32020iCV10,SV11198301-198607

main88460-32030iCV1#198410-198607

88470RECEIVER & DRYER ASSY, COOLER

main88470-12061iCV10,SV11198301-198405

main88470-14010iCV1#,SV11198405-198607

88470BBOLT, FUSE

main88475-12020iCV1#,SV11198405-198607

88472BRACKET, RECEIVER TANK, NO.1

main88473-32010iCV1#,SV11198301-198607

88473CAP, COOLER RECEIVER TANK

main88894-12111iCV10,SV11198301-198408

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64020iCV10198308-198408

main88550-32010iSV11198301-198408

main88550-32020iSV11198408-198607

88590BLOWER ASSY, W/SHROUD

main88590-32040iSV11198301-198408

main88590-32050iSV11198408-198607

88596BPLATE, CAUTION, NO.1

main88596-12010iCV1#,SV11198408-198607

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-32120iCV1#,SV11198301-198607

8846332010BRACKET, COOLER CONDENSER, NO.1

main88463-32010

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8846732010CUSHION, COOLER CONDENSER, NO.1

main88467-32010

8846932010SWITCH, PRESSURE CONTROL

main88469-32010

8871412050HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12050

8871832090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32090

9009932119

main90099-32119

9165140612

main91651-40612

9165640616

main91656-40616

9165640630

main91656-40630

21 parts on this diagram · 2 diagrams in section
