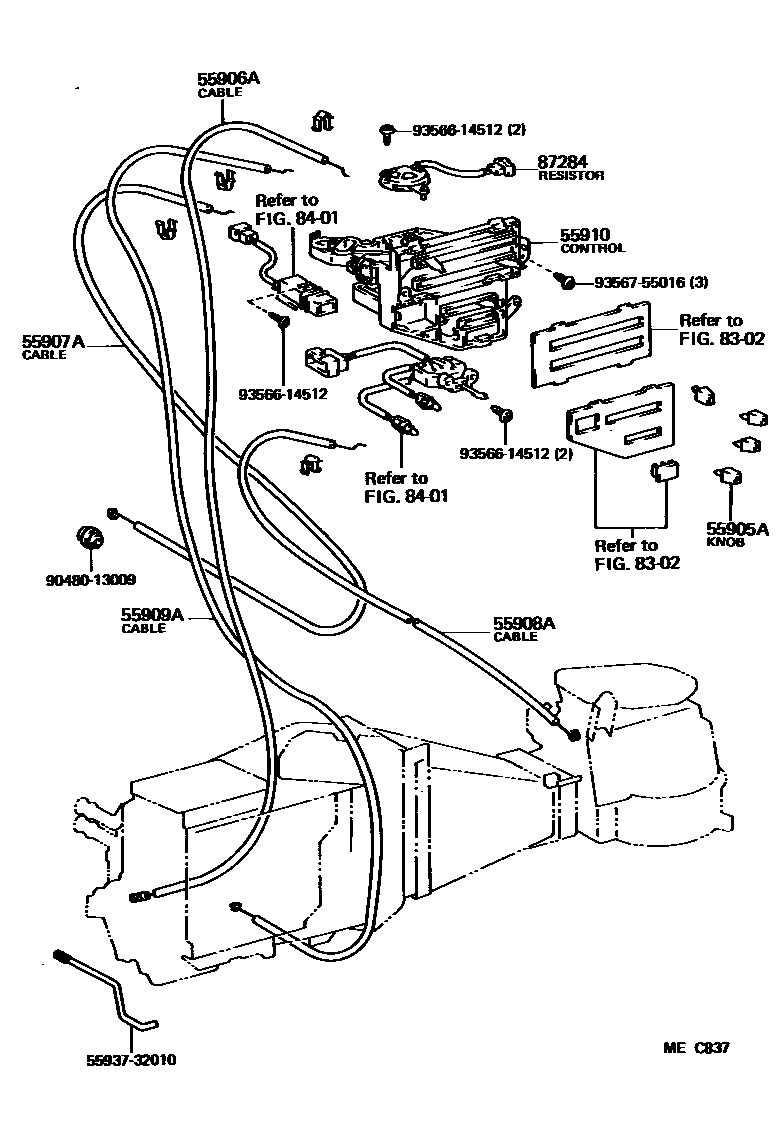

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905AKNOB, HEATER CONTROL

main55905-22070×4iCV1#,SV11198301-198607

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-32020iCV1#,SV11198301-198607

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-32020iCV1#,SV11198301-198607

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-32020iCV1#,SV11198301-198607

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-32030iCV1#,SV11198301-198607

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-32020iCV1#,SV11198301-198607

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-32030iCV1#,SV11198301-198607

W/COOLER

5593732010KNOB, HEATER CONTROL LEVER

main55937-32010

9048013009

main90480-13009

9356614512

main93566-14512

9356755016

main93567-55016

13 parts on this diagram · 2 diagrams in section
