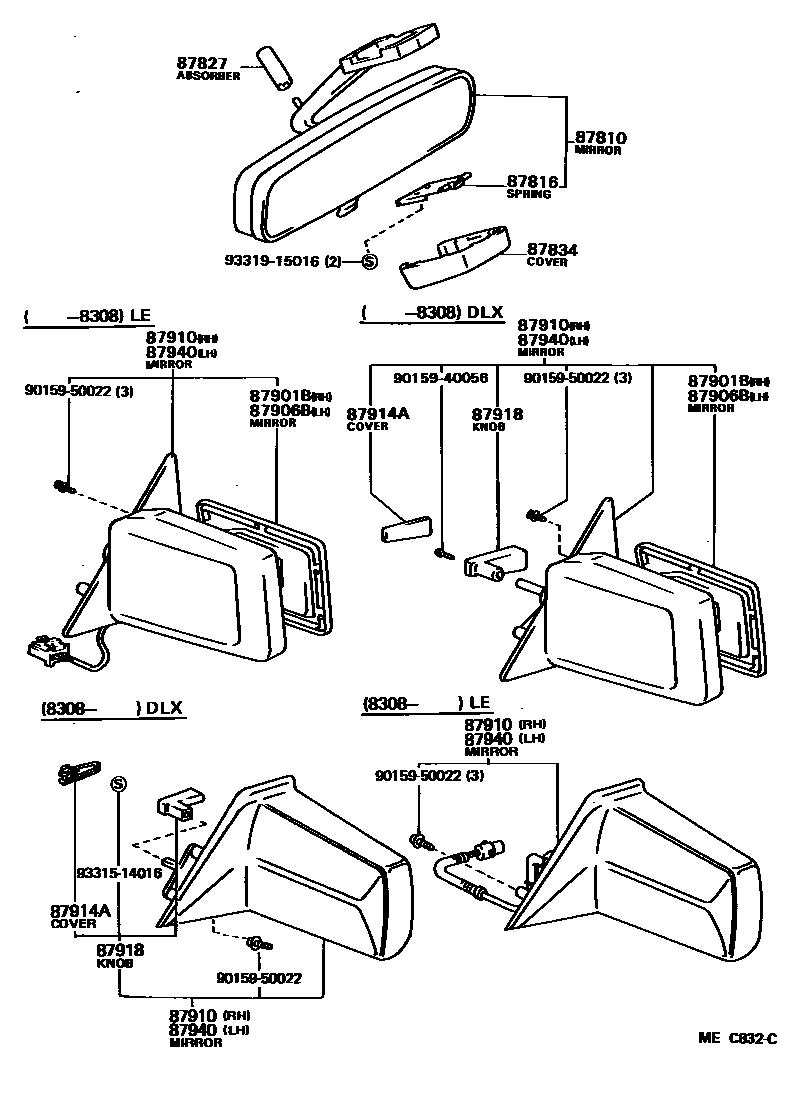

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-32010-03iCV10,SV11198301-198408

DARK GRAY,GRAY,TRIM1#,8#

main87810-32010-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

main87810-32010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

main87810-32010-06iCV10,SV11198301-198408

DARK BROWN,BROWN,TRIM4#

main87810-32010-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#,8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-32010iCV1#,SV11198301-198607

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iCV1#,SV11198301-198607

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-33iCV1#,SV11198301-198607

GRAY,GRAY,TRIM1#,8#

main87834-20080-35iCV1#,SV11198301-198607

BEIGE,BEIGE,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-32060iSV11..DLX..CND198301-198308

main87908-32070iSV11..LE198301-198308

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-32030iSV11..DLX198301-198308

main87909-32040iSV11..LE198301-198308

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-32050iSV11..DLX..CND198301-198308

main87910-32060iSV11..LE198301-198308

main87910-32100iSV11..LE198308-198607

main87910-32110iSV11..DLX..CND198308-198408

87914ACOVER, OUTER MIRROR KNOB

main87914-14010×2iCV1#,SV11..DLX198308-198607

main87914-16010×2iSV11..DLX198301-198308

87918KNOB, CONTROL OUTER MIRROR

main87918-14050×2iSV11..DLX198301-198308

main87918-19015×2iCV1#,SV11..DLX198308-198607

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-32050iSV11..DLX198301-198308

main87940-32060iSV11..LE198301-198308

main87940-32100iSV11..LE198308-198607

main87940-32110iCV1#,SV11..DLX198308-198607

9015940056

main90159-40056

9015950022

main90159-50022

9331514016

main93315-14016

9331915016

main93319-15016

14 parts on this diagram · 1 diagram in section
