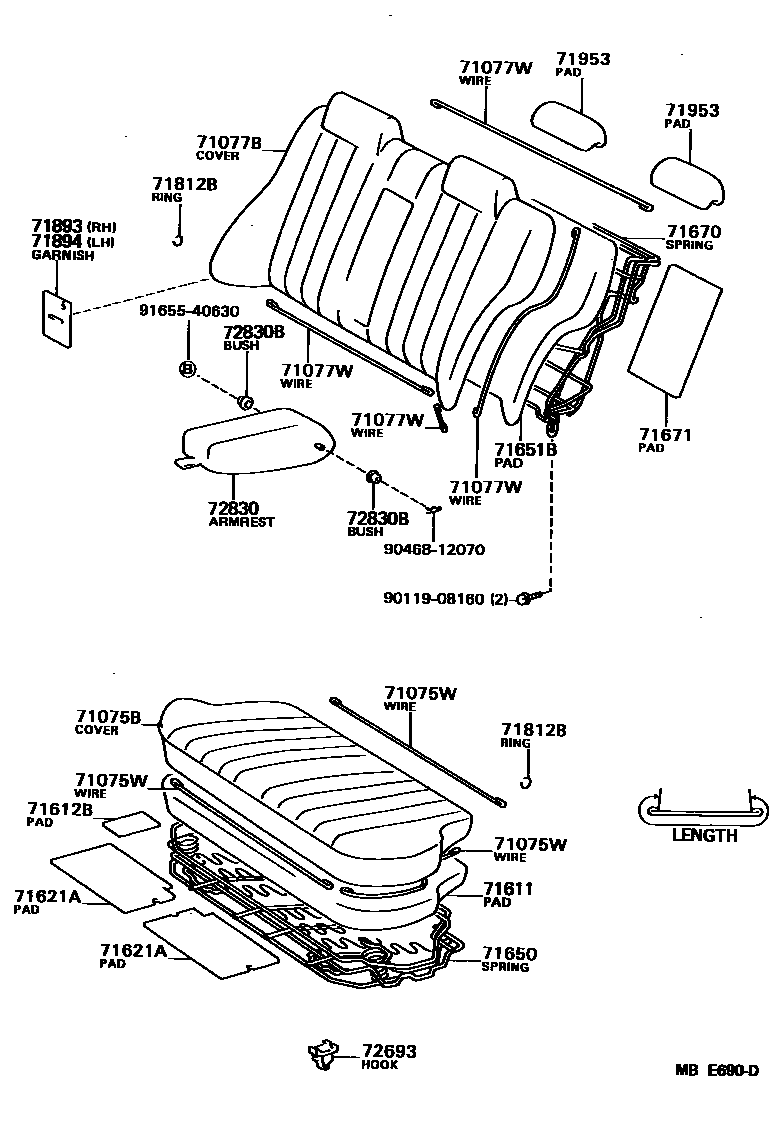

REAR SEAT & SEAT TRACK

0001 1 0002 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-32060-03iSV11..DLX..4D198301-198308

FB,GRAY,GRAY,TRIM1#

main71075-32060-04iSV11..DLX..4D198301-198308

FB,BLUE,BLUE,TRIM8#

main71075-32060-05iSV11..DLX..4D198301-198308

FB,BEIGE,BEIGE,TRIM4#

main71075-32061-03iCV10,SV11..DLX..4D198308-198408

FB,GRAY,GRAY,TRIM1#

main71075-32061-04iCV10,SV11..DLX..4D198308-198408

FB,BLUE,BLUE,TRIM8#

main71075-32061-05iCV10,SV11..DLX..4D198308-198408

FB,BEIGE,BEIGE,TRIM4#

main71075-32070-03iSV11..DLX..5D198301-198308

FB,GRAY,GRAY,TRIM1#

main71075-32070-04iSV11..DLX..5D198301-198308

FB,BLUE,BLUE,TRIM8#

main71075-32070-05iSV11..DLX..5D198301-198308

FB,BEIGE,BEIGE,TRIM4#

main71075-32071-03iSV11..DLX..5D198308-198408

FB,GRAY,GRAY,TRIM1#

main71075-32071-04iSV11..DLX..5D198308-198408

FB,BLUE,BLUE,TRIM8#

main71075-32071-05iSV11..DLX..5D198308-198408

FB,BEIGE,BEIGE,TRIM4#

main71075-32120-03iSV11..LE..4D198301-198408

FB,GRAY,GRAY,TRIM1#

main71075-32120-04iSV11..LE..4D198301-198308

FB,BLUE,BLUE,TRIM8#

main71075-32120-05iSV11..LE..4D198301-198408

FB,BEIGE,BEIGE,TRIM4#

main71075-32120-14iSV11..LE..4D198308-198408

FB,BLUE,BLUE,TRIM8#

main71075-32140-03iSV11..LE..5D198301-198408

FB,GRAY,GRAY,TRIM1#

main71075-32140-04iSV11..LE..5D198301-198308

FB,BLUE,BLUE,TRIM8#

main71075-32140-05iSV11..LE..5D198301-198408

FB,BEIGE,BEIGE,TRIM4#

main71075-32140-14iSV11..LE..5D198308-198408

FB,BLUE,BLUE,TRIM8#

main71075-32280-03iCV1#,SV11..DLX..4D198408-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32280-04iCV1#,SV11..DLX..4D198408-198607

FB,BLUE,BLUE,TRIM8#

main71075-32280-05iCV1#,SV11..DLX..4D198408-198607

FB,BEIGE,BEIGE,TRIM4#

main71075-32290-03iSV11..LE..4D198408-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32290-04iSV11..LE..4D198408-198508

FB,BLUE,BLUE,TRIM8#

main71075-32290-05iSV11..LE..4D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71075-32291-03iSV11..LE..4D198508-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32291-04iSV11..LE..4D198508-198607

FB,BLUE,BLUE,TRIM8#

main71075-32291-05iSV11..LE..4D198508-198607

FB,BEIGE,BEIGE,TRIM4#

main71075-32350-03iSV11..DLX..5D198408-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32350-04iSV11..DLX..5D198408-198607

FB,BLUE,BLUE,TRIM8#

main71075-32350-05iSV11..DLX..5D198408-198607

FB,BEIGE,BEIGE,TRIM4#

main71075-32360-03iSV11..LE..5D198408-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32360-04iSV11..LE..5D198408-198508

FB,BLUE,BLUE,TRIM8#

main71075-32360-05iSV11..LE..5D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71075-32361-03iSV11..LE..5D198508-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71075-32361-04iSV11..LE..5D198508-198607

FB,BLUE,BLUE,TRIM8#

main71075-32361-05iSV11..LE..5D198508-198607

FB,BEIGE,BEIGE,TRIM4#

71075WWIRE, REAR SEAT CUSHION COVER

main90580-20091iCV1#,SV11..4D198301-198607

WD=2.0,L=1130

main90580-20097iSV11..5D198301-198607

WD=2.0,L=1080

main90580-20106iCV1#,SV11..4D198301-198607

WD=2.0,L=530

main90580-20132iCV1#,SV11..4D198301-198607

WD=2.0,L=1050

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-32130-03iSV11..LE..4D198301-198408

FB,GRAY,GRAY,TRIM1#

main71077-32130-04iSV11..LE..4D198301-198308

FB,BLUE,BLUE,TRIM8#

main71077-32130-05iSV11..LE..4D198301-198408

FB,BEIGE,BEIGE,TRIM4#

main71077-32130-14iSV11..LE..4D198308-198408

FB,BLUE,BLUE,TRIM8#

main71077-32190-03iSV11..DLX..4D198301-198308

FB,GRAY,GRAY,TRIM1#

main71077-32190-04iSV11..DLX..4D198301-198308

FB,BLUE,BLUE,TRIM8#

main71077-32190-05iSV11..DLX..4D198301-198308

FB,BEIGE,BEIGE,TRIM4#

main71077-32191-03iCV10,SV11..DLX..4D198308-198408

FB,GRAY,GRAY,TRIM1#

main71077-32191-04iCV10,SV11..DLX..4D198308-198408

FB,BLUE,BLUE,TRIM8#

main71077-32191-05iCV10,SV11..DLX..4D198308-198408

FB,BEIGE,BEIGE,TRIM4#

main71077-32320-03iCV1#,SV11..DLX..4D198408-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32320-04iCV1#,SV11..DLX..4D198408-198607

FB,BLUE,BLUE,TRIM8#

main71077-32320-05iCV1#,SV11..DLX..4D198408-198607

FB,BEIGE,BEIGE,TRIM4#

main71077-32330-03iSV11..LE..4D198408-198508

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32330-04iSV11..LE..4D198408-198508

FB,BLUE,BLUE,TRIM8#

main71077-32330-05iSV11..LE..4D198408-198508

FB,BEIGE,BEIGE,TRIM4#

main71077-32331-03iSV11..LE..4D198508-198607

FB,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71077-32331-04iSV11..LE..4D198508-198607

FB,BLUE,BLUE,TRIM8#

main71077-32331-05iSV11..LE..4D198508-198607

FB,BEIGE,BEIGE,TRIM4#

71077WWIRE, REAR SEATBACK COVER

main90580-20005iCV1#,SV11..4D198301-198607

WD=2.0,L=1320

main90580-20012iSV11..5D198301-198607

WD=2.0,L=420

main90580-20032iSV11..5D198301-198607

WD=2.0,L=350

main90580-20035iCV1#,SV11..4D198301-198607

WD=2.0,L=150

main90580-20051iSV11..5D198301-198607

WD=2.0,L=550

main90580-20063iCV1#,SV11..4D198301-198607

WD=2.0,L=1110

main90580-20106iSV11..5D198301-198607

WD=2.0,L=530

main90580-20108iCV1#,SV11..4D198301-198607

WD=2.0,L=580

71611PAD, REAR SEAT CUSHION

main71611-32020iCV10,SV11..4D198301-198408

main71611-32040iSV11..5D198301-198408

main71611-32060iCV1#,SV11..4D198408-198512

main71611-32080iSV11..5D198408-198607

main71611-32100iCV11,SV11..4D198512-198607

71612BPAD, REAR SEAT CUSHION, B

main71524-20010iCV1#,SV11..4D198301-198607

71621APAD, REAR SEAT CUSHION SILENCER, A

main71621-32020iCV1#,SV11..4D198301-198607

71650SPRING ASSY, REAR SEAT CUSHION

main71650-32010iCV1#,SV11..4D198301-198607

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-32010iCV1#,SV11..DLX..4D198406-198607

main71507-32020iCV10,SV11..DLX..4D198301-198406

main71507-32030iSV11..LE..4D198301-198408

main71651-32040iSV11..LE..4D198408-198607

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-32010iCV1#,SV11..DLX..4D198408-198607

main71670-32020iCV10,SV11..DLX..4D198301-198408

main71670-32030iSV11..LE..4D198301-198408

main71670-32050iSV11..LE..4D198408-198607

71671PAD, REAR SEATBACK SILENCER, A

main71671-22090iSV11..LE..4D198301-198607

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iCV1#,SV11198301-198607

71893GARNISH, REAR SEATBACK SIDE, LOWER RH

main71893-22010iCV1#,SV11..4D198408-198607

71894GARNISH, REAR SEATBACK SIDE, LOWER LH

main71893-22010iCV1#,SV11..4D198408-198607

71953PAD, REAR SEAT HEADREST

main71953-32010iCV10,SV11..4D198301-198607

main71953-32060iSV11..LE..4D198408-198607

72693HOOK, REAR SEAT CUSHION LOCK

main72693-32010iCV1#,SV11..4D198301-198607

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-32040-03iSV11..LE..4D198301-198408

GRAY,GRAY,TRIM1#

main72830-32040-04iSV11..LE..4D198301-198408

BLUE,BLUE,TRIM8#

main72830-32040-06iSV11..LE..4D198301-198408

BROWN,BROWN,TRIM4#

main72830-32080-03iSV11..LE..4D198408-198508

SHADOW GRAY,SHADOW GRAY,TRIM1#

main72830-32080-04iSV11..LE..4D198408-198508

BLUE,BLUE,TRIM8#

main72830-32080-05iSV11..LE..4D198408-198508

BEIGE,BEIGE,TRIM4#

main72830-32100-03iSV11..LE..4D198508-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main72830-32100-04iSV11..LE..4D198508-198607

BLUE,BLUE,TRIM8#

main72830-32100-05iSV11..LE..4D198508-198607

BEIGE,BEIGE,TRIM4#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-06002iSV11..LE..4D198301-198607

9011908160

main90119-08160

9046812070

main90468-12070

9165540630

main91655-40630

21 parts on this diagram · 2 diagrams in section
