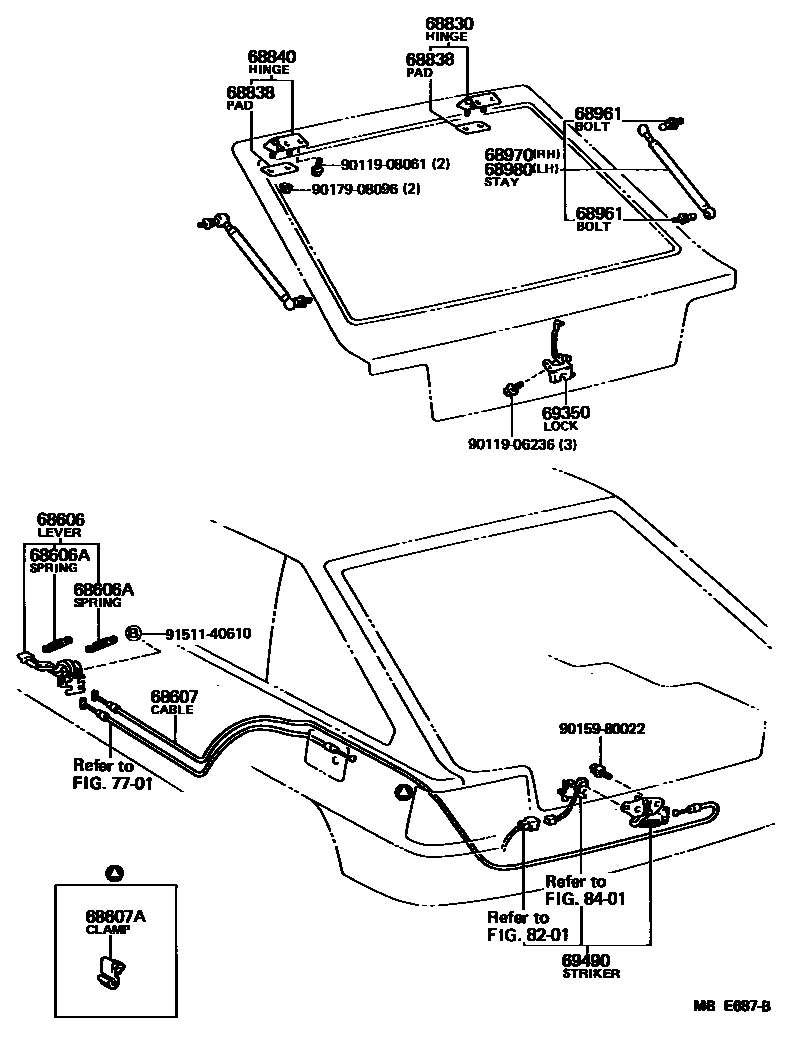

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-32020iSV11..5D198301-198607

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004iSV11..5D198301-198607

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-32070iSV11..5D198301-198607

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iSV11..5D198301-198607

68830HINGE ASSY, BACK DOOR, RH

main68801-16010iSV11..5D198301-198408

main68801-32010iSV11..5D198408-198607

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021iSV11..5D198301-198607

68840HINGE ASSY, BACK DOOR, LH

main68801-16010iSV11..5D198301-198408

main68801-32010iSV11..5D198408-198607

68961BOLT, BACK DOOR STAY

main68961-32010iSV11..5D198301-198508

main68961-32020iSV11..5D198508-198607

68970STAY ASSY, BACK DOOR, RH

main68950-39055iSV11..5D198301-198406

W/O RR WIPER

main68950-39065iSV11..5D198301-198406

W/RR WIPER

main68950-39115iSV11..5D198406-198607

W/O RR WIPER

main68950-39125iSV11..5D198406-198607

W/RR WIPER

68980STAY ASSY, BACK DOOR

main68950-39055iSV11..5D198301-198406

W/O RR WIPER

main68950-39065iSV11..5D198301-198406

W/RR WIPER

main68950-39115iSV11..5D198406-198607

W/O RR WIPER

main68950-39125iSV11..5D198406-198607

W/RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-32010iSV11..5D198301-198607

AISHIN

main69350-32020iSV11..5D198301-198607

SHIROKI

69490STRIKER ASSY, BACK DOOR LOCK

main69430-32030iSV11..5D198301-198607

AISHIN

main69430-32040iSV11..5D198301-198607

SHIROKI

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906236

main90119-06236

9011908061

main90119-08061

9015980022

main90159-80022

9017908096

main90179-08096

9151140610

main91511-40610

20 parts on this diagram · 1 diagram in section
