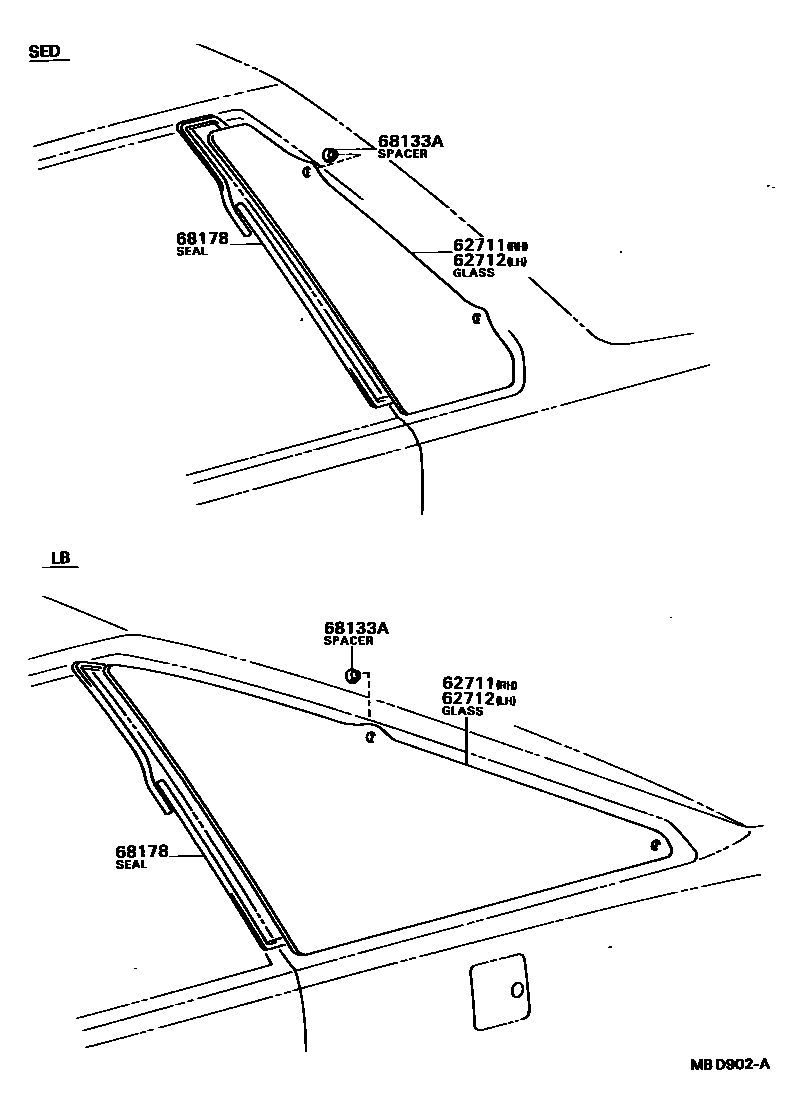

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-32011iCV1#,SV11..4D198408-198607

*TT,T=3.5

main62711-32061iSV11..LE..4D198408-198607

BRONZE,*TT,T=3.5

main62711-32900iCV10,SV11..4D198301-198408

*TT,T=3.5

main62711-32905iSV11..LE..4D198301-198408

BRONZE,*TT,T=3.5

main62711-32906iSV11..5D198301-198607

*TT,T=3.5

main62711-32909iSV11..LE..5D198301-198607

BRONZE,*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-32011iCV1#,SV11..4D198408-198607

*TT,T=3.5

main62712-32061iSV11..LE..4D198408-198607

BRONZE,*TT,T=3.5

main62712-32900iCV10,SV11..4D198301-198408

*TT,T=3.5

main62712-32905iSV11..LE..4D198301-198408

BRONZE,*TT,T=3.5

main62712-32906iSV11..5D198301-198607

*TT,T=3.5

main62712-32909iSV11..LE..5D198301-198607

BRONZE,*TT,T=3.5

68133ASPACER, QUARTER WINDOW NO.2 GLASS

main68137-32010×4iCV1#,SV11198301-198607

68178SEAL, QUARTER WINDOW NO.2 GLASS

main68177-32010×2iCV10,SV11..4D198301-198408

main68177-32020×2iSV11..5D198301-198607

4 parts on this diagram · 1 diagram in section
