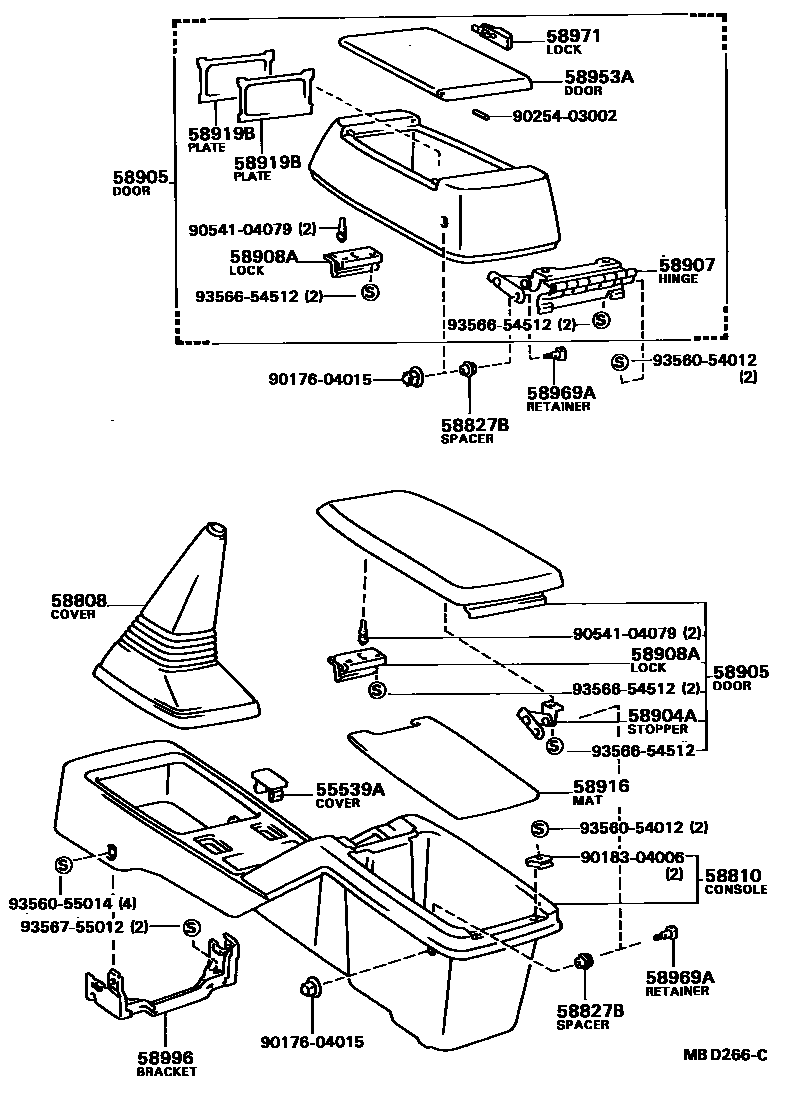

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
58808COVER SUB-ASSY, SHIFTING HOLE
58810CONSOLE ASSY
58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER
58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58919BPLATE, CONSOLE BOX
58953ADOOR, CONSOLE COMPARTMENT, UPPER
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58971LOCK, CONSOLE COMPARTMENT DOOR
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
9017604015
main90176-04015
9018304006
main90183-04006
9025403002
main90254-03002
9054104079
main90541-04079
9356054012
main93560-54012
9356055014
main93560-55014
9356654512
main93566-54512
9356755012
main93567-55012
22 parts on this diagram · 2 diagrams in section
