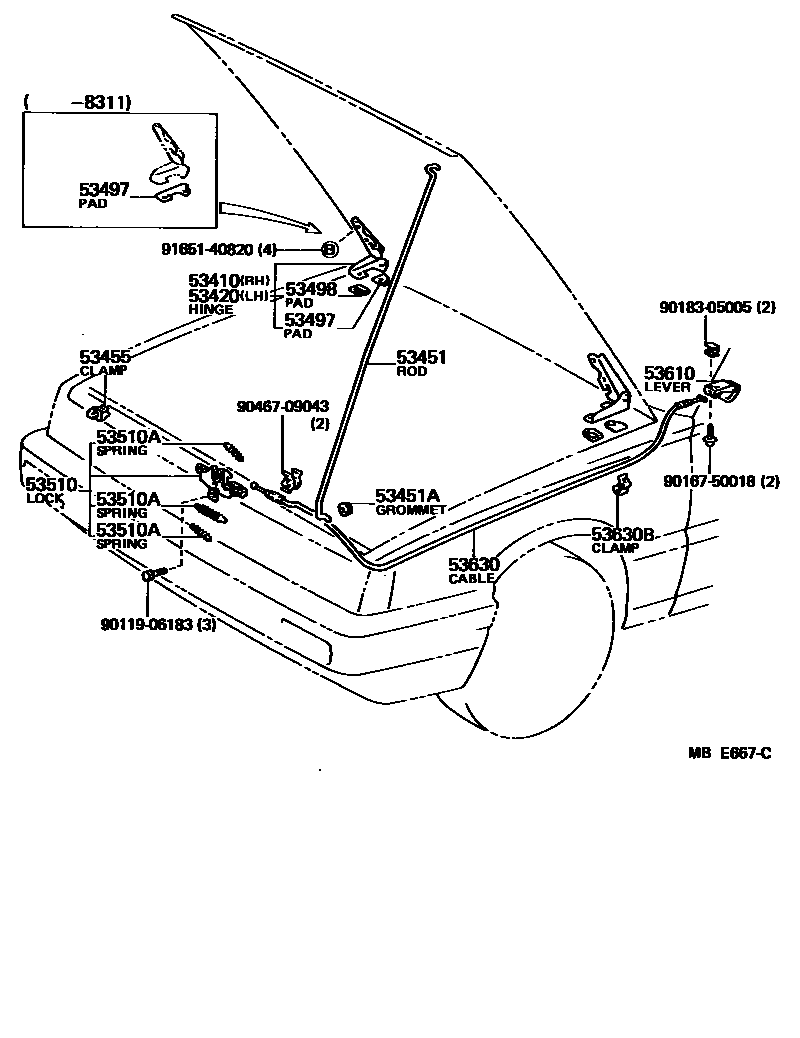

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32010iCV1#,SV11198301-198607

53420HINGE ASSY, HOOD, LH

main53420-32010iCV1#,SV11198301-198607

53451ROD, HOOD SUPPORT

main53451-32010iCV10,SV11198301-198508

main53451-32020iCV11,SV11198508-198607

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iCV1#,SV11198301-198607

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iCV1#,SV11198301-198607

53497PAD, HOOD HINGE, NO.1

main53497-32010×2iCV10,SV11198301-198311

T=1.0

main53497-32020×2iCV10,SV11198301-198311

T=2.0

main53497-32030×2iCV1#,SV11198311-198607

53498PAD, HOOD HINGE, NO.2

main53498-12010×2iCV1#,SV11198311-198607

53510LOCK ASSY, HOOD

main53510-32020iCV1#,SV11198301-198607

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008×2iCV1#,SV11198301-198607

WD=0.9,CW=21.25,WD=0.9,OD=9.0

main90506-20008iCV1#,SV11198301-198607

WD=2.0,CW=17,WD=2.0,OD=15.5

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-14010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

main53601-14010-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

main53601-14010-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

main53601-14010-16iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

main53601-14010-23iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-32030iCV1#,SV11198405-198607

main53630-32040iCV10,SV11198301-198405

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010iCV1#,SV11198301-198607

9011906183

main90119-06183

9016750018

main90167-50018

9018305005

main90183-05005

9046709043

main90467-09043

9165140820

main91651-40820

17 parts on this diagram · 1 diagram in section
