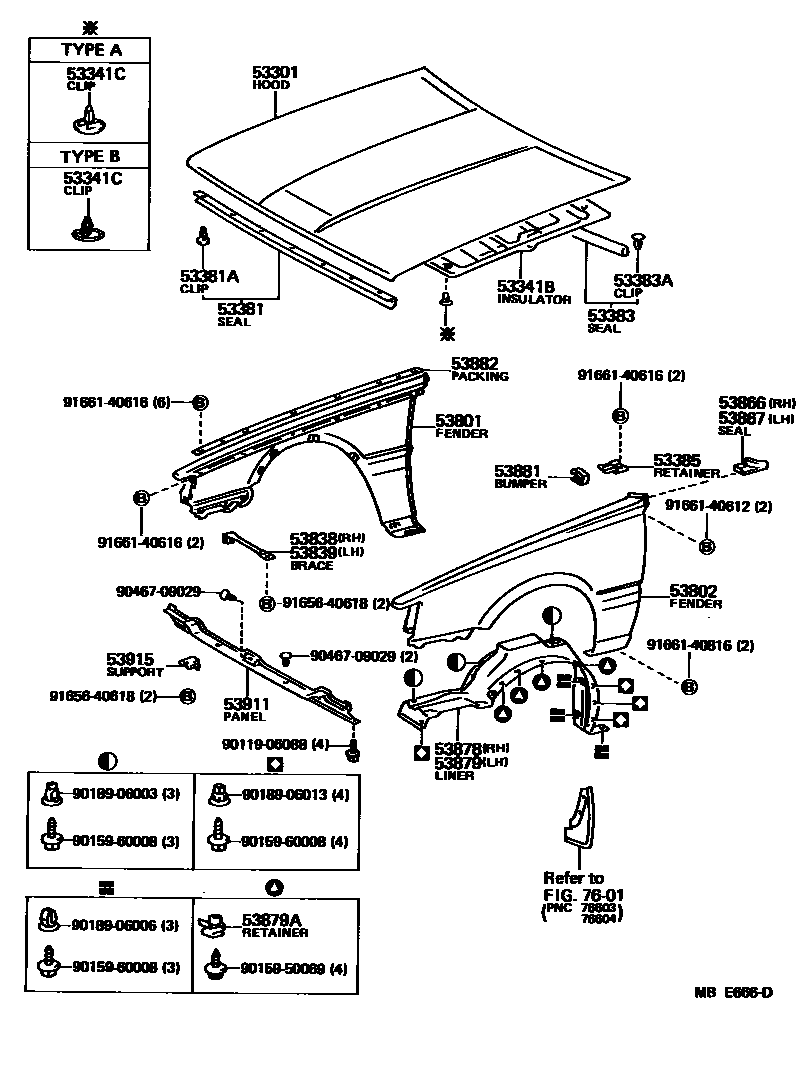

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341CCLIP(FOR HOOD INSULATOR)
TYPE A
TYPE B
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53385RETAINER, HOOD, BUMPER
RH
LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53838BRACE, FRONT FENDER, RH
53839BRACE, FRONT FENDER, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53878LINER, FRONT FENDER, RH
53879LINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53881BUMPER, FENDER TO HOOD
53882PACKING, FRONT FENDER MAIN
53911PANEL, FRONT VALANCE
53915SUPPORT, FRONT VALANCE PANEL
7601
9011906088
main90119-06088
9015950069
main90159-50069
9015960008
main90159-60008
9018906003
main90189-06003
9018906006
main90189-06006
9018906013
main90189-06013
9046709029
main90467-09029
9165640618
main91656-40618
9166140612
main91661-40612
9166140616
main91661-40616
9166140816
main91661-40816
33 parts on this diagram · 1 diagram in section
