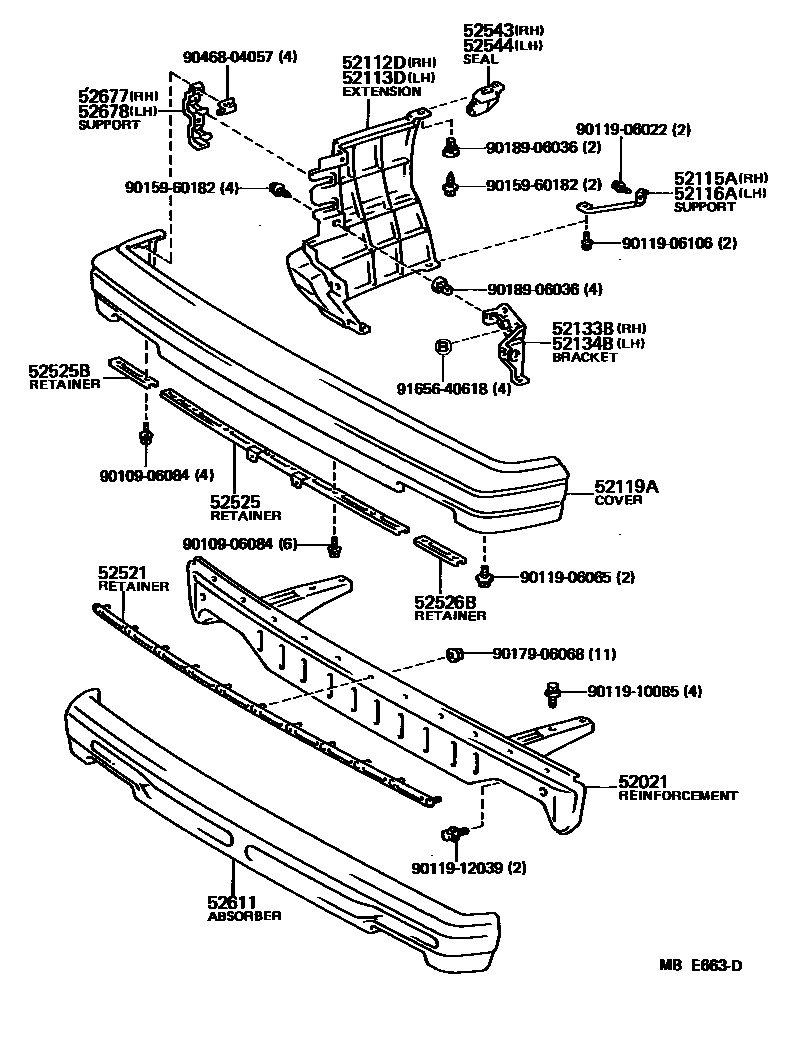

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-32020iCV1#,SV11198301-198607

52112DEXTENSION, FRONT BUMPER, RH

main52112-32010iCV10,SV11198301-198408

main52112-32900iSV11..LE198408-198410

52113DEXTENSION, FRONT BUMPER, LH

main52113-32010iCV10,SV11198301-198408

main52113-32900iSV11..LE198301-198408

TWO TONE

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32010iCV1#,SV11198301-198607

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-32010iCV1#,SV11198301-198607

52119ACOVER, FRONT BUMPER

main52119-32080iCV10,SV11198301-198408

main52119-32900iSV11..LE198301-198408

TWO TONE

52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH

main52133-32020iCV1#,SV11198301-198607

52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH

main52134-32020iCV1#,SV11198301-198607

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-32030iCV1#,SV11198301-198607

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-32010iCV1#,SV11198301-198607

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-32020iCV1#,SV11198301-198607

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52526-32020iCV1#,SV11198301-198607

52543SEAL, FRONT BUMPER SIDE, RH

main52543-32010iCV10,SV11198301-198309

52544SEAL, FRONT BUMPER SIDE, LH

main52544-32010iCV10,SV11198301-198309

52611ABSORBER, FRONT BUMPER ENERGY

main52611-32040iCV1#,SV11198301-198607

52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH

main52677-32010iCV1#,SV11198301-198607

52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH

main52678-32010iCV1#,SV11198301-198607

9010906084

main90109-06084

9011906022

main90119-06022

9011906065

main90119-06065

9011906106

main90119-06106

9011910085

main90119-10085

9011912039

main90119-12039

9015960182

main90159-60182

9017906068

main90179-06068

9018906036

main90189-06036

9046804057

main90468-04057

9165640618

main91656-40618

28 parts on this diagram · 1 diagram in section
